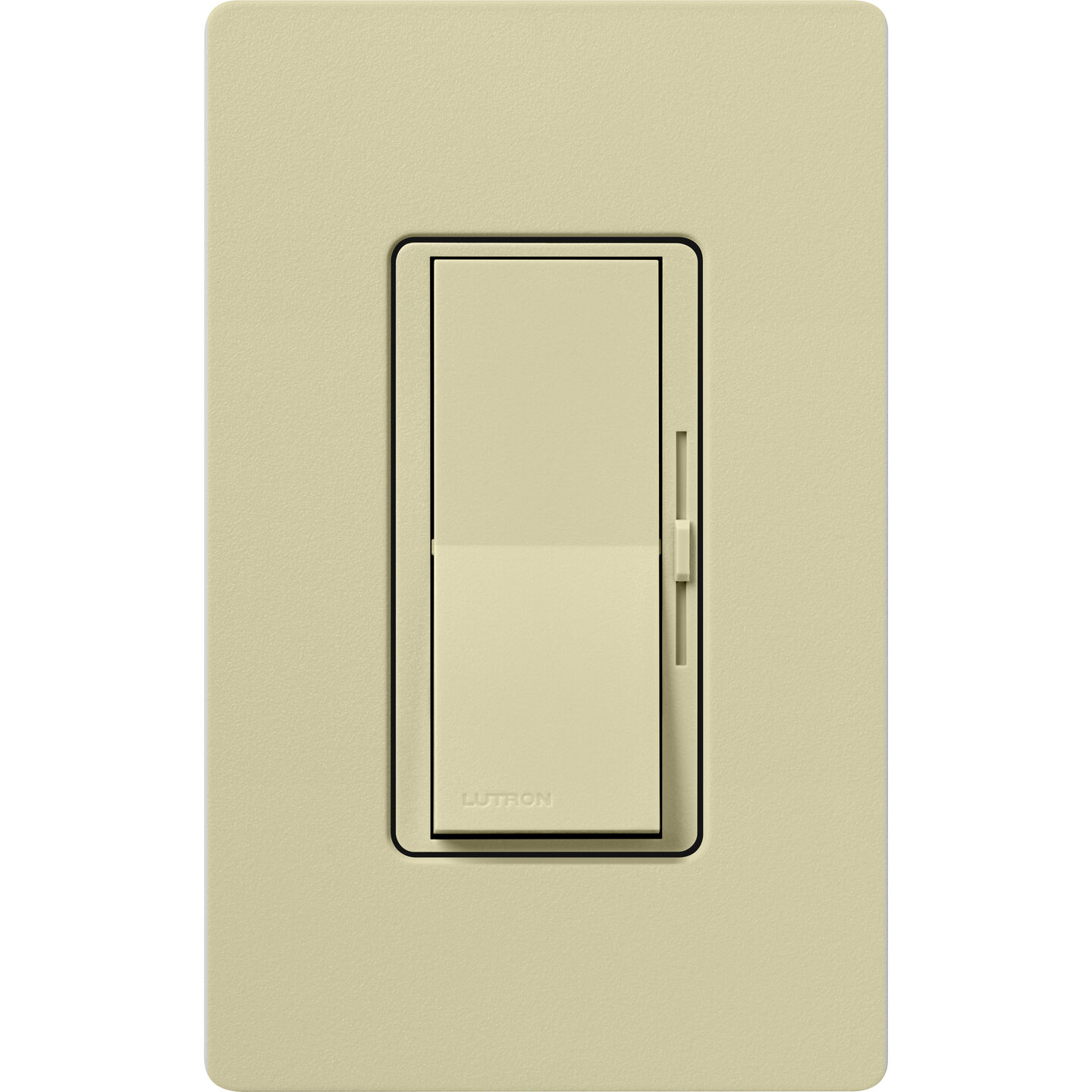

Diva RP Dimmer
Model # DVSCRP-253P-SA
Optimize control of problem LEDs and specialty loads with a reverse-phase dimmer that features paddle switch and linear-slide brightness adjustment.
Configure
Model # DVSCRP-253P-SA
Product Details
Overview
The Diva reverse-phase dimmer in satin colors provides optimal control for electronic low-voltage and LED lighting. Designed for 250W LED or 500W incandescent/halogen/ELV applications, this dimmer excels with undercabinet lights, track lights, and accent lighting. The paddle switch returns lights to preset levels while the slide dimmer provides smooth control. A soft locator light glows when off for easy location. The reverse-phase technology ensures smooth dimming of problem LEDs and integrated drivers. Installation takes 15 minutes and requires neutral wire.
- On/off paddle switch with linear-slide dimmer designed to fit standard designer wall plate openings
- Controls up to 450W (600VA) magnetic low-voltage transformers for specialty lighting applications
- Reverse-phase control technology provides optimal performance for electronic low-voltage applications
- 100% factory tested to ensure reliable operation and consistent dimming performance
- Available in designer satin colors to match Claro wall plates and coordinate with room aesthetics
- Ideal for controlling specialty LED fixtures and solving compatibility issues with standard dimmers
One Diva RP dimmer
Claro wall plate sold seperately
None
- Neutral required
- Single pole/ 3-way
- For a light controlled from more than one location, use one dimmer with a mechanical switch
- Simple installation in as little as 15 minutes
Specifications & Documents
General Specifications
Color/Finish
Satin Sage
Style & Type
Paddle switch
Slide dimmer
Overall Dimensions
4.1 in x 2.1 in x 2.1 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole/3-way
Wiring Requirements
Neutral required
Indoor / Outdoor
Indoor
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
250W dimmable LED
500W ELV/incandescent/halogen
