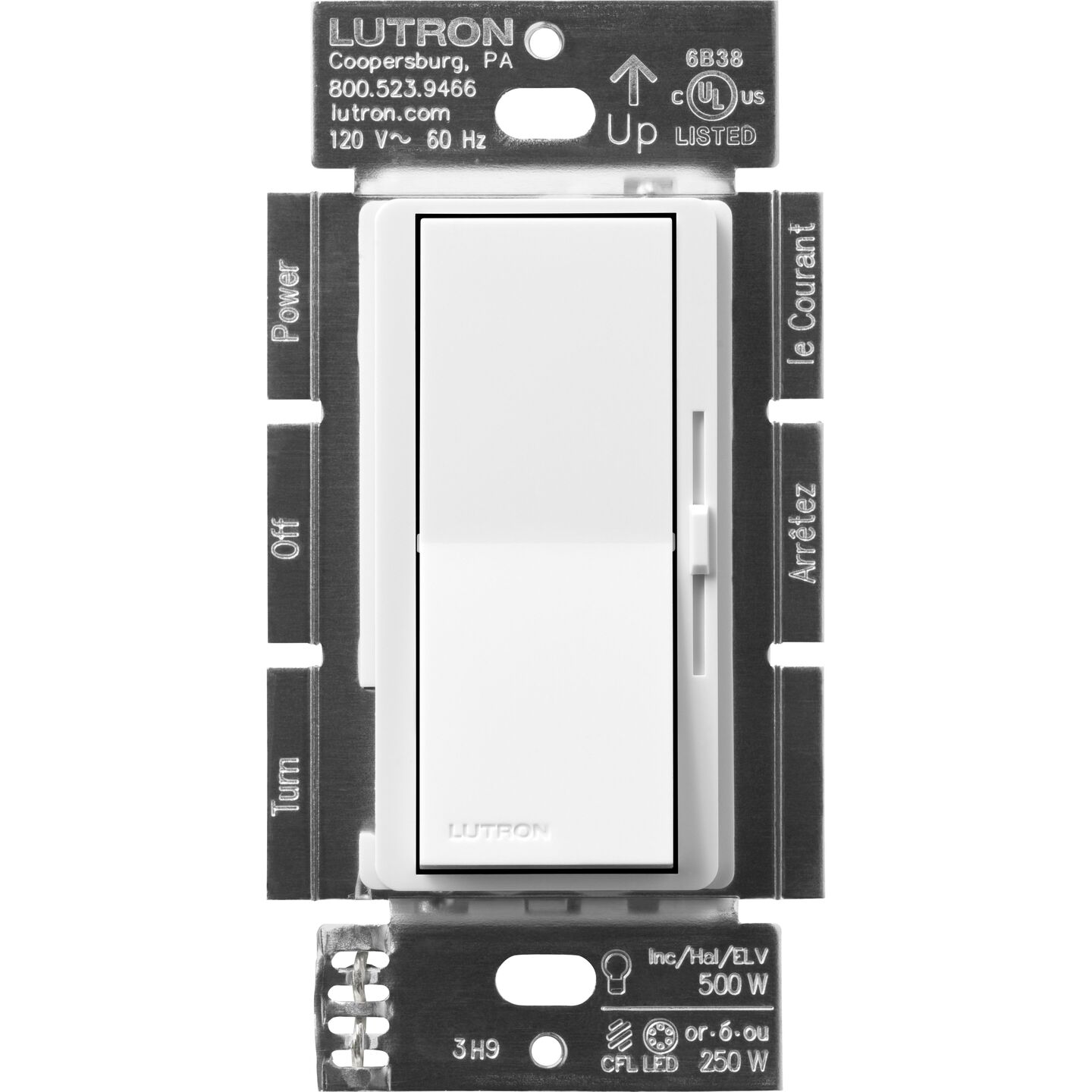

Diva 0-10V Dimmer
Model # DVSTV-AL
Control LED and fluorescent fixtures with precision by using a dimmer that includes paddle switch, slide control, and low-end trim adjustment.
Configure
Model # DVSTV-AL
Product Details
Overview
The Diva 0-10V dimmer delivers reliable control for LED and fluorescent fixtures up to 960W/8A. This dimmer works with 0-10V LED drivers and fluorescent ballasts without requiring a separate power pack. The paddle switch provides on/off control while the slide dimmer enables smooth brightness adjustment. Low-end trim adjustment ensures optimal performance with various fixture types. Compatible with single-pole or 3-way wiring for installation flexibility. No neutral wire needed, allowing simple 15-minute installation that matches existing designer switches.
- Controls 0-10-Volt LED drivers and fluorescent ballasts with up to 960 Watts/8 Amps capacity
- No neutral wire or power pack required, reducing installation complexity and component costs
- Large paddle switch with captive linear-slide control matches standard designer wall plate openings
- Compatible with single-pole or 3-way applications for versatile installation options
- Quick 15-minute installation using existing wiring makes upgrading to 0-10V control simple
- Includes one Diva 0-10V dimmer switch with low-end trim adjustment; wall plate sold separately
One Diva 0-10V dimmer
Claro wall plate sold seperately
None
- No neutral required
- Single pole/ 3-way
- For a light controlled from more than one location, use one dimmer with a mechanical switch
- Simple installation in as little as 15 minutes with existing wiring
Specifications & Documents
General Specifications
Color/Finish
Gloss Almond
Style & Type
Paddle switch
Slide dimmer
Overall Dimensions
4.1 in x 2.1 in x 2.1 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole/3-way
Wiring Requirements
No neutral required
Indoor / Outdoor
Indoor
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
960W 0-10V LED and flouorescent fixtures
