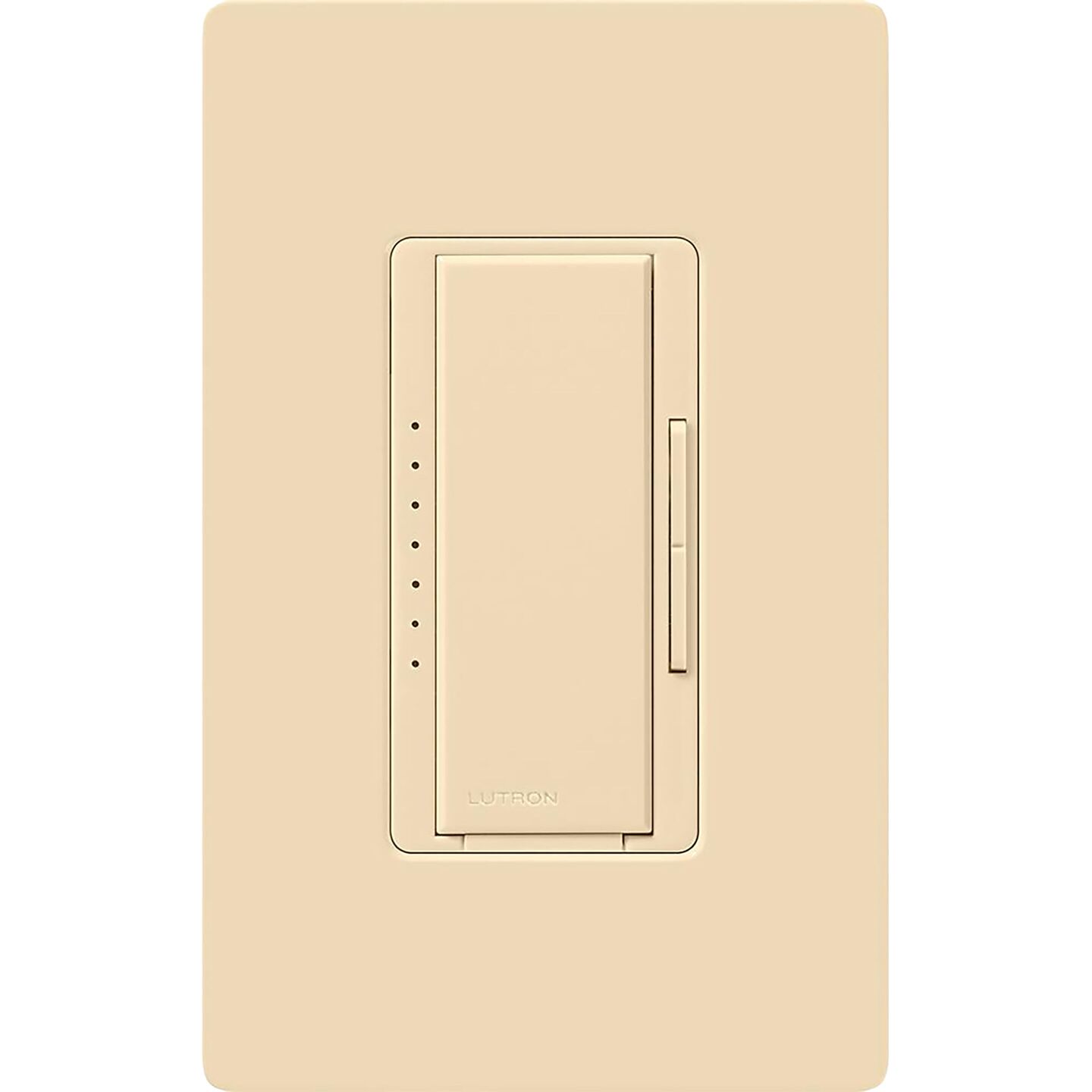

Maestro PRO LED+ Dimmer
Model # MA-PRO-IV
Control diverse lighting loads with phase-selectable dimming to optimize performance for LED, ELV, MLV, and incandescent applications.
Configure
Model # MA-PRO-IV
Product Details
Overview
The Maestro PRO LED+ dimmer features phase-selectable technology for broad compatibility with high-efficiency lighting. Automatically selects optimal control method'97forward or reverse phase'97based on wiring configuration. The tap switch provides on/off control while dimming buttons allow precise adjustment. Compatible with LEDs, ELV/MLV transformers, and incandescent bulbs. Advanced programming customizes presets, trim levels, and fade times. Neutral required for ELV and MLV loads. Screw terminals accommodate flexible installation.
- Rigorously tested across thousands of LED bulbs from major manufacturers to ensure flicker-free performance
- Controls up to 250W dimmable LED, 500W incandescent/halogen/ELV, or 400VA MLV loads
- Patented phase-selectable technology optimizes the dimming range while preventing interference between multiple dimmers
- Enables multi-location control from up to 10 locations when paired with Maestro companion dimmers (MA-R)
- Advanced programming allows customization of fade rates, preset levels, trim settings, and phase selection
- Installs in 15 minutes using existing wiring with neutral required for ELV and MLV loads
- 10 year warranty with product registration
One PRO LED+ Dimmer
Wall plate sold seperately
None
- Neutral required for ELV, MLV, Fluorescent ballasts, Hi-Lume 1% LED Drivers
- Single pole or Multi-location with companion dimmer
- Screw terminals for easy install
Specifications & Documents
General Specifications
Color/Finish
Gloss Ivory
Style & Type
Decorator/Rocker
Tap switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole or Multi-location with companion dimmer
Wiring Requirements
Neutral required for ELV, MLV, Fluorescent ballasts, Hi-Lume 1% LED Drivers
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150 W LED
600 W incandescent/halogen
400 VA MLV
20 Hi-Lume 1% 2-wire (LTE) LED Drivers
