Maestro LED+ Dual Dimmer and Switch
Model # MACL-L3S25-PD
Save space by installing two controls in a single location with a stacked dimmer and switch for lights or fan.
Configure
Model # MACL-L3S25-PD
Product Details
Overview

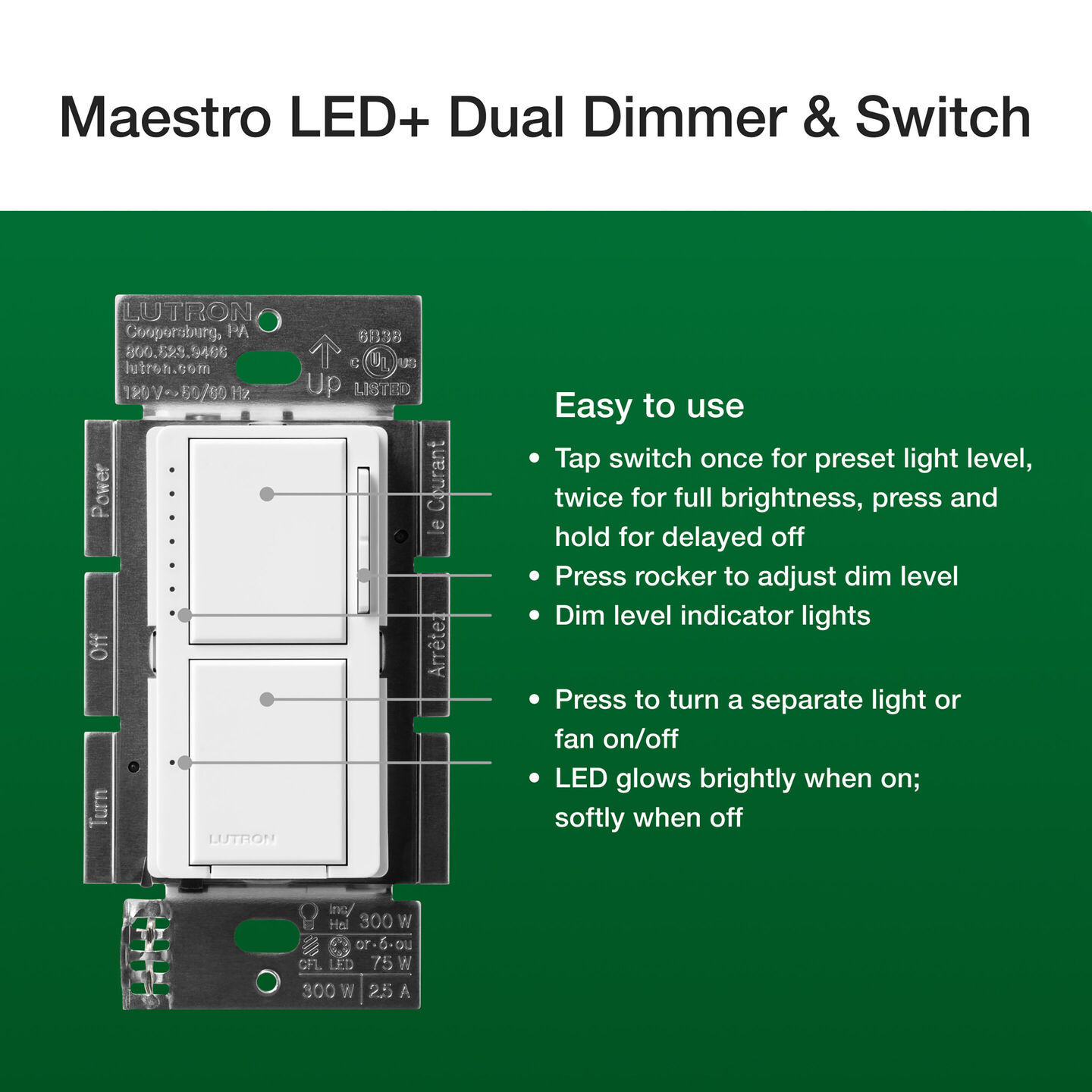

The Maestro LED+ dual dimmer and switch combines two controls in one device through a space-saving stacked design. The top dimmer adjusts brightness for one light while the bottom switch controls a second light or fan. Tap the dimmer once for preset lighting or twice for full brightness, with press-and-hold for delayed fade-to-off. The dimmer works with 75W LED or 300W incandescent/halogen bulbs while the switch handles any lighting or fans up to 2.5A. Features programmable low-end trim for optimal LED performance. Single pole only. No neutral required.

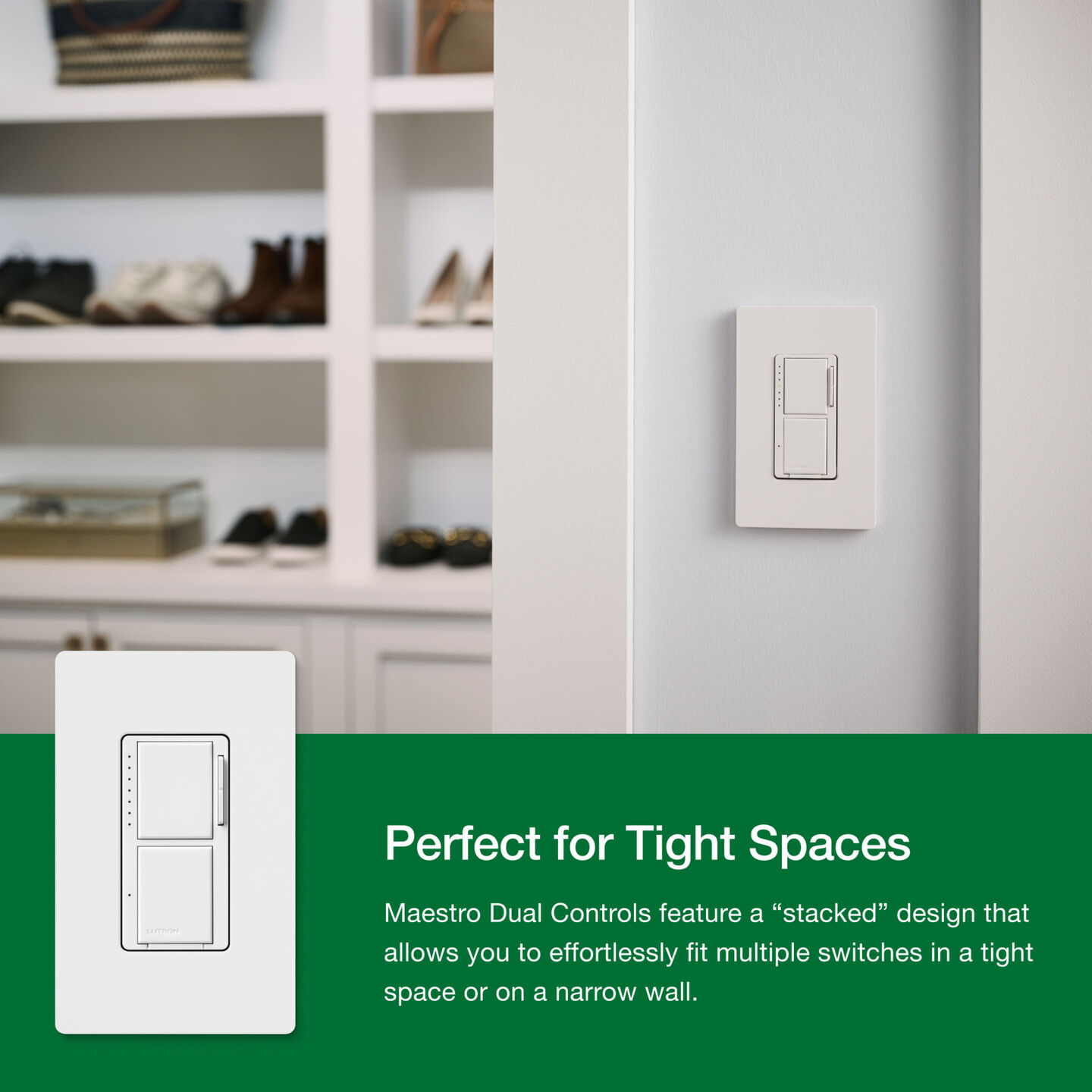

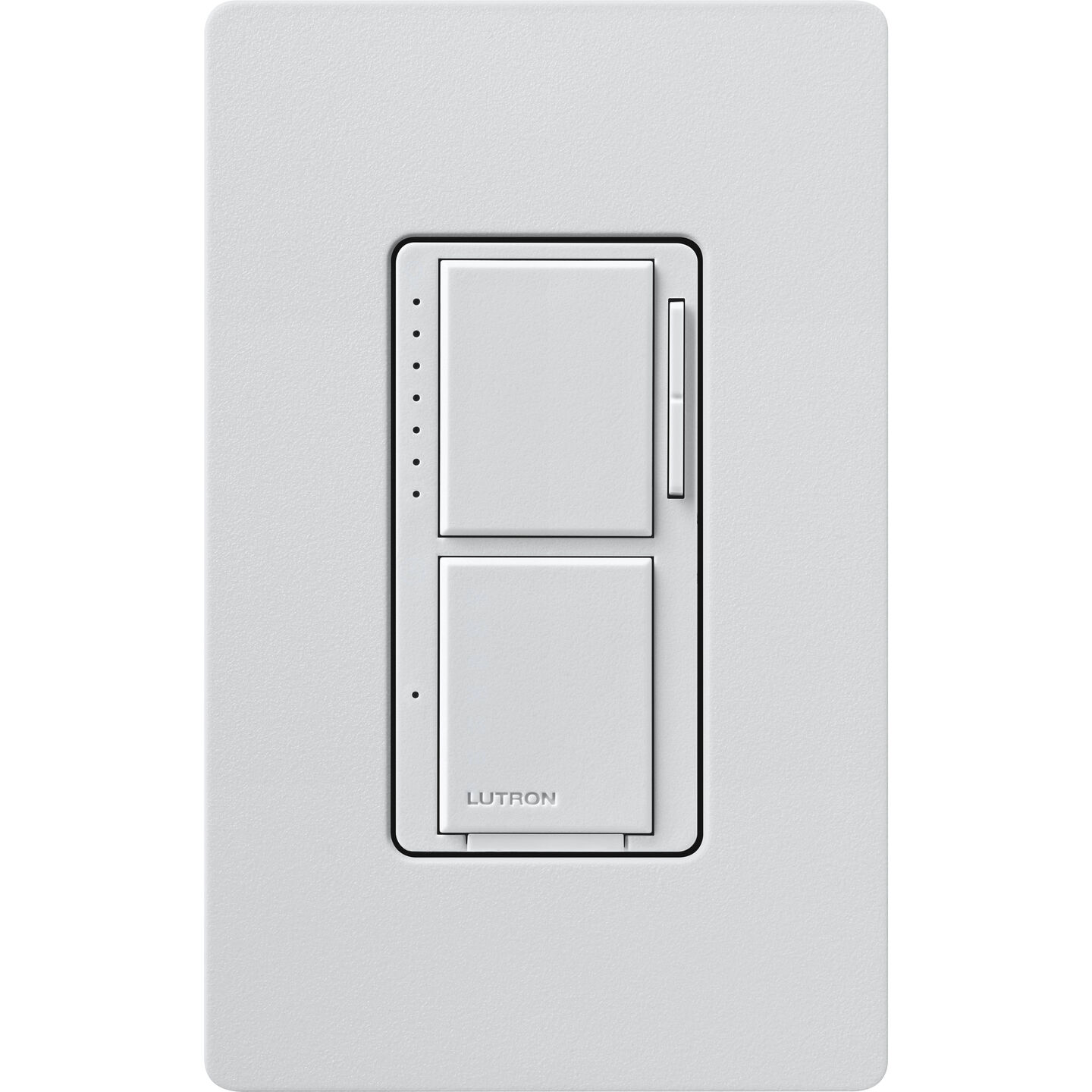

- Space-saving stacked design replaces two switches in a single gang box for cleaner wall appearance
- Dimmer circuit controls up to 75W LED or 300W incandescent/halogen with smooth performance

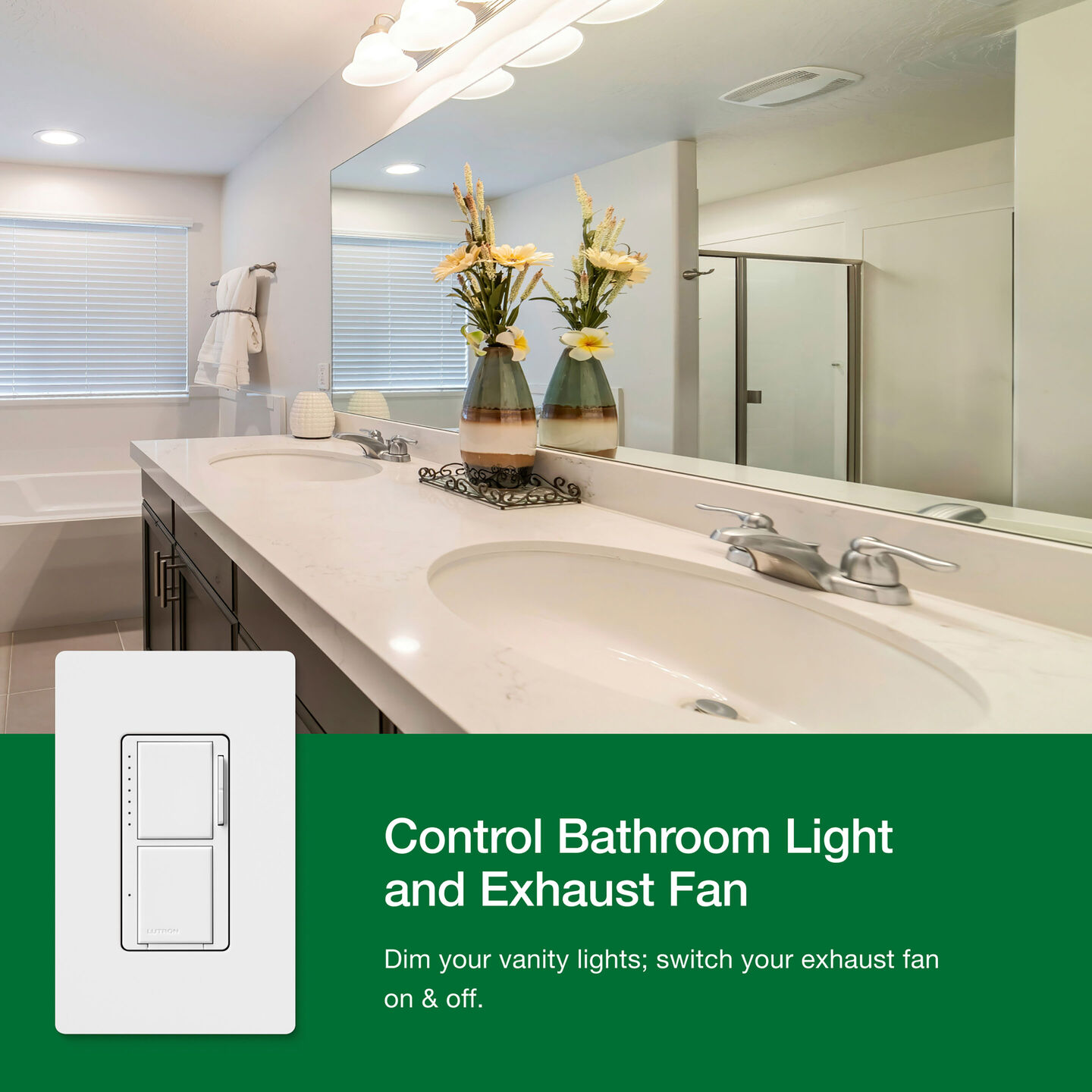

- Switch circuit handles all lighting types or exhaust fans up to 2.5A including DC models
- Green LED indicators display dimming level and switch status for clear visual feedback
- Advanced programming enables low-end trim adjustment and customizable fade rates
- Requires two separate load wires but no neutral connection for easy retrofit installation

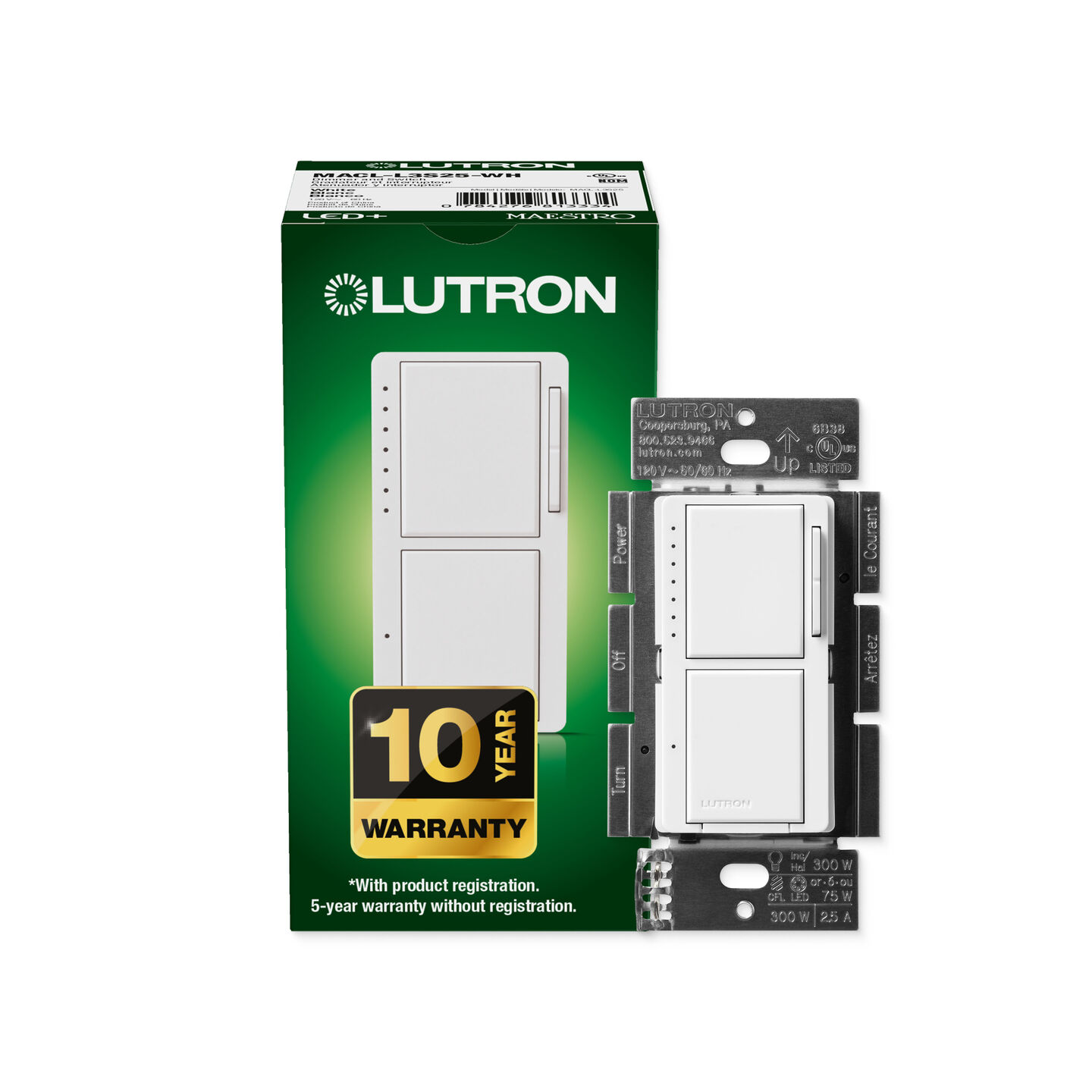

- 10 year warranty with product registration
One Maestro LED+ Dual Dimmer and Switch
Wall plate sold seperately
None
- No neutral wire required
- Single pole
- Single line (hot) wire and two separate load wires required
- Easy installation in as little as 15 minutes
Specifications & Documents
General Specifications
Color/Finish
Gloss Palladium
Style & Type
Decorator/Rocker dimmer
Tap switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
75 W LED
300 W incandescent/halogen
