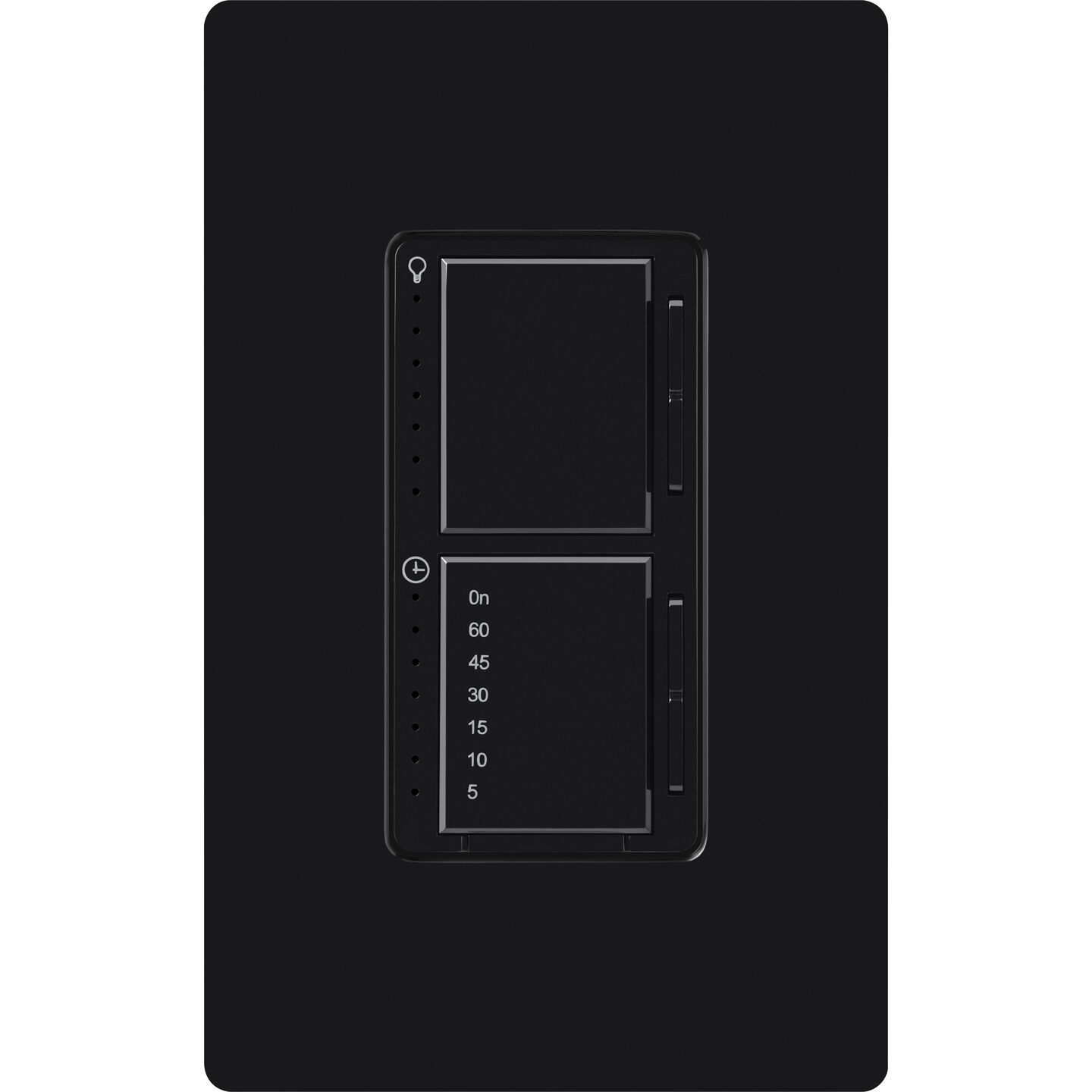

Dimmer & Timer Dual Switch (Extended Timer)
Model # MACL-L3T251-BL
Save space by installing light and exhaust fan controls in a single location with a stacked dimmer and timer.
Configure
Model # MACL-L3T251-BL
Product Details
Overview
The Dimmer & Timer Dual Switch combines two controls in one space-saving design, managing both lighting and airflow from a single location. Tap the dimmer switch once for your preferred light level, double tap for full brightness, and press and hold for gentle fade-to-off. The timer switch controls a separate light or exhaust fan with operation for 5-60 minutes, featuring orange indicators that show remaining time. Compatible with LED loads up to 75W or incandescent/halogen up to 300W on the dimmer, while handling any light or exhaust fan up to 2.5A on the timer. Upgrade a dual switch or easily add during a remodel or new construction project. Installs with existing wiring. No neutral required.
- Space-saving stacked design: dimmer controls light brightness, timer controls a separate light or fan
- Tap once for preset light level, twice for full on, hold for delayed fade-to-off
- Dimming (top) load works with 75W LED bulbs or 300W incandescent/halogen bulbs
- On/off countdown timer (bottom) works with all lighting types or up to 2.5A exhaust fans for 5-60 minutes
- Orange indicator lights denote time remaining with rapid blinking for one-minute warning
- Easy-to-adjust dimming range for improved bulb performance
- 10 year warranty with product registration
One Dual Dimmer & Timer Switch
Wall plate sold seperately
None
- No neutral wire required
- Single line (hot) wire and two separate load wires required
- Single pole
- Easy Installation in as little as 15 minutes
Specifications & Documents
General Specifications
Color/Finish
Gloss Black
Style & Type
Tap switch dimmer
Tap switch timer
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single line (hot) wire and two separate load wires required
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
Dimmer circuit maximum load
65 W dimmable LED
300 W incandescent / halogen
Mixed bulb type
Dimmer circuit minimum load
Minimum one bulb from the approved bulb list
25 W incandescent / halogen
