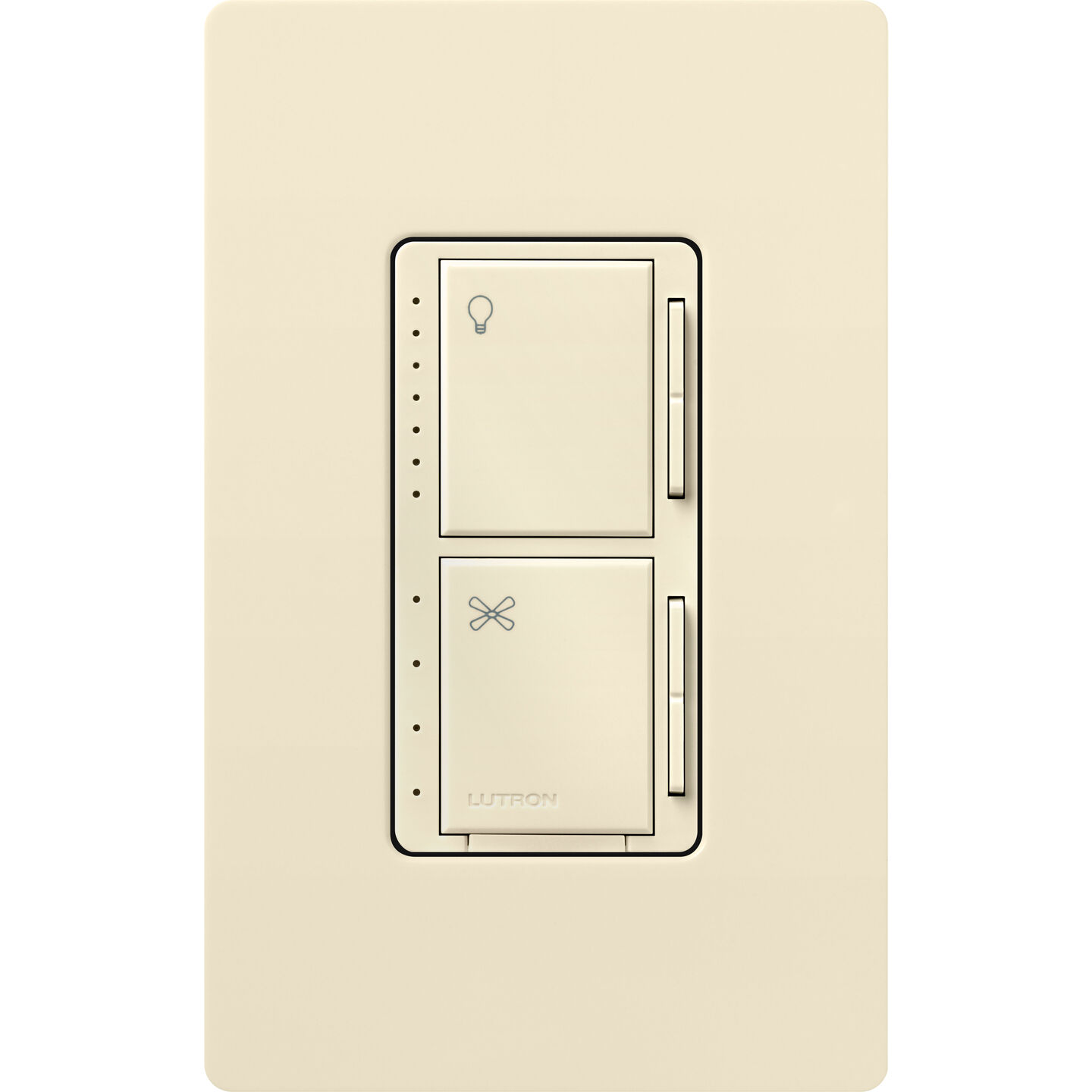

Maestro Dual LED+ Dimmer and 4-Speed Fan Control
Model # MACL-LFQ-AL
Replace pull chains with dual wall control featuring independent tap switches for dimmable lighting and four quiet fan speeds.
Configure
Model # MACL-LFQ-AL
Product Details
Overview
The Maestro LED+ dimmer and fan control eliminates pull chains by managing both lighting and fan speed from one wall location. Independent tap switches and rockers control each function separately. The LED+ dimmer ensures flicker-free performance with dimmable bulbs while the fan control provides four quiet speeds to maintain comfort. Programmable fade transitions allow eyes to adjust to lighting changes. Advanced features include low-end trim adjustment for optimal LED performance. Compatible with up to 1.5A ceiling fans. Requires separate fan and light wires. No neutral needed.
- Replaces inconvenient pull chains with sophisticated wall control for both lighting and fan operation
- Controls up to 1.5A ceiling paddle fans with four quiet speeds for optimal comfort
- LED+ dimmer manages up to 75W dimmable LED or 250W incandescent/halogen lighting loads
- Double-tap instantly activates full brightness; press and hold initiates delayed fade-to-off
- Requires separate wires for fan and light control; not compatible with fans that come with their own remote
- Single pole operation with no neutral wire required simplifies installation in existing homes
- 10 year warranty with product registration
One LED+ Dimmer and Fan Control
Wall plate sold seperately
None
- No neutral wire required
- Single pole
- Screw terminal and wire lead installation
- Easy installation in as little as 15 minutes with existing wiring
Specifications & Documents
General Specifications
Color/Finish
Gloss Almond
Style & Type
Decorator/Rocker dimmer
Decorator/Rocker fan control
Overall Dimensions
4.0 in x 2.0 in x 2.0 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
75W LED
250 W incandescent/halogen
1.5 A fan
