Sunnata PRO LED+ Touch Dimmer
Model # ST-PRO-N-PB
Control diverse lighting loads with professional phase-selectable dimming featuring touch technology and RTISS flicker compensation for any application.
Configure
Model # ST-PRO-N-PB
Product Details
Overview
The Sunnata PRO LED+ touch dimmer delivers professional-grade control for demanding lighting applications through advanced phase-selectable technology. Compatible with electronic low voltage, magnetic low voltage, LED, incandescent, and halogen loads, this versatile dimmer automatically optimizes performance for each load type. RTISS technology reduces flicker by compensating in real-time for incoming line voltage variations. The innovative light bar allows touch or swipe control while providing customizable locator lighting. Create sophisticated multi-location installations by adding up to four companion dimmers (ST-RD) for control from five locations. MyLevel personalization enables adjustment of light bar brightness, trim settings, and fade rates. Neutral wire required.

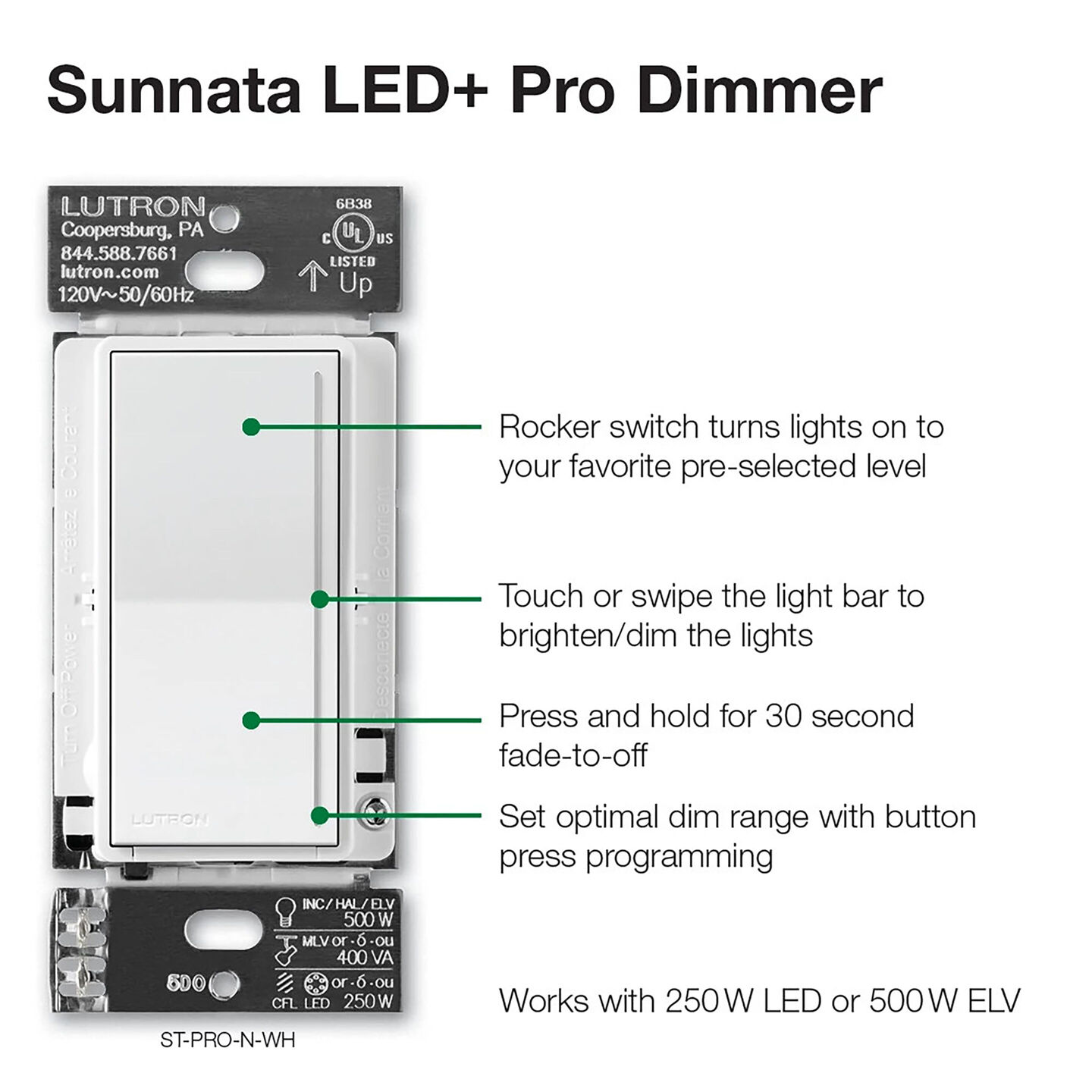

- Phase-selectable technology provides compatibility with LED, ELV, MLV, incandescent, and halogen loads
- Controls up to 250W LED, 500W ELV/incandescent/halogen, or 400VA MLV with professional performance
- RTISS technology actively compensates for line voltage variations to eliminate flicker

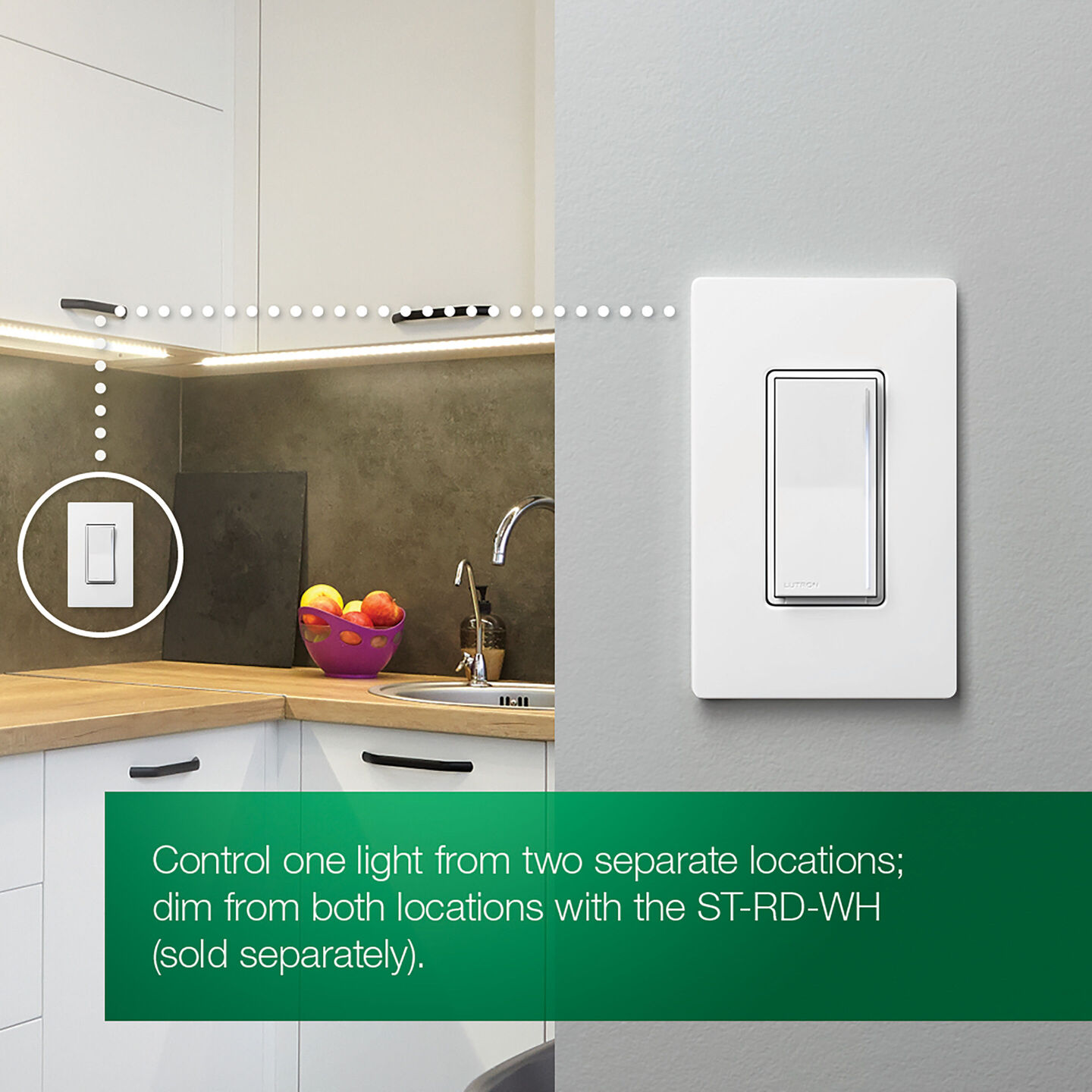

- Multi-location capable with up to 4 companion dimmers for sophisticated 5-location control
- MyLevel personalization allows customization of light bar, trim levels, and fade rates
- Screw terminal connections ensure secure installation for professional applications
One Sunnata PRO LED+ Dimmer
wall plate sold seperately
None
- Neutral wire required
- Single pole or Multi-location with up to four companion dimmer switches (ST-RD)
- Screw terminal installation
Specifications & Documents
General Specifications
Color/Finish
Satin Pebble
Style & Type
Decorator-Style
Rocker Switch
Touch Lighbar Dimmer
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole or Multi-location with up to four companion dimmer switches (ST-RD)
Wiring Requirements
Neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
250W LED
500W ELV/incandescent/halogen
400VA MLV
