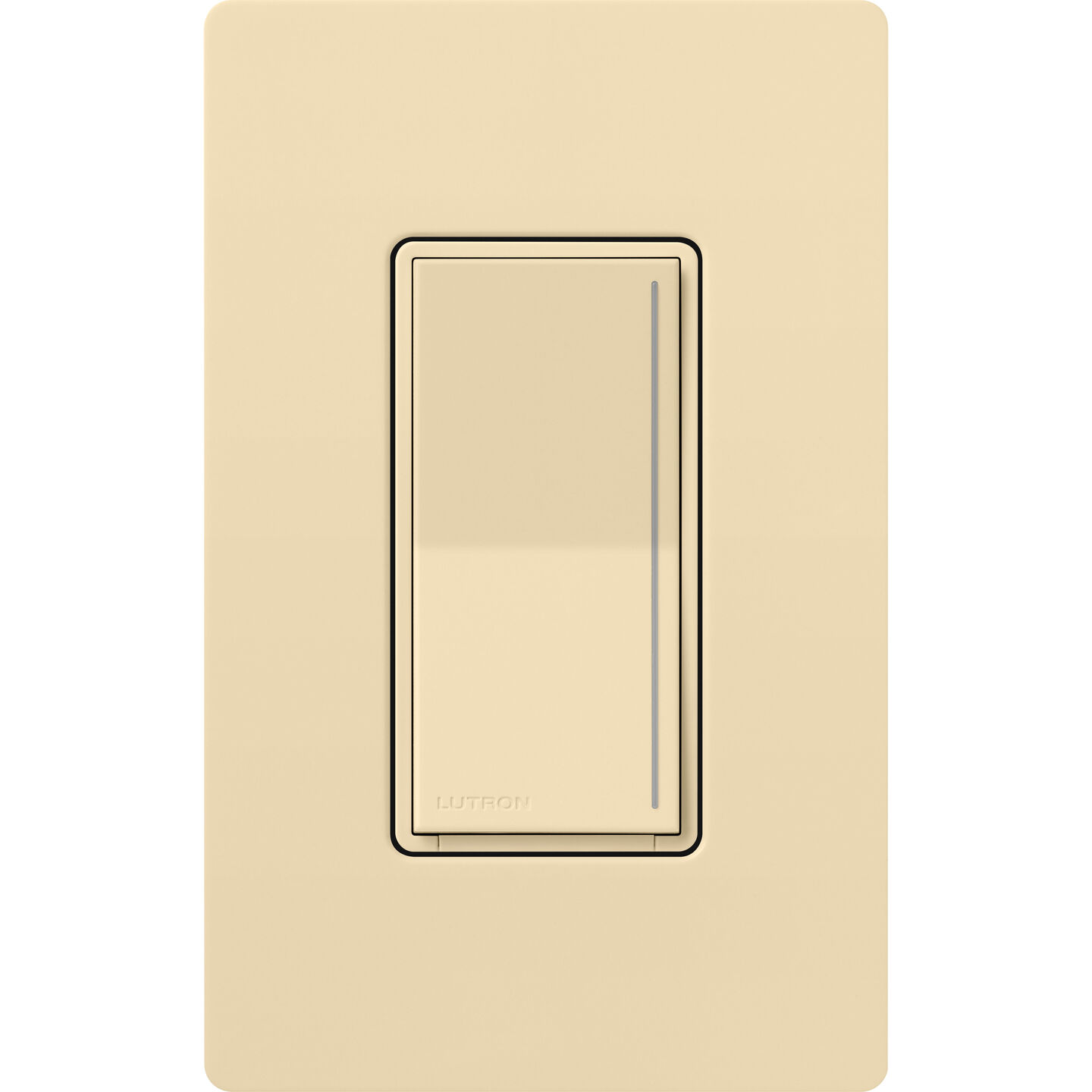

Sunnata LED+ Dimmer
Model # STCL-153M-IV
Transform lighting through intuitive touch control with a swipe-to-dim light bar and integrated soft-glow locator for effortless operation.
Configure
Model # STCL-153M-IV
Product Details
Overview
The Sunnata touch LED+ dimmer revolutionizes lighting control through innovative light bar technology and superior dimming performance. Touch or swipe the illuminated bar to seamlessly adjust brightness levels, while LED+ technology ensures flicker-free operation tested across thousands of bulbs from dozens of manufacturers. The light bar serves dual purposes'97providing intuitive dimming control and acting as a customizable locator light. MyLevel personalization allows you to adjust light bar brightness, set favorite levels, and customize fade rates. Compatible with up to 150W LED or 600W incandescent/halogen loads. Works in multi-location installations with mechanical 3-way switches or up to 9 Sunnata accessory switches. No neutral required.

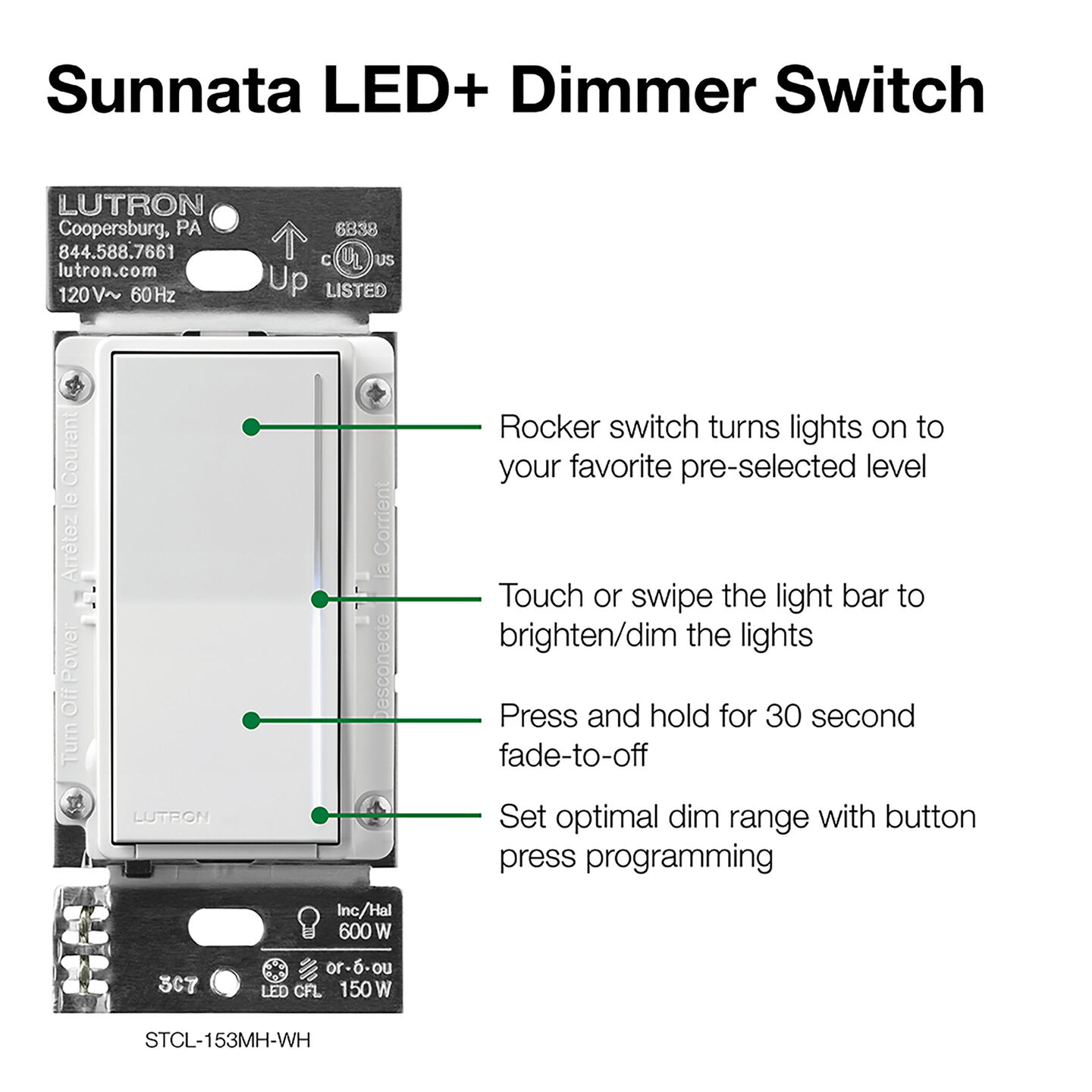

- Innovative touch/swipe light bar provides intuitive dimming control with visual feedback
- LED+ technology tested on thousands of bulbs ensures flicker-free performance across all major brands
- Controls up to 150W dimmable LED or 600W incandescent/halogen loads reliably
- MyLevel personalization customizes light bar brightness, favorite levels, and fade rates
- Multi-location compatible with mechanical 3-way switches or up to 9 accessory switches for 10 locations
- Press and hold activation provides 30-second delayed fade-to-off for convenient exit lighting

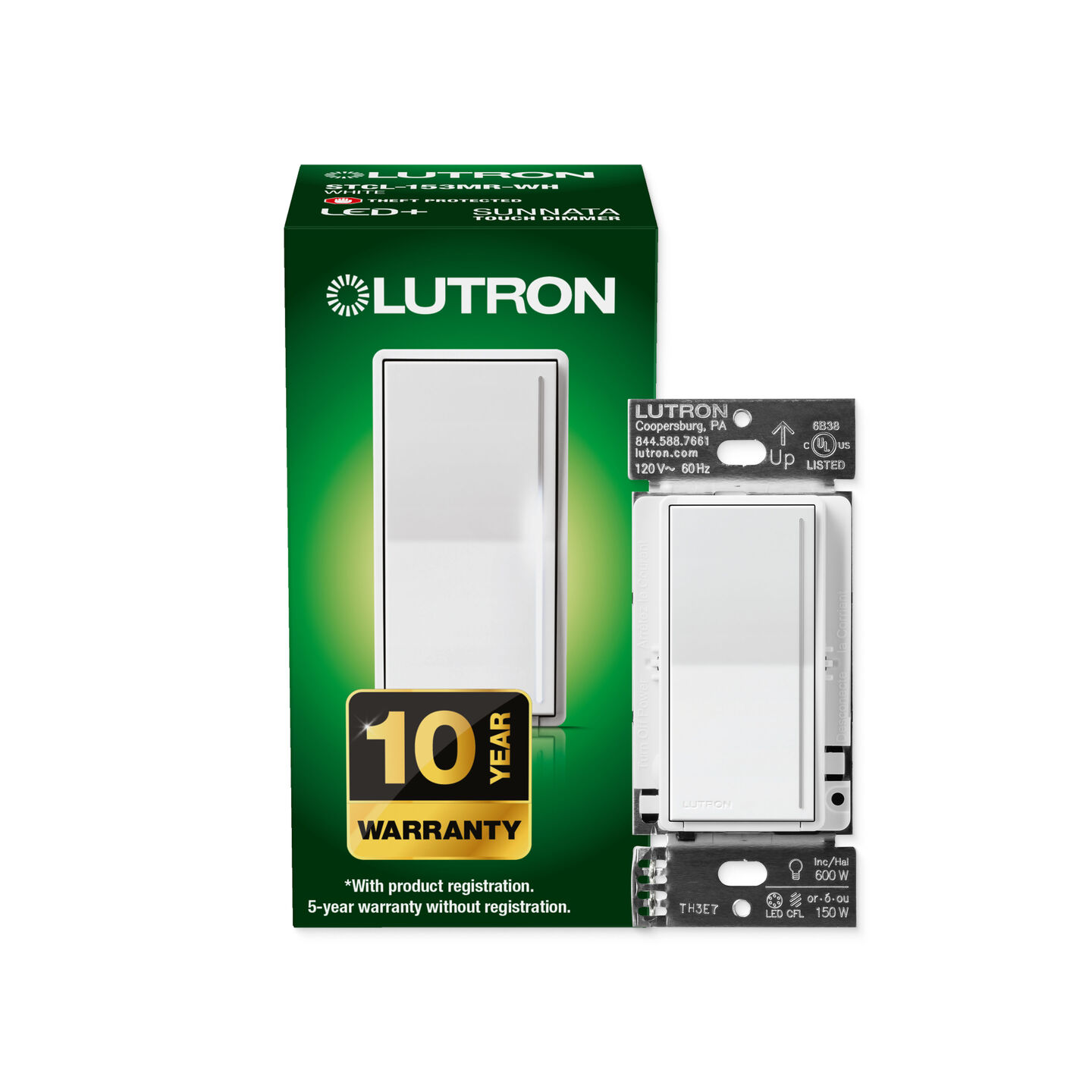

One Sunnata LED+ Dimmer
wall plate sold seperately
STCL-153MH-IV
- No neutral required
- Single pole or Multi-location using up to 9 Sunnata Accessory switches (ST-AS)
- Compatible with standard 3-way mechanical switch
- Easy installation in as little as 15-minutes
Specifications & Documents
General Specifications
Color/Finish
Gloss Ivory
Style & Type
Decorator-Style
Rocker Switch
Touch Lightbar Dimmer
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole or Multi-location using up to 9 Sunnata Accessory switches (ST-AS)
Wiring Requirements
No neutral required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150W LED
600W incadescent/halogen
