Sunnata On/Off Switch
Model # ST-6ANS-WH
Control lights and motors with elegant touch technology featuring a soft-glow locator light and customizable settings for multi-location installations.
Configure
Model # ST-6ANS-WH
Product Details
Overview

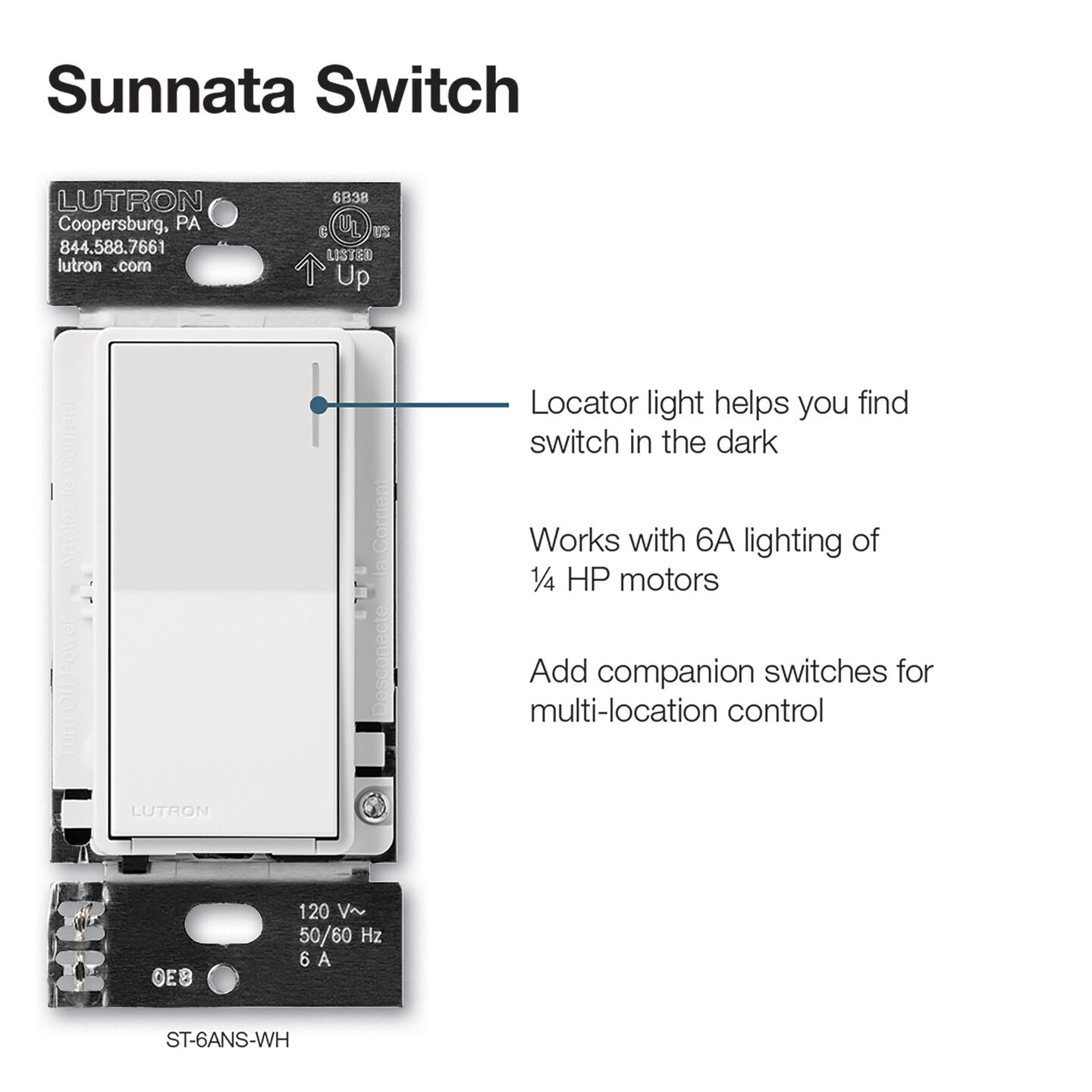

The Sunnata switch brings decorator-style elegance to non-dimming applications through innovative touch control technology. This sophisticated switch features a rocker to turn lights on/off and seamlessly matches other Sunnata dimmers and switches throughout your home. Create multi-location control by adding up to four Sunnata companion switches (ST-RS) to manage lighting from up to five locations. The integrated locator light glows softly in darkness for easy navigation, with customizable brightness through MyLevel personalization. Compatible with 6A lighting loads or 3A motor loads up to 1/10 HP. Neutral wire required. Wallplate sold separately.
- Controls non-dimmable lighting up to 6A or motor loads up to 3A (1/10 HP) with reliable performance

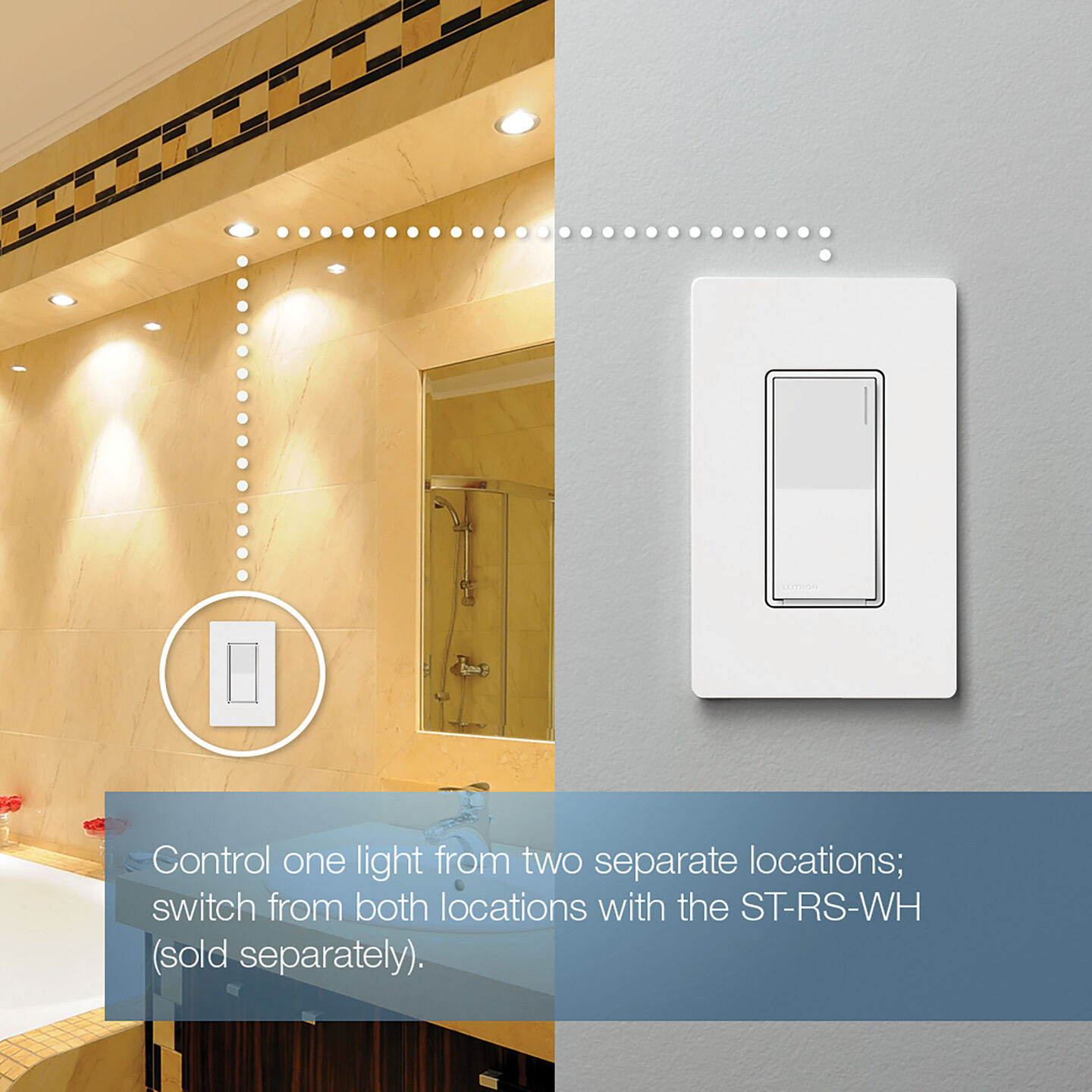

- Multi-location capable with up to 4 companion switches (ST-RS) for control from 5 locations
- MyLevel personalization allows adjustment of locator light brightness and operation preferences
- Press and hold functionality provides 30-second delayed shutoff for convenient exit lighting
- Coordinates with complete Sunnata family for consistent appearance throughout your home
- Available in 20+ designer colors to match any decor with Claro wallplates
One Sunnata Switch
Wallplate sold seperately
None
- Neutral wire required
- Single pole or Multi-location with up to 4 companion switches (ST-RS)

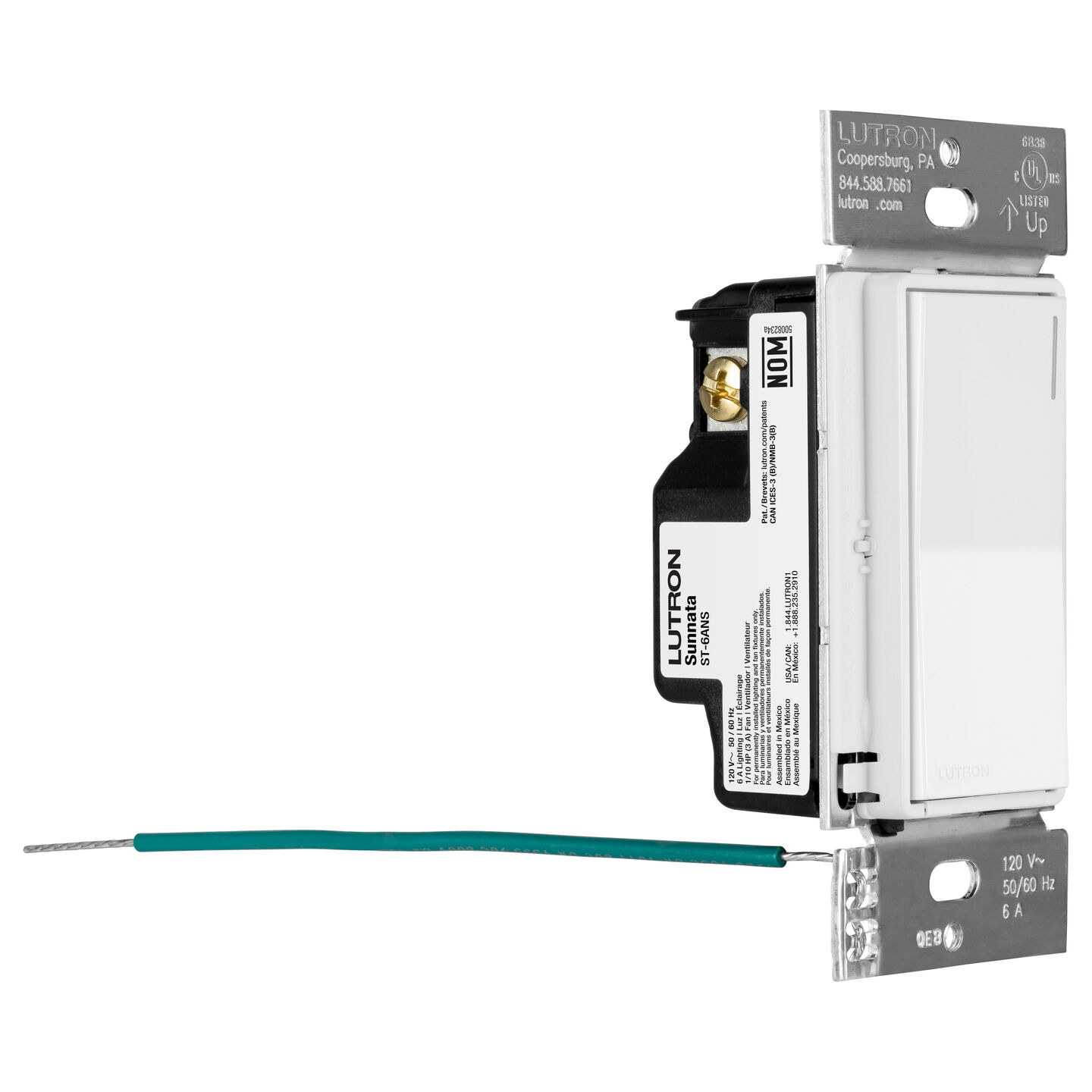

- Screw terminal connections
- Easy installation in as little as 15-minutes
Specifications & Documents
General Specifications
Color/Finish
Gloss White
Style & Type
Decorator-Style
Rocker Switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole or Multi-location with up to 4 companion switches (ST-RS)
Wiring Requirements
Neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
6A lighting
3A 1/10 HP motors
