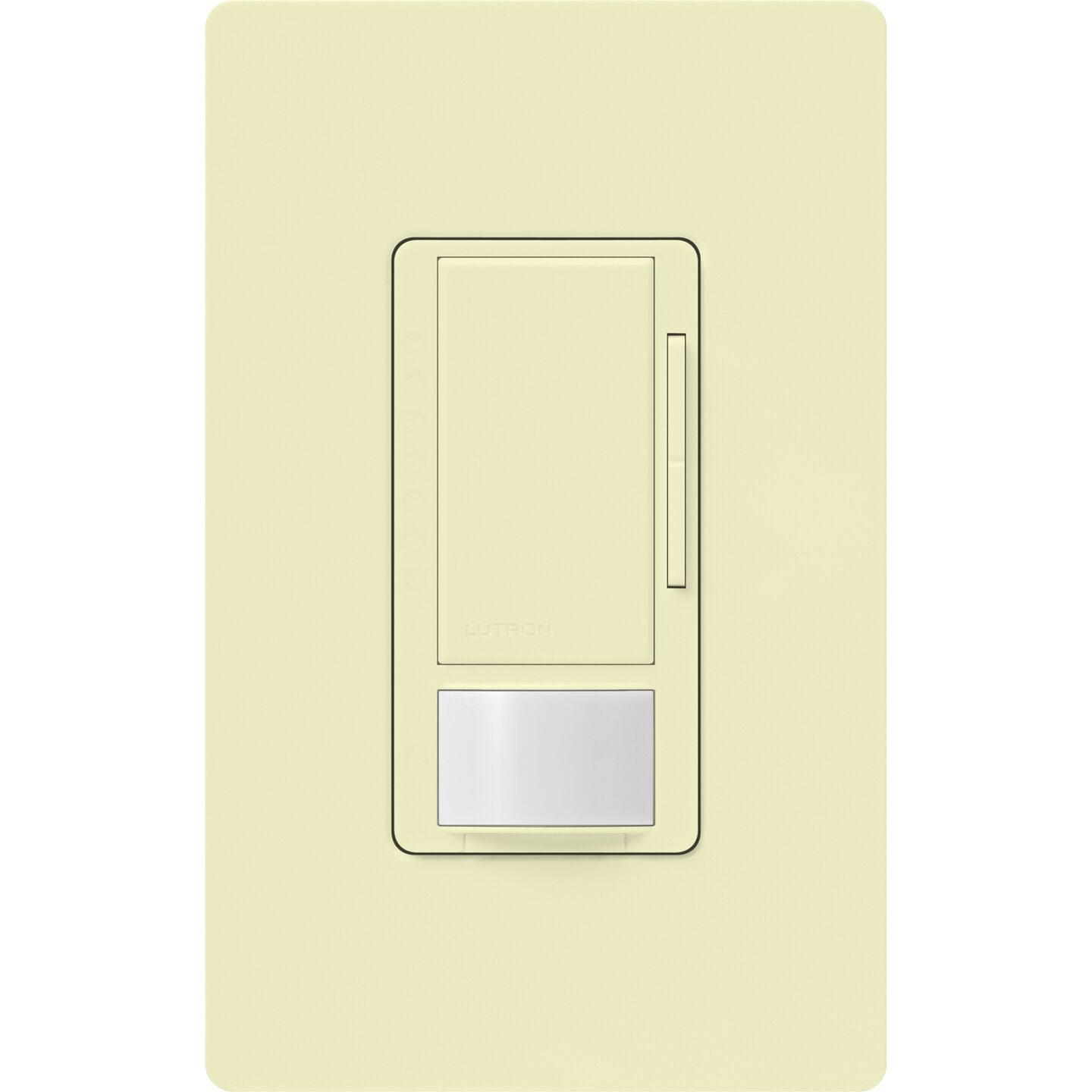

Maestro 0-10V Motion Sensor/Dimmer
Model # MS-Z101-AL
Control commercial 0-10V LED fixtures with integrated motion sensing that provides automatic on/off and manual dimming adjustment.
Configure
Model # MS-Z101-AL
Product Details
Overview
The Maestro 0-10V Motion Sensor/Dimmer controls commercial LED fixtures through 0-10V dimming with integrated occupancy detection. Compatible with all 0-10V drivers up to 8A switching capacity and 50mA sink current. Passive infrared sensing with XCT technology detects fine motion while manual raise/lower buttons adjust lighting levels. Programmable features include timeout duration, low-end trim, and sensitivity. Works in single pole or multi-location installations with companion switches. 180-degree sensor coverage. Neutral optional for flexible installation.
- Controls all 0-10V LED drivers and fluorescent ballasts up to 8A with 50mA sink current
- Combines occupancy sensing with full-range 0-10V dimming control in one device
- Multi-location compatible with up to 9 companion switches or existing 3-way wiring
- Programmable low-end trim sets minimum light level for LED compatibility
- 180-degree PIR sensor with XCT technology covers 900 sq ft major motion areas
- Complies with Title 24 requirements for multi-level lighting control
- 10 year warranty with product registration
One 0-10V Motion Sensor/Dimmer
Wall plate sold seperately
MS-Z101-V-AL
- Neutral wire optional
- Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS)
- Compatible with an existing 3-way switch
- Screw terminal and wire lead installation
Specifications & Documents
General Specifications
Color/Finish
Gloss Almond
Style & Type
Decorator/Rocker
Tap switch
Sensor
Overall Dimensions
4.5 in x 3.4 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single Pole/Multi-location switching with Lutron Maestro Companion switches (MA-AS); Compatible with an existing 3-way switch
Wiring Requirements
Neutral wire optional
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
8 A LED drivers
4.4 A fan
