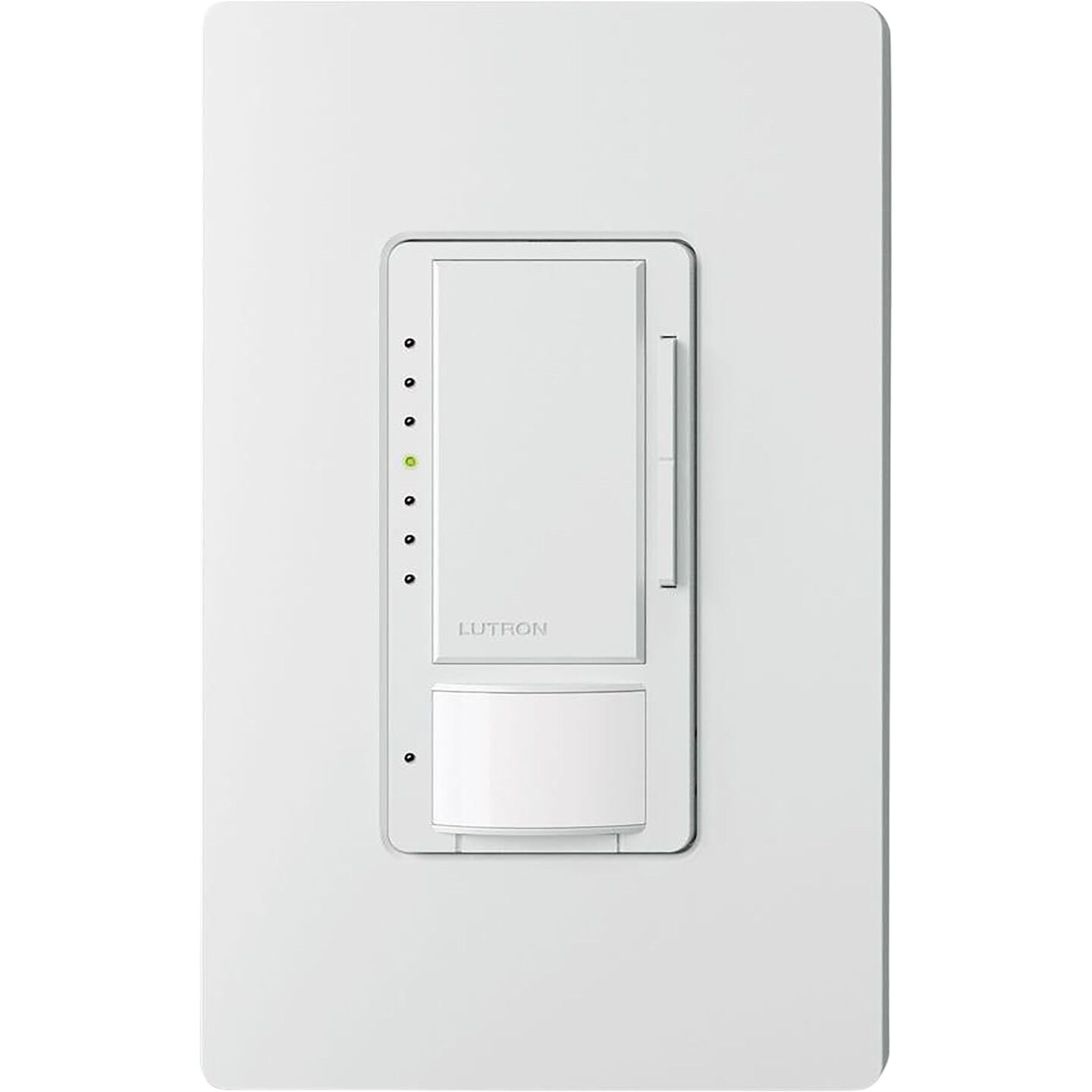

Maestro LED+ Motion Sensor Dimmer
Model # MSCL-OP153M-PD
Combine motion sensing with dimming control to automatically turn lights on to your preferred brightness and off when rooms are vacant.
Configure
Model # MSCL-OP153M-PD
Product Details
Overview
The Maestro LED+ Motion Sensor Dimmer combines occupancy sensing with full dimming control. Lights automatically turn on to your preset level when entering a room and fade off after you leave. The dimmer provides smooth control of LED and incandescent bulbs while XCT sensing technology detects fine motion to prevent unwanted shutoffs. Smart ambient light detection learns your preferences and keeps lights off when natural light suffices. Programmable timeout of 1, 5, 15, or 30 minutes. Compatible with multi-location installations. No neutral required.
- Combines full-range dimming with passive infrared motion detection in one device
- Controls 150W dimmable LED or 600W incandescent/halogen loads with flicker-free performance
- 180-degree sensor field provides 900 sq ft major and 400 sq ft minor motion coverage
- Programmable features include timeout duration, occupied light level, and sensor mode
- Works in multi-location installations with Maestro companion dimmers or 3-way switches
- Complies with Title 20/24 automatic shutoff requirements for energy code compliance
- 10 year warranty with product registration
One LED+ Motion Sensor Dimmer
Wall plate sold seperately
None
- No neutral wire required
- Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R); compatible with an existing 3-way switch
- Easy installation in as little as 15 minutes
Specifications & Documents
General Specifications
Color/Finish
Satin Palladium
Style & Type
Decorator/Rocker
Tap switch
Sensor
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R); compatible with an existing 3-way switch
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150 W LED
600 W incandescent/halogen
