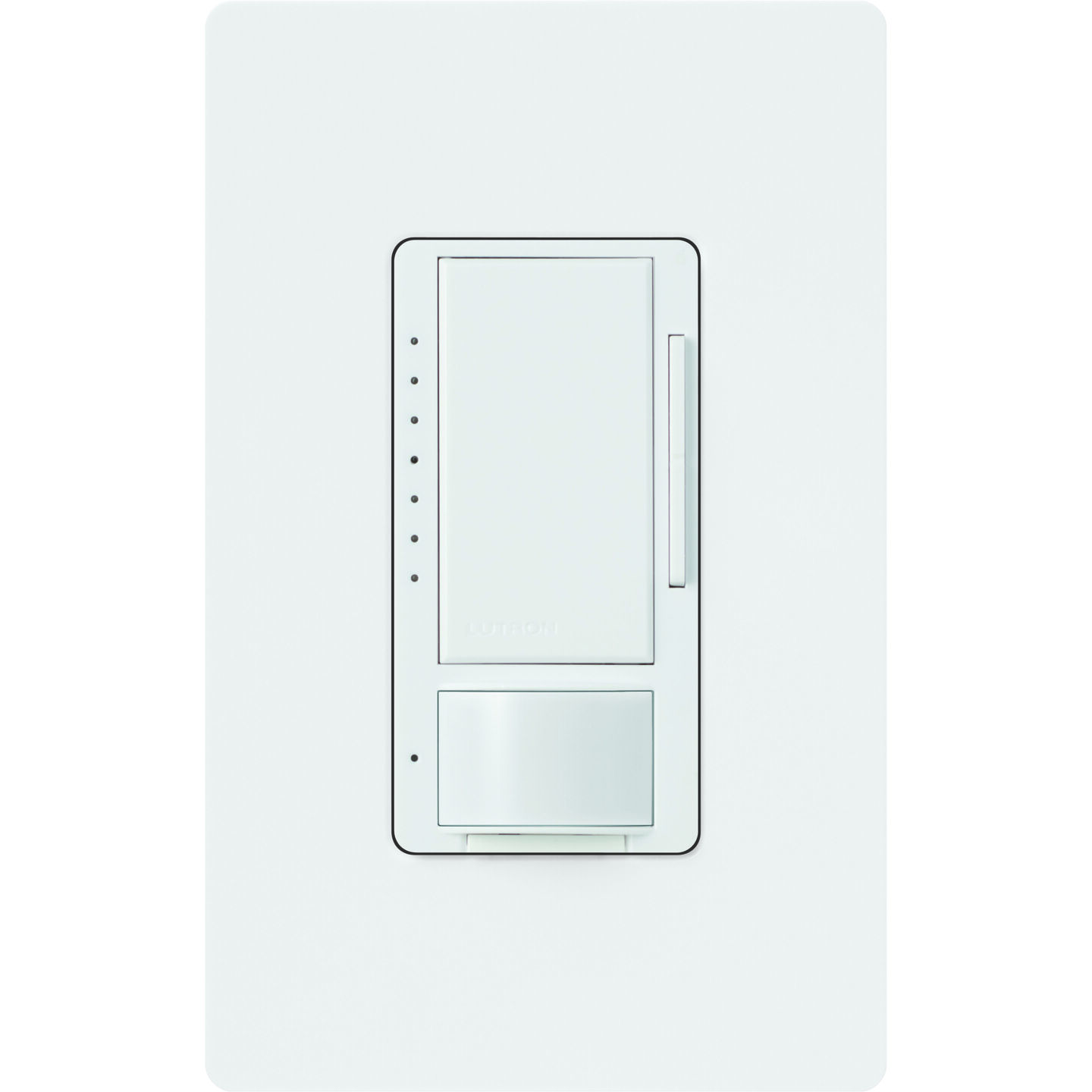

Maestro LED+ Motion Sensor Dimmer (Vacancy)
Model # MSCL-VP153M-WH
Combine vacancy sensing with dimming control for manual-on convenience and automatic-off energy savings at your preferred brightness level.
Configure
Model # MSCL-VP153M-WH
Product Details
Overview
The Maestro LED+ Vacancy Sensor Dimmer combines manual-on, automatic-off sensing with full dimming control. Turn lights on manually to your preset level, then the dimmer automatically fades them off after you leave. The dimmer provides smooth control of LED and incandescent bulbs while XCT sensing technology detects fine motion to prevent unwanted shutoffs. Perfect for bedrooms and media rooms where automatic-on would be disruptive. Programmable timeout of 1, 5, 15, or 30 minutes. Compatible with multi-location installations. No neutral required.
- Combines full-range dimming with passive infrared vacancy detection in one device
- Controls 150W dimmable LED or 600W incandescent/halogen loads with flicker-free performance
- 180-degree sensor field provides 900 sq ft major and 400 sq ft minor motion coverage
- Manual-on operation ideal for bedrooms, home theaters, and rooms with pets
- Complies with Title 20/24 vacancy sensing requirements for residential energy codes
- 10 year warranty with product registration
One LED+ Vacancy Motion Sensor Dimmer
Wall plate sold seperately
MSCL-VP153MH-WH
- No neutral wire required
- Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R/MSC-AD); Compatible with an existing 3-way switch
- Easy installation in as little as 15 minutes
Specifications & Documents
General Specifications
Color/Finish
Gloss White
Style & Type
Decorator/Rocker
Tap switch
Vacancy Sensor
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R/MSC-AD); Compatible with an existing 3-way switch
Wiring Requirements
No neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150 W LED
600 W incandescent/halogen
