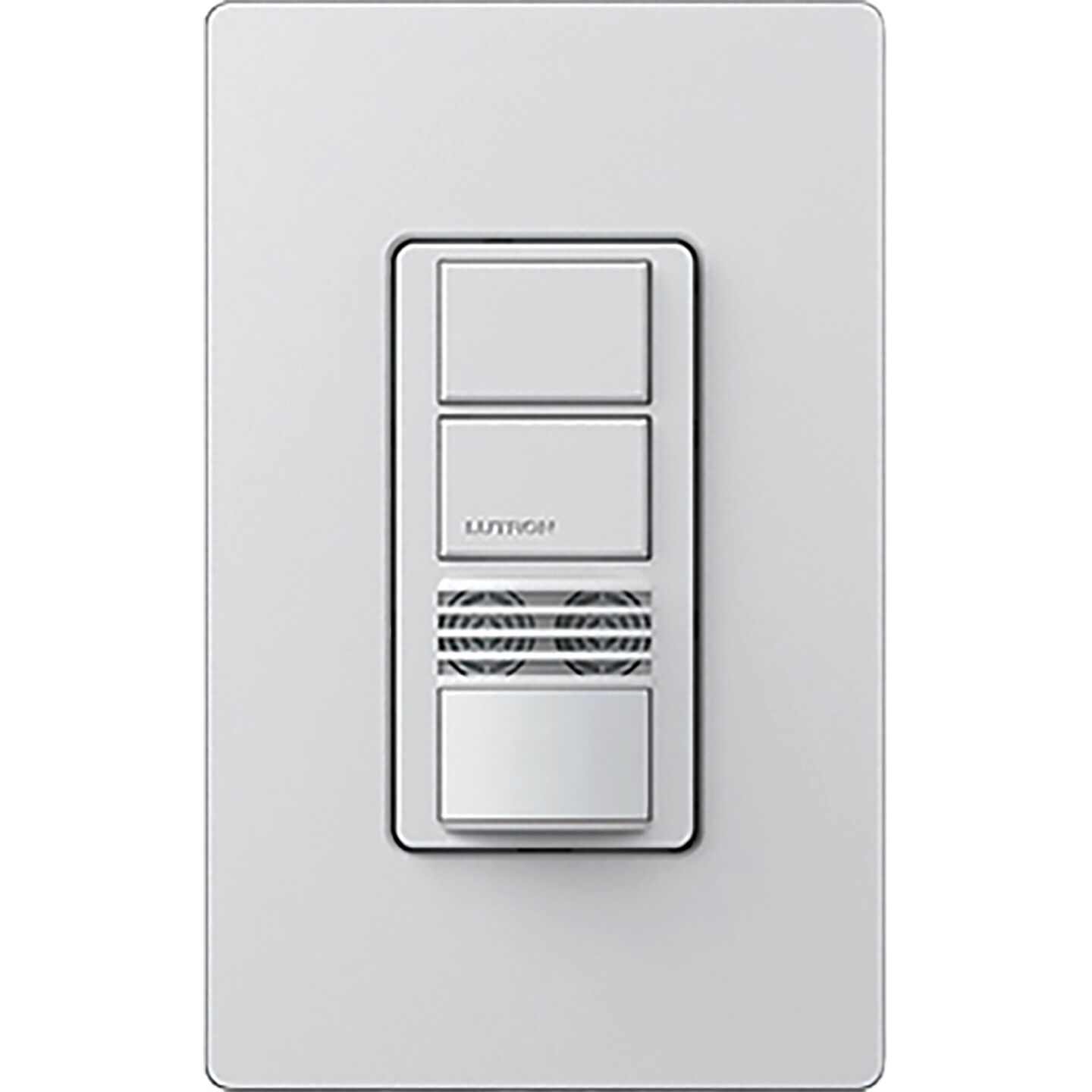

Maestro Commercial Dual Circuit Dual-Tech Sensor
Model # MS-A202-PD
Control two independent circuits with advanced dual-technology sensing that detects even the finest motion in conference rooms and offices.
Configure
Model # MS-A202-PD
Product Details
Overview
The Maestro Dual Circuit Dual-Tech Sensor provides independent control of two circuits through combined passive infrared and ultrasonic detection. Perfect for spaces requiring separate lighting zones or fan control, each circuit handles up to 6A lighting or 4.4A fans with individual timeout and sensitivity settings. The dual technologies ensure detection of typing, reading, and other fine movements. Smart ambient light detection and programmable settings optimize energy savings. Complies with code requirements for multi-level control. Single pole only. Ground or neutral required.
- Controls two circuits independently with different timeout and sensitivity per circuit
- Dual sensing technology detects very fine motion 2-3x better than standard sensors
- Each circuit rated for 6A lighting, 4.4A fans, or 4.4A combined fan/light loads
- 180-degree sensor coverage with 900 sq ft major and 400 sq ft minor motion detection
- Complies with Title 20/24, ASHRAE 90.1, and IECC requirements for multi-level control
- Easy-to-read programming buttons directly on sensor for quick adjustments
- 10 year warranty with product registration
One Dual Tech Sensor
Wall plate sold seperately
None
- Neutral wire not required
- Single pole and Multi-location
- Single line (hot) wire and two separate load wires required
Specifications & Documents
General Specifications
Color/Finish
Satin Palladium
Style & Type
Dual tap switches
Overall Dimensions
4.7 in x 3.4 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole and Multi-location
Wiring Requirements
Neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
6 A lighting
4.4 A fan
4.4 A combined fan/light
