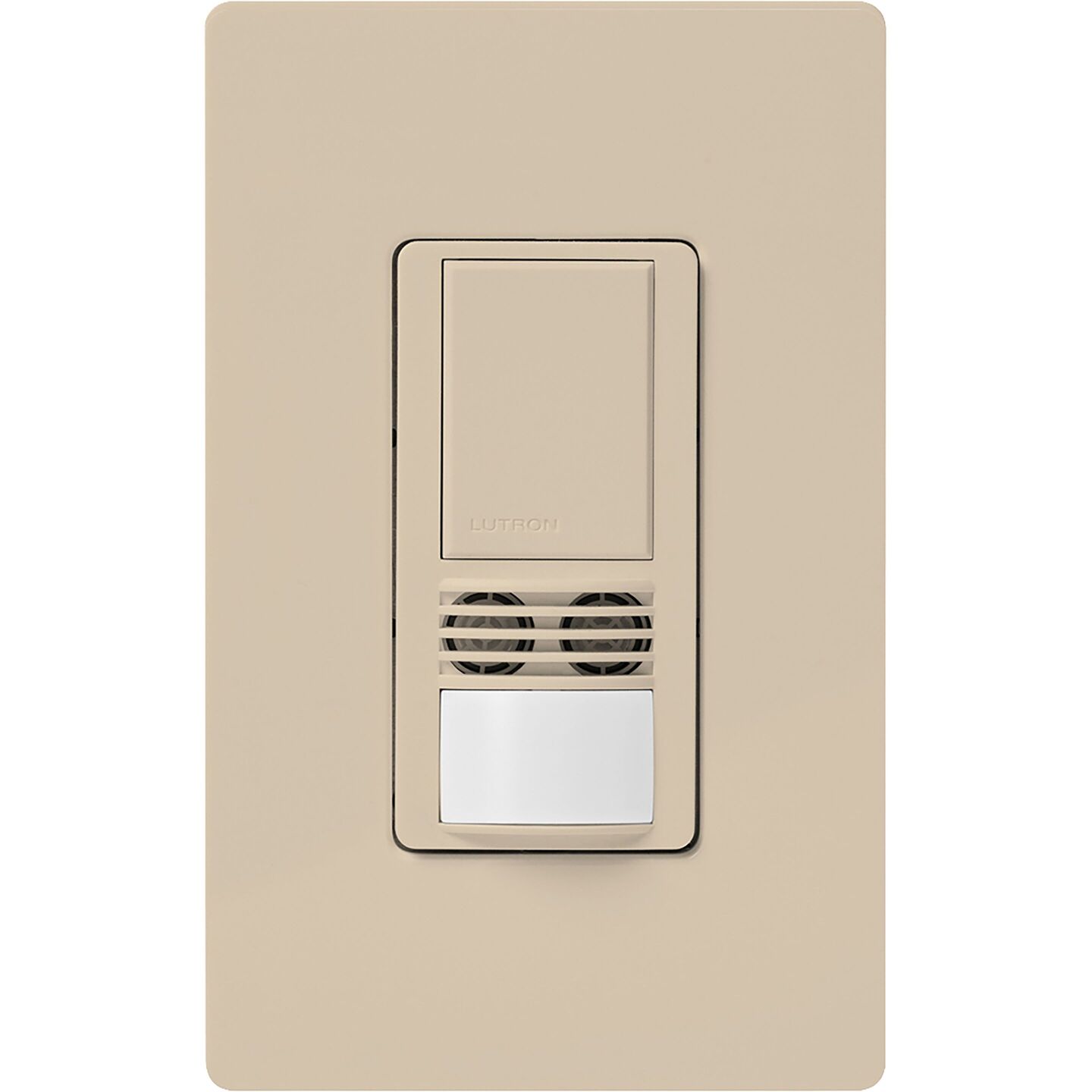

Maestro Commercial 3-Way Vacancy Dual-Tech Sensor
Model # MS-B102-V-TP
Add code-compliant vacancy sensing to 3-way applications with dual technology that requires manual activation in corridors and stairways.
Configure
Model # MS-B102-V-TP
Product Details
Overview
The Maestro 3-Way Vacancy Dual-Tech Sensor brings reliable manual-on, automatic-off detection to multi-location applications. Dual technology combining passive infrared and ultrasonic sensing ensures accurate vacancy detection, from walking to typing. Press to turn on manually from any switch location, then the sensor turns off automatically. Compatible with Maestro companion switches or existing 3-way switches. Controls up to 6A lighting or 4.4A fan loads with timeout options of 1, 5, 15, or 30 minutes. Neutral wire required for 120-277V operation.
- 3-way compatible design works with companion switches or existing 3-way wiring
- Dual sensing technology provides superior detection of major, minor, and fine motion
- Commercial-rated for 120-277V with 6A lighting or 4.4A fan load capacity
- Manual-on operation complies with Title 24 vacancy sensing requirements
- Adaptive zero-cross switching extends relay life by minimizing electrical stress
- Meets Title 20/24, ASHRAE 90.1, and IECC automatic shutoff requirements
- 10 year warranty with product registration
One 3-Way Vacancy Dual-Tech Sensor
Wall plate sold seperately
MS-B102-TP
- Neutral wire required
- Single pole, 3-way using existing switch, or Mult-location using MA-AS/MSC-AS
Specifications & Documents
General Specifications
Color/Finish
Satin Taupe
Style & Type
Tap switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole, 3-way using existing switch, or Mult-location using MA-AS/MSC-AS
Wiring Requirements
Neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
6 A lighting
4.4 A fan
4.4 A combined fan/light
