Maestro Motion Sensor Switch (Vacancy Only, 2A)
Model # MS-VPS2-BR

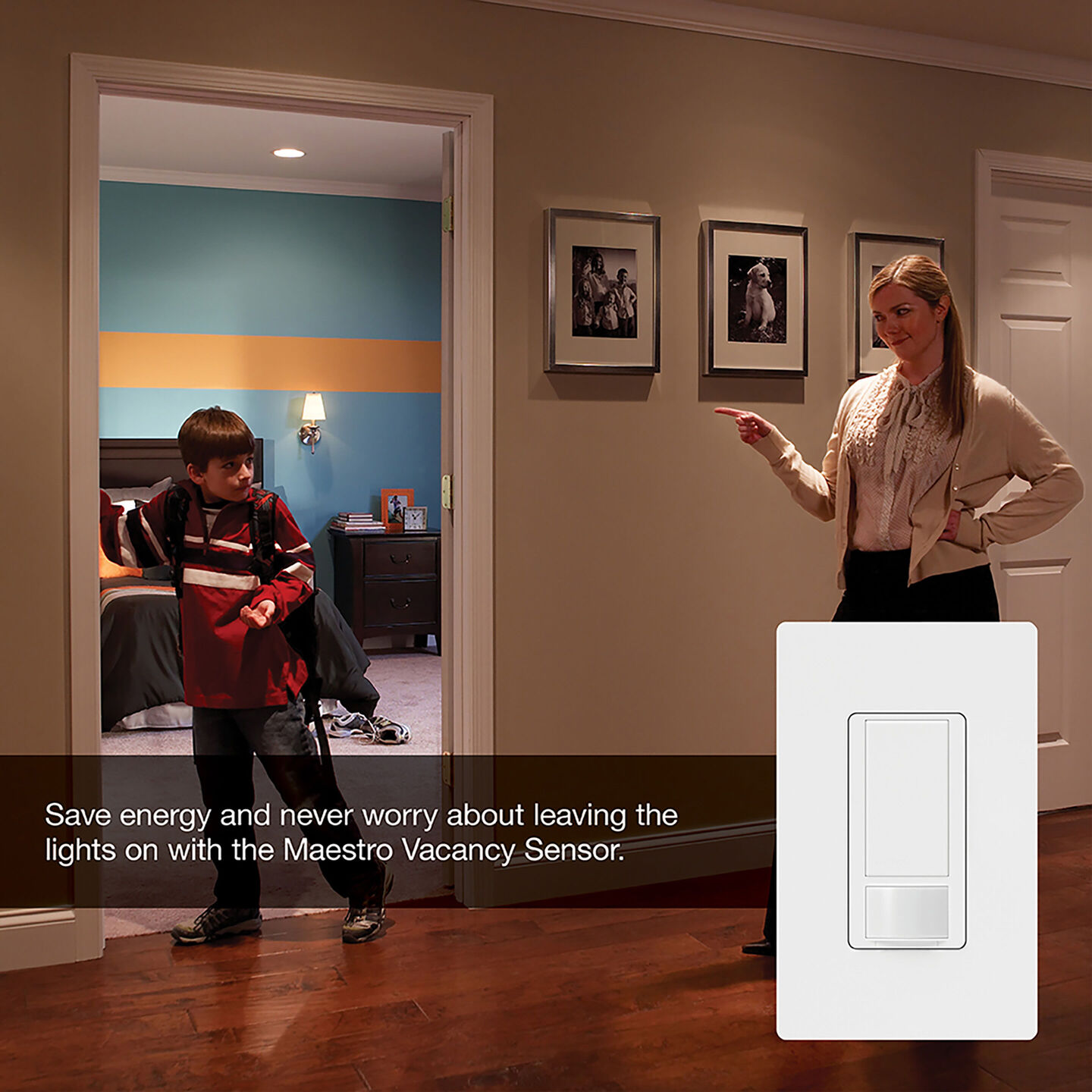

Save energy with vacancy sensing that requires manual activation at the switch while providing automatic shutoff when rooms are unoccupied.
Configure
Model # MS-VPS2-BR
Product Details
Overview
The Maestro Vacancy Sensor Switch provides manual-on, automatic-off lighting control through passive infrared technology. Turn lights on manually at the switch, then the sensor turns them off automatically after you leave. XCT sensing detects fine motion to prevent false shutoffs during reading or desk work. Perfect for bedrooms or TV rooms where automatic-on would be disruptive. Programmable timeout options of 1, 5, 15, or 30 minutes customize operation. Compatible with all bulb types up to 2A. Single pole only. Install using ground wire if no neutral available.
- Passive infrared sensor with 180-degree field of view covers 900 sq ft major and 400 sq ft minor motion
- XCT technology detects fine motion 2-3x better than competitive sensors for reliable operation

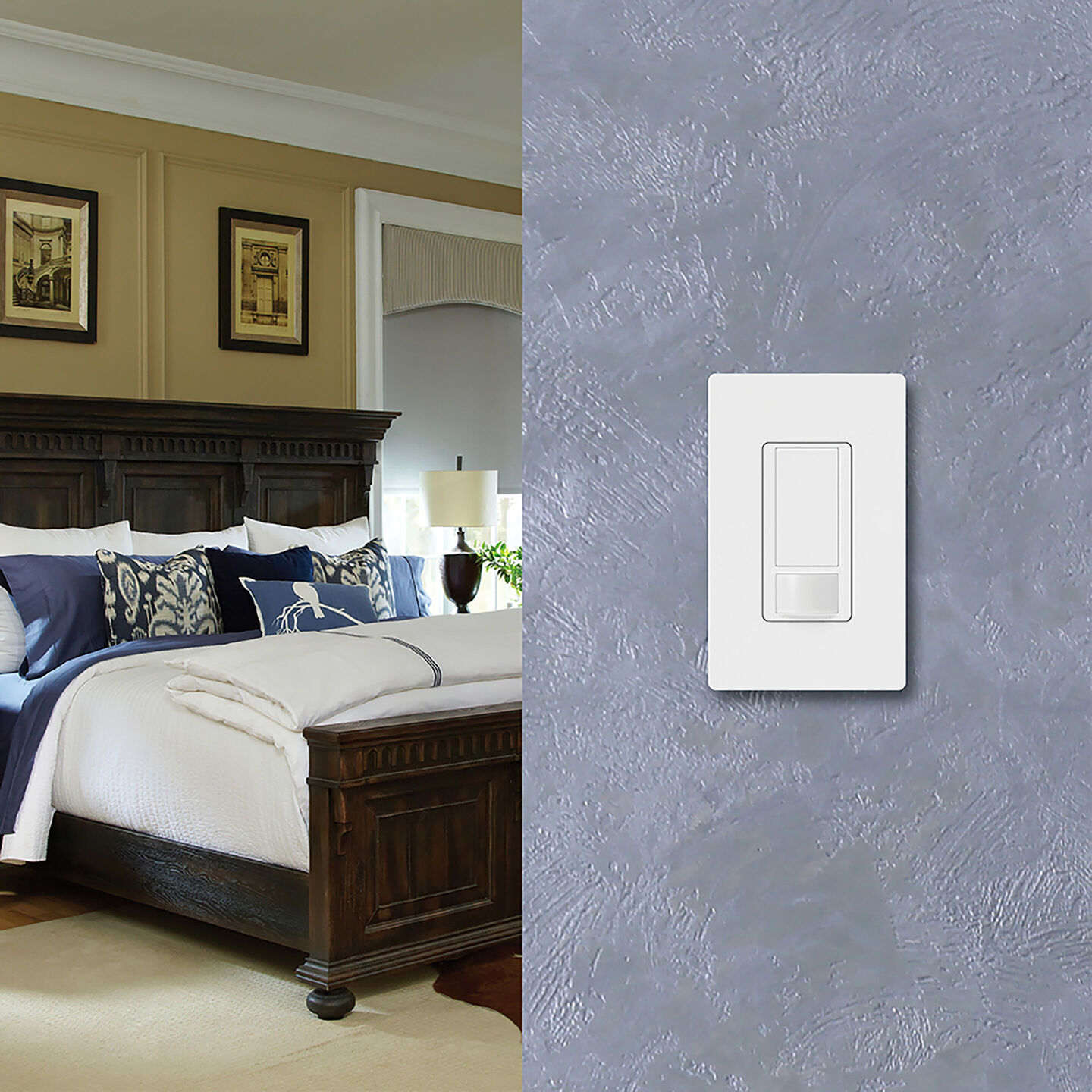

- Manual-on operation ideal for bedrooms, preventing unwanted activation from pets or movement
- Easy button programming customizes timeout duration and sensitivity settings
- Complies with Title 24 requirements for vacancy sensing in residential applications
- Tamper-resistant lens prevents damage while maintaining optimal sensing performance
- 10 year warranty with product registration
One Motion Sensor 2A Vacancy Only Switch
Wall plate sold seperately
None
- Flexible Install: Install using the ground wire if no neutral is available in your home
- Single Pole
- Easy installation in as little as 15 minutes
Specifications & Documents
General Specifications
Color/Finish
Gloss Brown
Style & Type
Tap switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single Pole
Wiring Requirements
Flexible Install: Install using the ground wire if no neutral is available in your home
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150 W LED
250 W incandescent/halogen/ELV
200 W MLV
2 A ballasts
