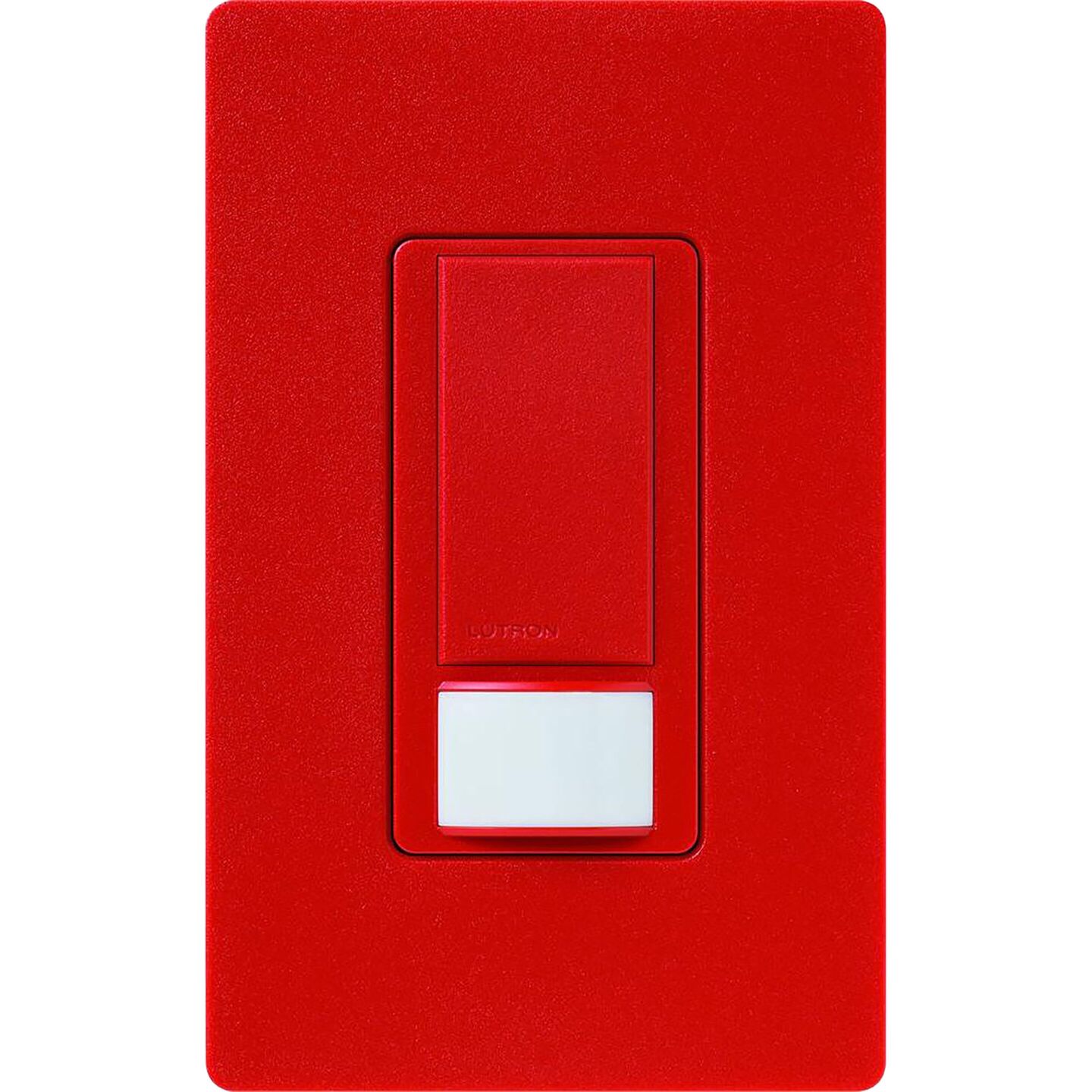

Maestro Motion Sensor Switch (Vacancy Only, 5A/3A)
Model # MS-VPS5M-HT
Save energy with vacancy sensing that requires manual activation at the switch while providing automatic shutoff for lights or fans when unoccupied.
Configure
Model # MS-VPS5M-HT
Product Details
Overview
The Maestro Vacancy Sensor Switch provides manual-on, automatic-off control for lights or exhaust fans. Turn on manually when entering a room, then the sensor automatically turns off after detecting vacancy. Works with 5A lighting or 3A fan loads in single pole or multi-location applications with existing 3-way switches or Maestro companions. XCT technology detects fine motion to prevent false shutoffs. Choose timeout settings of 1, 5, 15, or 30 minutes. Perfect for bedrooms where automatic-on would disturb sleep. No neutral wire required.
- Controls up to 600W incandescent/halogen, 150W LED, or 3A general purpose fans
- Multi-location compatible with existing 3-way switches or Maestro companion switches
- 180-degree sensor coverage with 900 sq ft major motion and 400 sq ft minor motion detection
- Manual-on operation prevents unwanted activation from pets or nighttime movement
- Complies with California Title 24 and other vacancy sensing code requirements
- Installs in 15 minutes using existing wiring with ground or neutral connection
- 10 year warranty with product registration
One Motion Sensor 5A/3A Vacancy Switch
Wall plate sold seperately
None
- Neutral wire required
- Single Pole or Multi-Location with Lutron Maestro Companion Switch (MA-AS/MSC-AS)
- Compatible with one existing 3-way switch
- Wire-lead installation
Specifications & Documents
General Specifications
Color/Finish
Satin Hot
Style & Type
Tap switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single Pole or Multi-Location with Lutron Maestro Companion Switch (MA-AS/MSC-AS); Compatible with one existing 3-way switch
Wiring Requirements
Neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
5 A lighting
3 A fan
3 A combined light/fan
