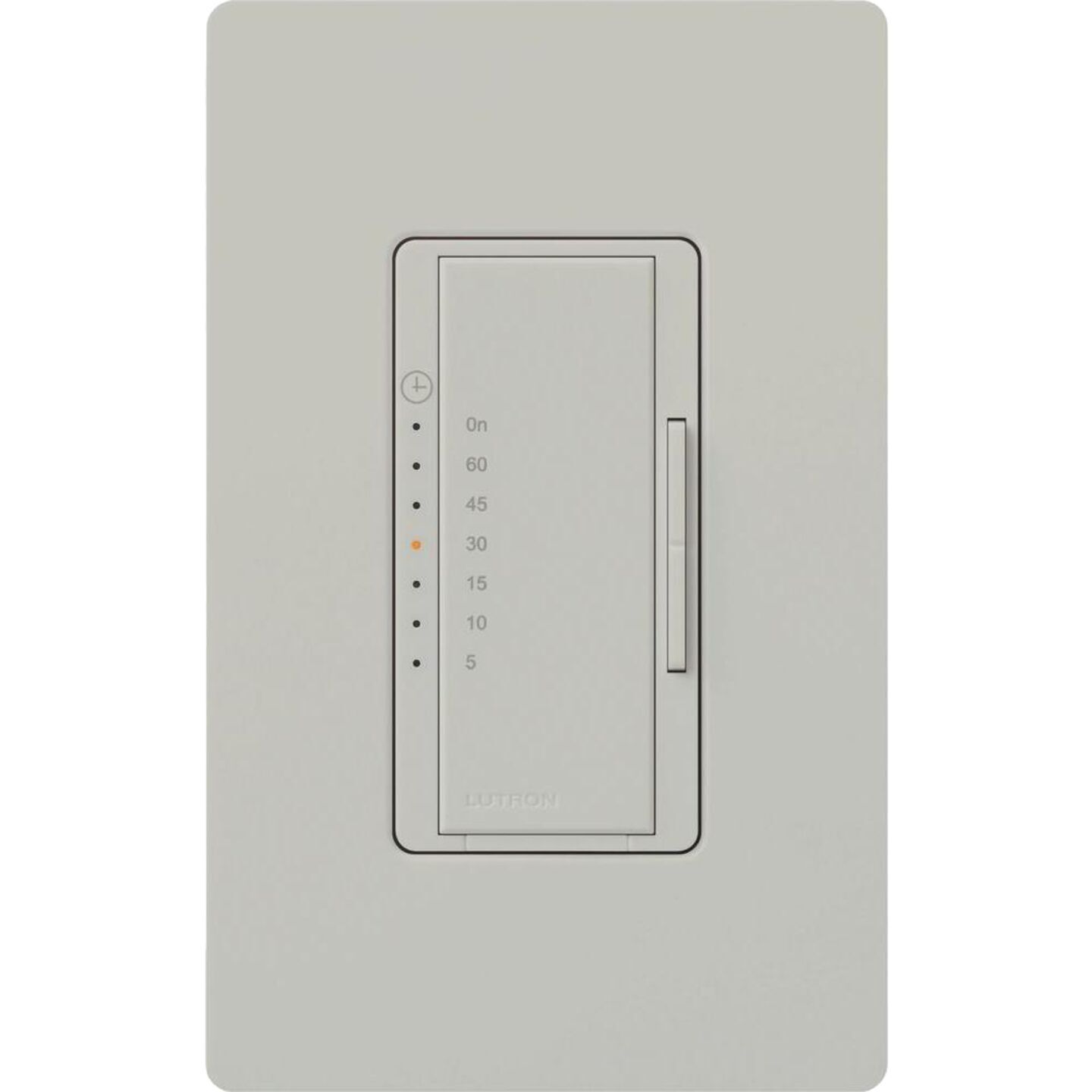

Timer Switch
Model # MA-T51MN-PD
Add convenience and avoid energy waste by putting an exhaust fan or lights on a timer with run times of 5, 10, 15, 30, 45, and 60 minutes.
Configure
Model # MA-T51MN-PD
Product Details
Overview
The Timer Switch puts lights and exhaust fans on a timer. Choose settings between 5-60 minutes, preventing energy waste from devices left running. Compatible with multiple loads: 150W LED, 600W incandescent/halogen, 450W MLV, or 3A fans, making it ideal for bathroom exhaust fans or garage lights. Operation is simple: tap once for timed operation or twice for continuous use. Side rocker adjusts duration and orange indicator lights show remaining time. Requires a neutral wire.
- Tap once to start timer or double tap for always on
- Use raise/lower rocker to adjust countdown time from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
- Rated to work with up to 150W LED bulbs, 600W incandescent/halogen/ELV, 450W MLV or 3A general purpose fans
- 5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
- Orange LEDs indicate timer duration with bottom LED blinking for one-minute warning
- 10 year warranty with product registration
One Timer Switch
Wall plate sold seperately
None
- Neutral wire required
- Single pole/Multi-location
- If controlling lights or exhaust fan from more than one location, use one timer with Maestro companion switch(es), model MA-AS
- Installs in 15 minutes or less
Specifications & Documents
General Specifications
Color/Finish
Satin Palladium
Style & Type
Decorator/Rocker
Tap switch
Overall Dimensions
4.5 in x 2.3 in x 2.3 in (h x w x d)
Mounting Type
In-wall
Wiring Type
Single pole/Multi-location
Wiring Requirements
Neutral wire required
Indoor / Outdoor
Indoor
Warranty
10 years with product registration
Electrical Specifications
Voltage
120 V~ 50/60 Hz
Ratings
150 W LED
600 W incandescent/halogen
450 W MLV
600 W ELV
5 A fluorescent
3 A fan
No minimum load requirement
