Alisse Square Keypad (1-2 Column)
Hand-finished solid brass keypad with 1-6 halo-illuminated buttons for subtle status indication that accents signature metal finishes.
Configure
Product Details
Overview
Where traditional craftsmanship meets advanced control, Alisse square keypads deliver seamless operation in a heritage-inspired one- or two-column form factor. Each keypad begins as solid brass, then receives hand-applied finishes and post-finishing treatments that resist fingerprints while creating subtle variations that make every piece unique—developing distinctive patinas over time that enhance their artisanal character. A subtle halo of light surrounds each button, providing status indication while enhancing each metal's natural, hand-crafted beauty with warm or cool lighting matched to complement each finish. Single-column configurations accommodate up to 3 buttons while double-column extends to 6, all mounting to a single QS base unit that enables configuration changes without cutting additional backboxes. The Alisse temporary base unit cover is designed to allow system installation without exposing the keypad to potential damage during construction, enabling wiring validation and late-stage finish selection. Engineered from the start to work with Lutron's most advanced control systems, Alisse unites the timelessness of heritage artistry with the elegance of native control.

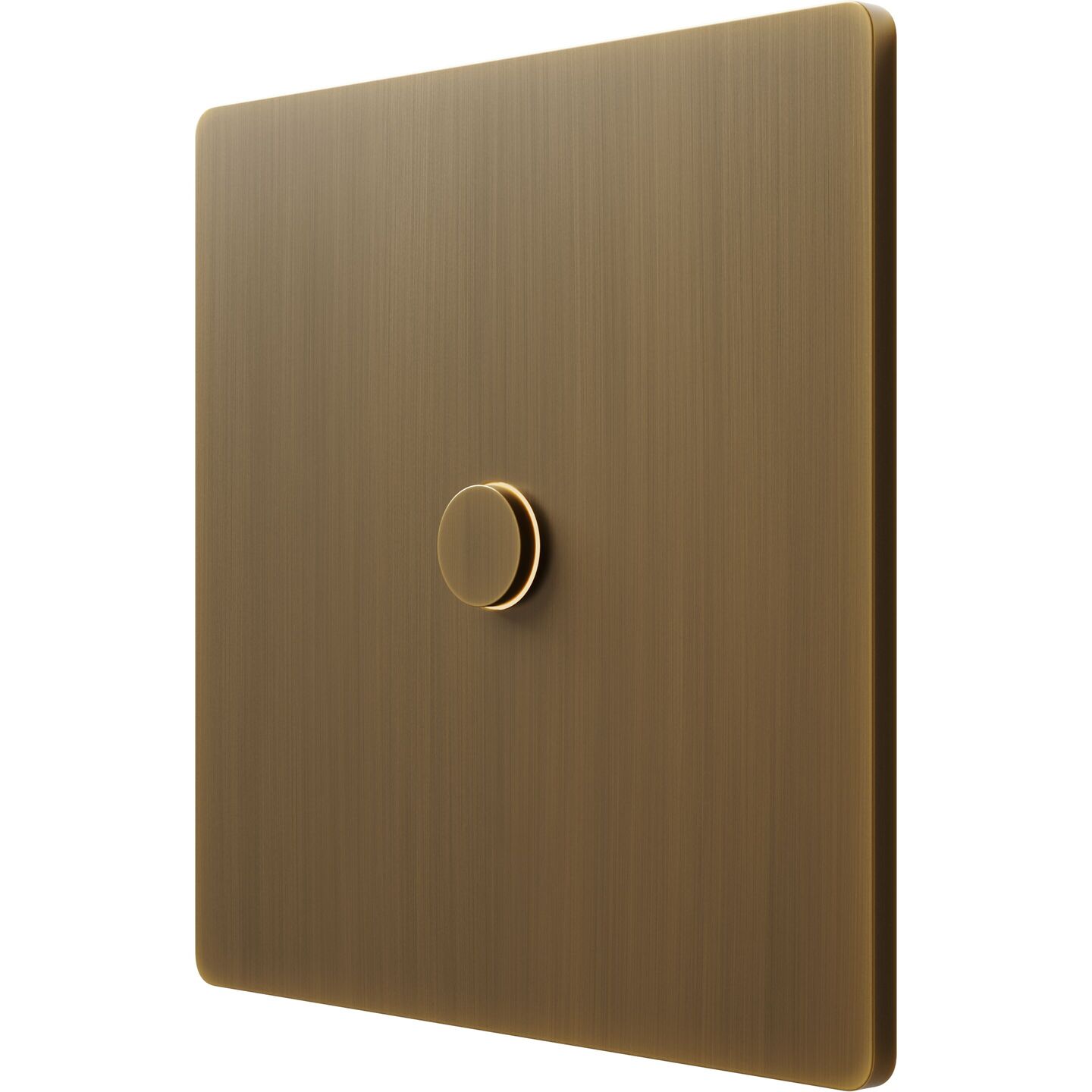

- Solid brass construction hand-finished in 11 signature metals including Aged Brass, Aged Bronze, and Brushed Brass finishes
- Single-column (1-3 button) or double-column (up to 6 button) configurations mount to one QS base unit for flexible design
- Circular buttons deliver smooth actuation with confident tactile response for precise, comfortable control
- Status-indicating halo illumination uses warm tones to accentuate brass and bronze finishes or cool tones to complement chrome and nickel craftsmanship

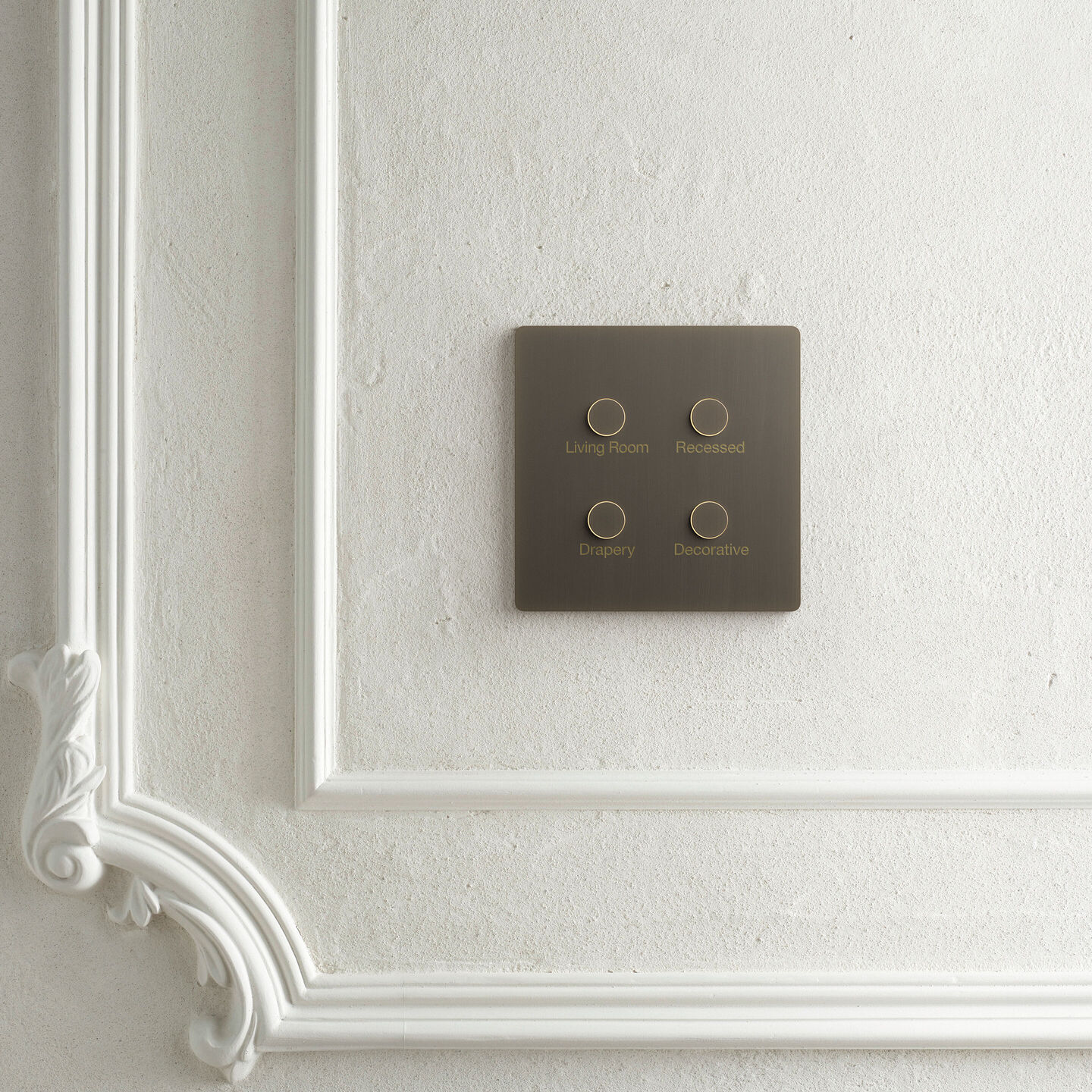

- Bespoke front unit with custom text and icon engraving offers personalization for each installation
- Low-voltage QS wiring provides seamless HomeWorks and myRoom XC integration with no additional wiring complexity
Optional custom text or icons
HomeWorks
myRoom XC
- Up to two columns with up to three backlit pushbuttons in each
- Typical square style backbox dimensions: 3 in H x 3 in W x ≥1.4 in D (75 mm H × 75 mm W × ≥35 mm D)
- Typical round style backbox dimensions: 2.7 in W x ≥1.4 in D (68 mm W × ≥35 mm D)
- Provided (shallow) QS Connector MUST be used for installations with backboxes - 1.4 in (35 mm) D and 1.8 in (45 mm) D
- It is highly recommend to use the (shallow) connector for backboxes > 1.8 in (45 mm) D to prevent interference
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
HomeWorks
myRoom XC
Retrofit Compatibility
Flanged square or round backboxes may also be used for retrofit applications or to meet local standards
Colors and Finishes
7 Signature Metal finishes
4 Matte finishes
Button Configuration & Count
1-3 buttons, 1-2 gang
Engraving Options
Optional custom text or icons
Status Indicator
Indicated through intesity of backlighting
Connectivity
Connection Type
low-voltage wire
QS Link Wire Specifications
QS Link Wire, 1 twisted shielded pair, 22-18 AWG
RF Frequency & Range
QS Link Wire, 1 twisted shielded pair, 22-18 AWG
Dimensions Specifications
H × W × D
H 3.55 in x W 3.55 in x D 1.14 in
Wallbox Type
Square, flangeless/Square flanged/Round
Wallbox Depth Required
Greater than 1.4 in
Electrical Specifications
Operating Voltage
24-36 V (from QS link)
Certifications Specifications
Environmental Rating
Indoor use only, IP20
Safety (UL, cUL)
Lutron Quality Systems registered to ISO 9001:2015. cULus, CE, NOM, FCC, ICES-003, and RoHS Compliant
ADA Compliance
Yes
Warranty
8 years against defects in materials/workmanship
