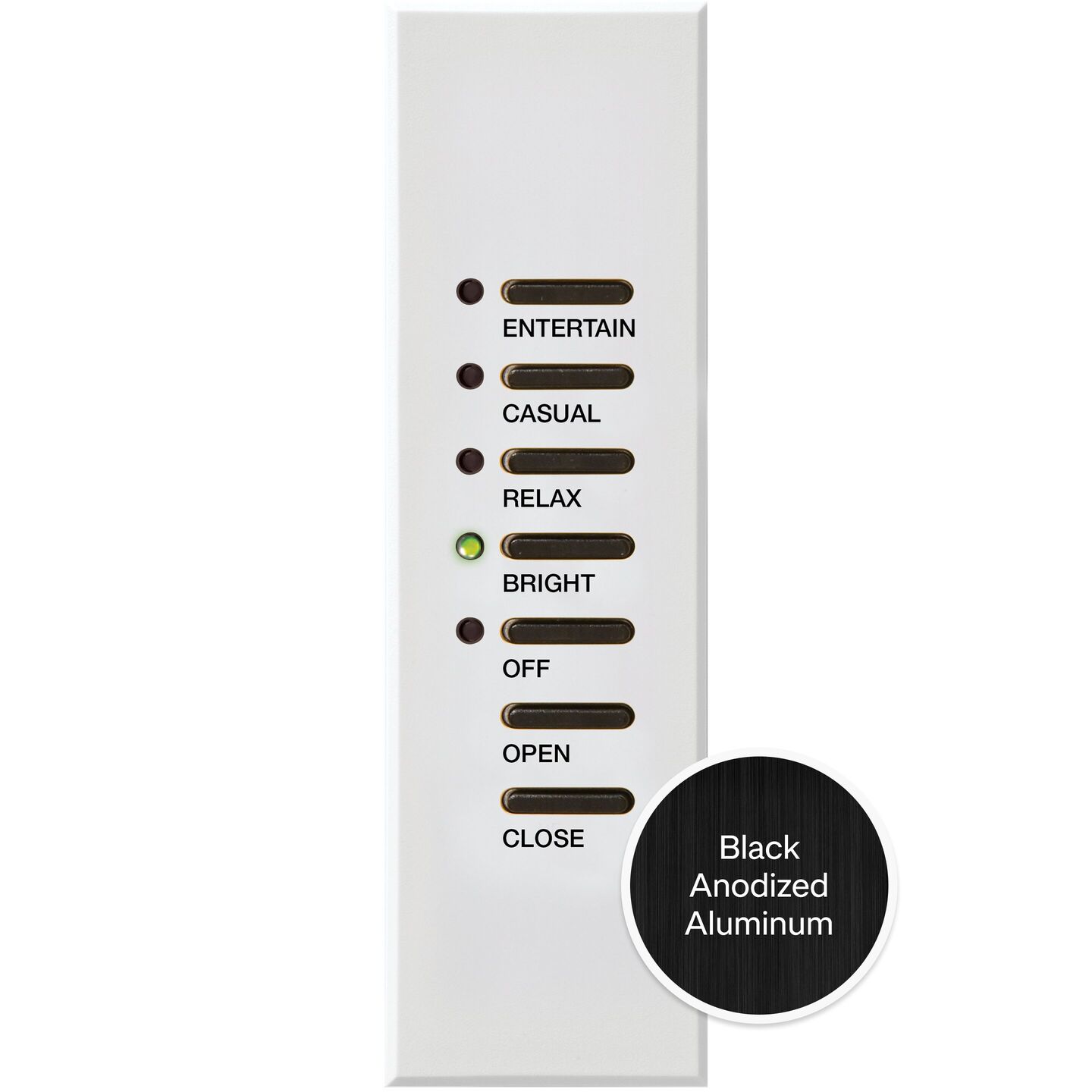

HomeWorks Architrave Narrow Keypad
Minimal-profile architectural keypad featuring raised buttons, LED indicators, and the narrowest form factor available.
Configure
Product Details
Overview
Built for installations requiring minimal wall presence, Architrave Narrow keypads deliver sophisticated control in Lutron's slimmest form factor. Virtually disappearing into the wall surface, these keypads take up almost no visual space, making them ideal for modern minimalist interiors or historically sensitive renovations where controls must remain nearly invisible. The raised button design creates subtle tactile landmarks that are easy to locate by touch, while LED indicators positioned beside each button provide clear visual feedback during operation. Available in 5-button or 7-button configurations, Architrave handles complex scene control despite its small footprint. The extremely low-profile design sits nearly flush with the wall surface, creating an architectural element rather than an applied device. Engineered from the start for Lutron's most advanced control systems, Architrave Narrow represents the ultimate refinement in space-conscious design.
- Architectural metal finishes including Chrome, Brass, Bronze, Nickel, plus Anodized Aluminum and polymer options
- Choose between 5-button or 7-button configurations to match control requirements while maintaining minimal profile
- Raised buttons create subtle tactile definition for confident operation without adding visual bulk
- LED indicators positioned left of each button provide programming feedback and operational confirmation
- Custom engraving available for clear identification of scenes, zones, and functions
- Low-voltage QS wiring ensures reliable HomeWorks integration in the most space-constrained installations
Optional custom text or icons
HomeWorks
- 1-gang of 5 or 7 buttons
- ArchitraveTM Wallbox P/N 241399 (sold separately)
- 4.4 in (111.76 mm) tall x 1.25 in (31.75 mm) wide x 2.75 in (69.85 mm) deep
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
HomeWorks
Colors and Finishes
12 Signature Metal finishes
1 Architectural Matte finish
Button Configuration & Count
5 or 7 buttons with optional raise lower; 1 gang
Engraving Options
Optional custom text or icons
Status Indicator
Green status LEDs
Connectivity
Connection Type
low-voltage wire
QS Link Wire Specifications
QS Link Wire, 1 twisted shielded pair, 22-18 AWG
RF Frequency & Range
QS Link Wire, 1 twisted shielded pair, 22-18 AWG
Dimensions Specifications
H × W × D
H 4.5 in x W 1.34 in x D 1.65 in
Wallbox Type
Custom architrave backbox
Wallbox Depth Required
2.75 in (69.85 mm)
Electrical Specifications
Operating Voltage
24–36 V- 30 mA
Certifications Specifications
Environmental Rating
Indoor use only, IP20
Warranty
Limited Warranty
