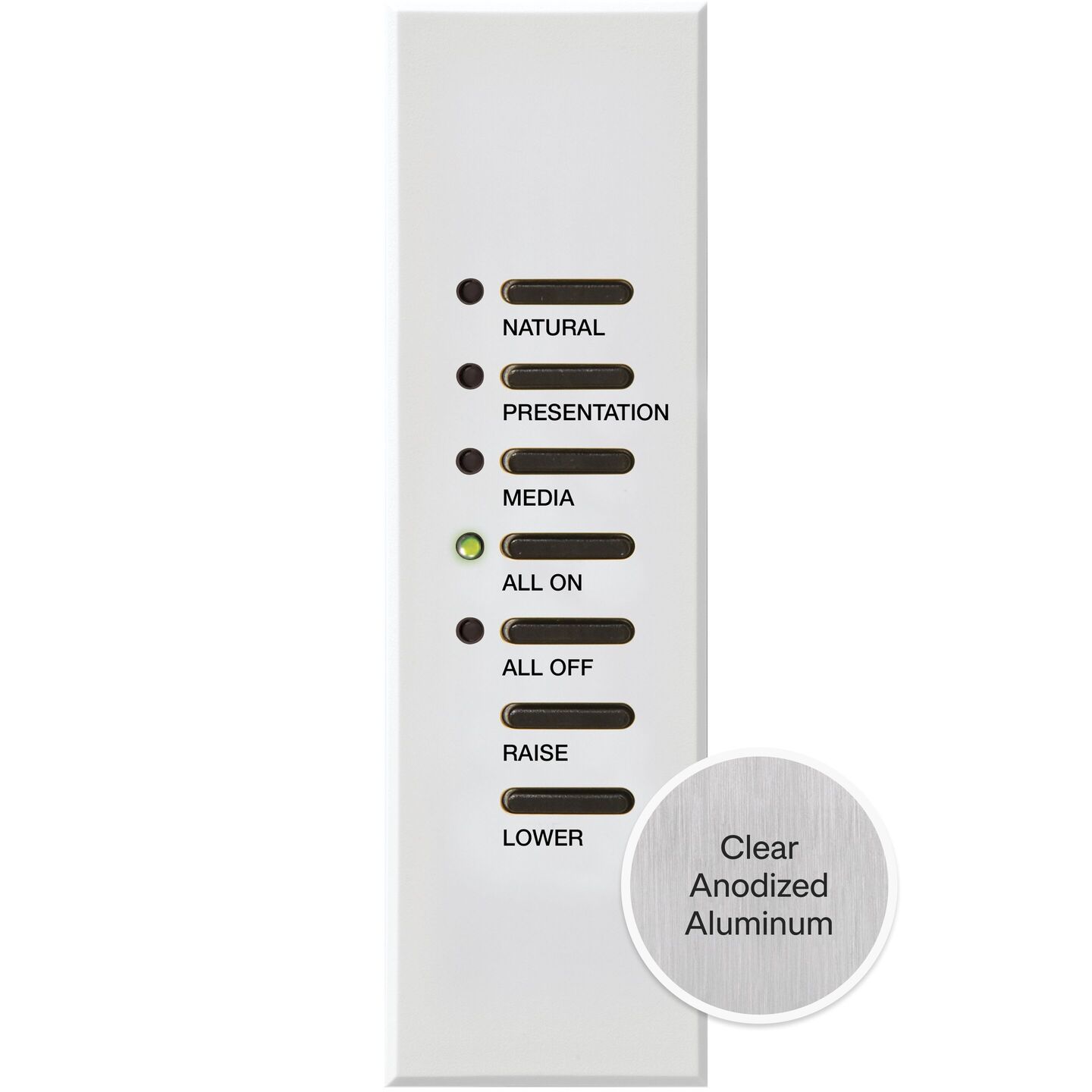

Athena/myRoom XC Architrave Narrow Keypad
Low-profile architectural keypad featuring raised buttons, LED indicators, and refined minimal aesthetic.
Configure
Product Details
Overview
Designed for spaces requiring discrete control, Architrave keypads provide sophisticated functionality through an exceptionally low-profile design. Taking up minimal wall space while maintaining comfortable button spacing, this configuration balances discretion with usability for spaces where controls should complement rather than dominate. The raised button design offers subtle tactile guidance for effortless operation, while LED indicators beside each button deliver clear visual feedback. Available in 5-button or 7-button configurations, Architrave manages multiple scenes and zones through its distilled interface. The low-profile construction sits nearly flush against the wall, creating a refined architectural detail that enhances rather than interrupts wall surfaces. Engineered from the start for Lutron's most advanced control systems, Architrave achieves the perfect balance of minimal presence and maximum capability.
- Architectural metal finishes including Chrome, Brass, Bronze, Nickel, plus Anodized Aluminum and polymer options
- Choose between 5-button or 7-button configurations for comprehensive scene control in minimal space
- Raised buttons provide tactile feedback while maintaining the low-profile aesthetic
- LED indicators positioned left of each button ensure clear programming and operational feedback
- Custom engraving options enable personalized labeling for intuitive control
- Low-voltage QS wiring delivers reliable HomeWorks integration
Optional custom text or icons
Athena
myRoom XC
- 1-gang of 5 or 7 buttons with optional raise lower
- ArchitraveTM Wallbox P/N 241399 (sold separately)
- 4.4 in (111.76 mm) tall x 1.25 in (31.75 mm) wide x 2.75 in (69.85 mm) deep
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Athena
myRoom XC
Colors and Finishes
12 Signature Metal finishes
1 Architectural Matte finish
Button Configuration & Count
5 or 7 buttons with optional raise lower; 1 gang
Engraving Options
Optional custom text or icons
Status Indicator
Green status LEDs
Connectivity
Connection Type
low-voltage wire
QS Link Wire Specifications
QS Link Wire, 1 twisted shielded pair, 22-18 AWG
RF Frequency & Range
QS Link Wire, 1 twisted shielded pair, 22-18 AWG
Dimensions Specifications
H × W × D
H 4.5 in x W 1.8 in x D 1.65 in
Wallbox Type
Custom architrave backbox
Wallbox Depth Required
2.75 in (69.85 mm)
Electrical Specifications
Operating Voltage
24–36 V- 30 mA
Certifications Specifications
Environmental Rating
Indoor use only, IP20
Warranty
8 years against defects in materials/workmanship
