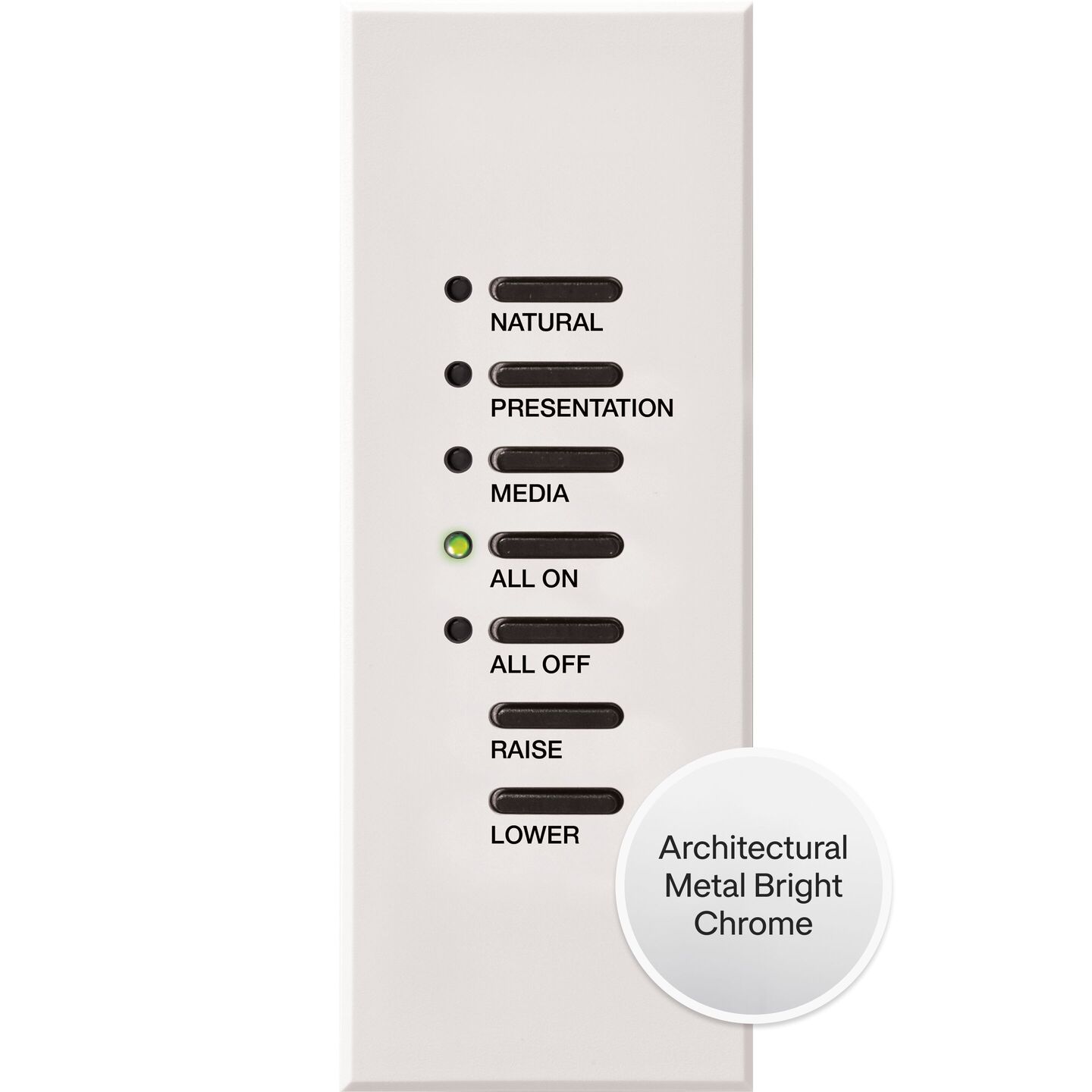

Athena/myRoom XC Architrave Keypad
Low-profile architectural keypad featuring raised buttons, LED indicators, and commercial-grade reliability.
Configure
Product Details
Overview
Designed for commercial environments requiring discrete architectural integration, Architrave keypads provide professional control through an exceptionally low-profile form factor. Occupying minimal wall space while delivering comprehensive functionality, this configuration suits executive offices, boutique hotels, and cultural institutions where controls must remain understated. The raised button design enables confident operation through subtle tactile differentiation, while LED indicators beside each button ensure reliable feedback for commercial use. Available in 5-button or 7-button configurations, Architrave handles sophisticated scene and zone management within its refined profile. The low-profile construction sits nearly flush with wall surfaces, maintaining architectural continuity in professionally designed spaces. Engineered from the start for commercial applications, Architrave delivers Athena and myRoom XC capability where minimal visual impact is paramount.
- Architectural metal finishes in Chrome, Brass, Bronze, Nickel, plus durable polymer options for commercial use
- Choose 5-button or 7-button configurations to match commercial control requirements
- Raised buttons provide essential tactile feedback for reliable operation in all lighting conditions
- LED indicators positioned left of each button deliver clear feedback for commercial reliability
- Custom engraving required at order provides professional labeling for commercial applications
- Low-voltage QS wiring ensures robust Athena and myRoom XC integration with minimal architectural impact
Optional custom text or icons
Athena
myRoom XC
- 1-gang of 5 or 7 buttons with optional raise lower
- ArchitraveTM Wallbox P/N 241399 (sold separately)
- 4.4 in (111.76 mm) tall x 1.25 in (31.75 mm) wide x 2.75 in (69.85 mm) deep
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Athena
myRoom XC
Colors and Finishes
9 Architectural Metal Finishes
3 Anodized Aluminum Finishes
1 Architectural Matte Finish
Button Configuration & Count
5 or 7 buttons with optional raise lower; 1 gang
Engraving Options
Optional custom text or icons
Status Indicator
Green status LEDs
Connectivity
Connection Type
low-voltage wire
QS Link Wire Specifications
Accepts up to two 18 AWG (1.0 mm)
RF Frequency & Range
Accepts up to two 18 AWG (1.0 mm)
Dimensions Specifications
H × W × D
H 4.5 in x W 1.8 in x D 1.65 in
Wallbox Type
Custom architrave backbox
Wallbox Depth Required
2.75 in (69.85 mm)
Electrical Specifications
Operating Voltage
24–36 V- 30 mA
Certifications Specifications
Environmental Rating
32 °F to 104 °F (0 °C to 40 °C). Relative humidity less than 90% non-condensing.
Warranty
8 years against defects in materials/workmanship
