Athena Touch Screen
Professional digital control interface featuring 5-inch capacitive touch display for comprehensive lighting and shade management.
Configure
Product Details
Overview

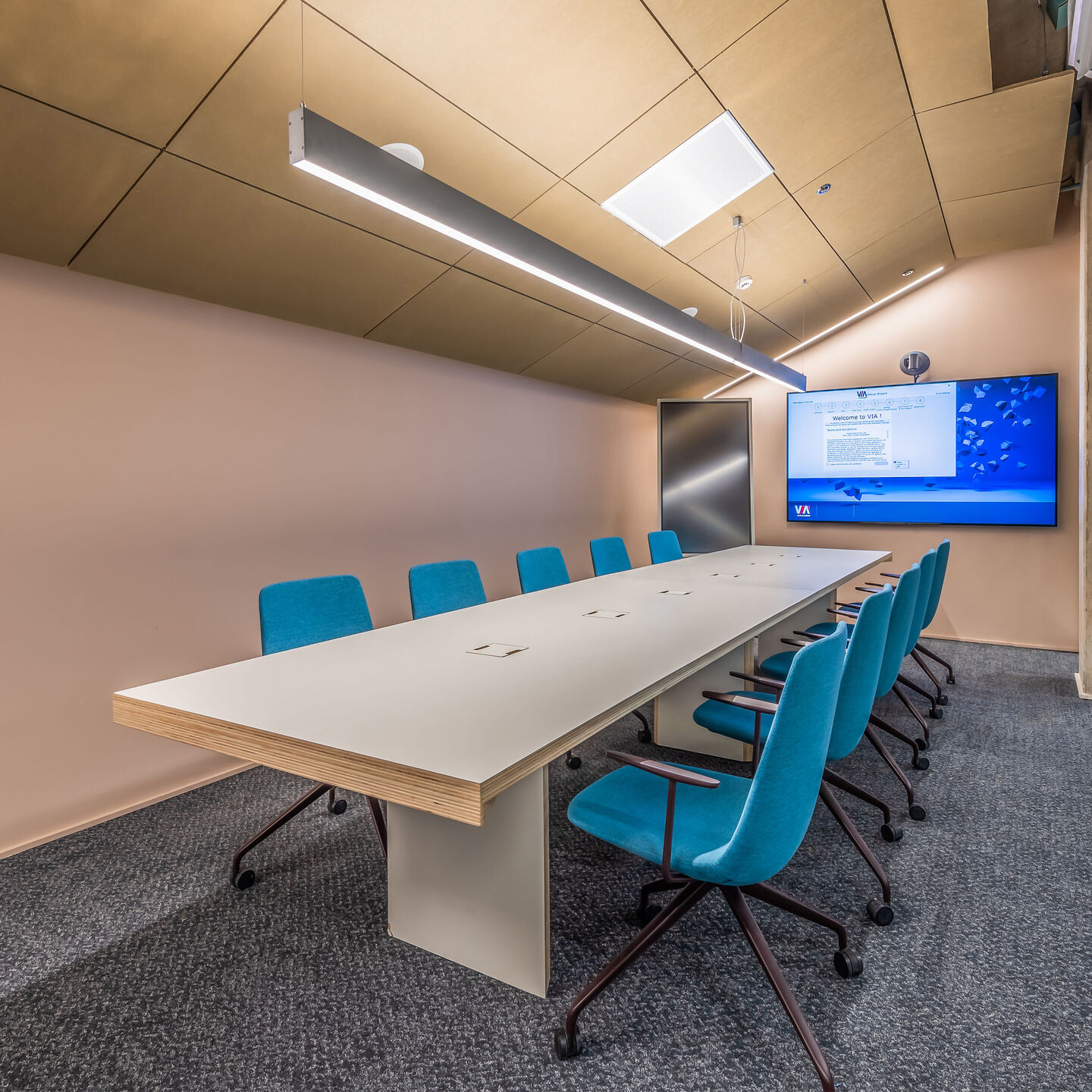

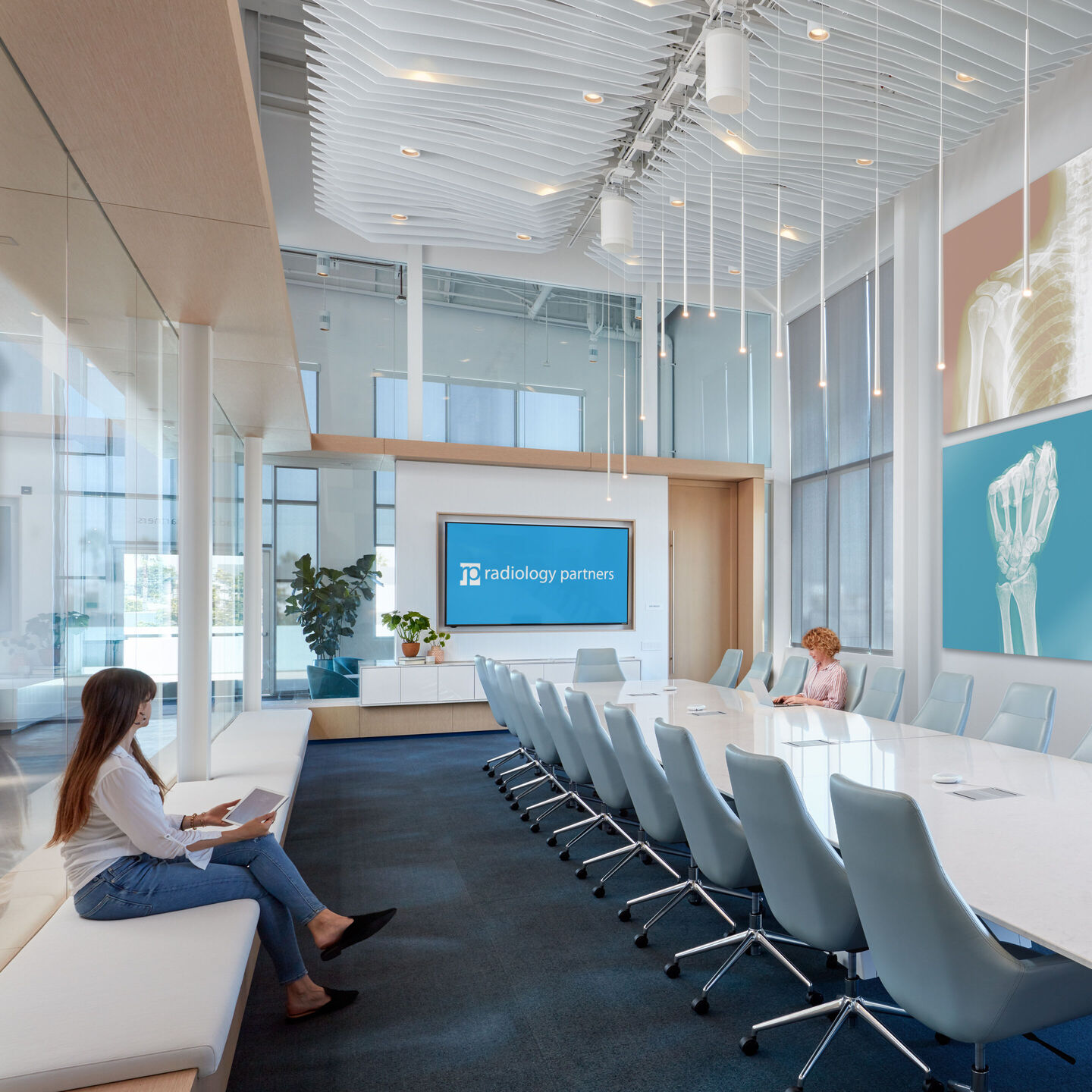

Purpose-built for dynamic commercial spaces, the Athena Touch Screen delivers comprehensive lighting and shade control through an elegant digital interface. The 5-inch capacitive display eliminates wall clutter by consolidating multiple control points into one streamlined touchscreen, ideal for restaurants, ballrooms, houses of worship, and corporate environments. On-screen setup through a guided interface requires no additional software, while intuitive swipe gestures make navigation effortless for users. Advanced capabilities include light intensity control, color temperature adjustment for compatible loads including Athena Wireless Node fixtures, and full color tuning for Ketra systems, plus group-level management of Athena-compatible shades. Admin PIN protection prevents unauthorized changes in public spaces, while dark and light display modes adapt to ambient conditions. Engineered exclusively for Athena systems, the Athena Touch Screen mounts in standard single-gang openings and operates via reliable PoE power for maintenance-free commercial performance. © Kim Rodgers Photography & Photo © Maurício Moreno

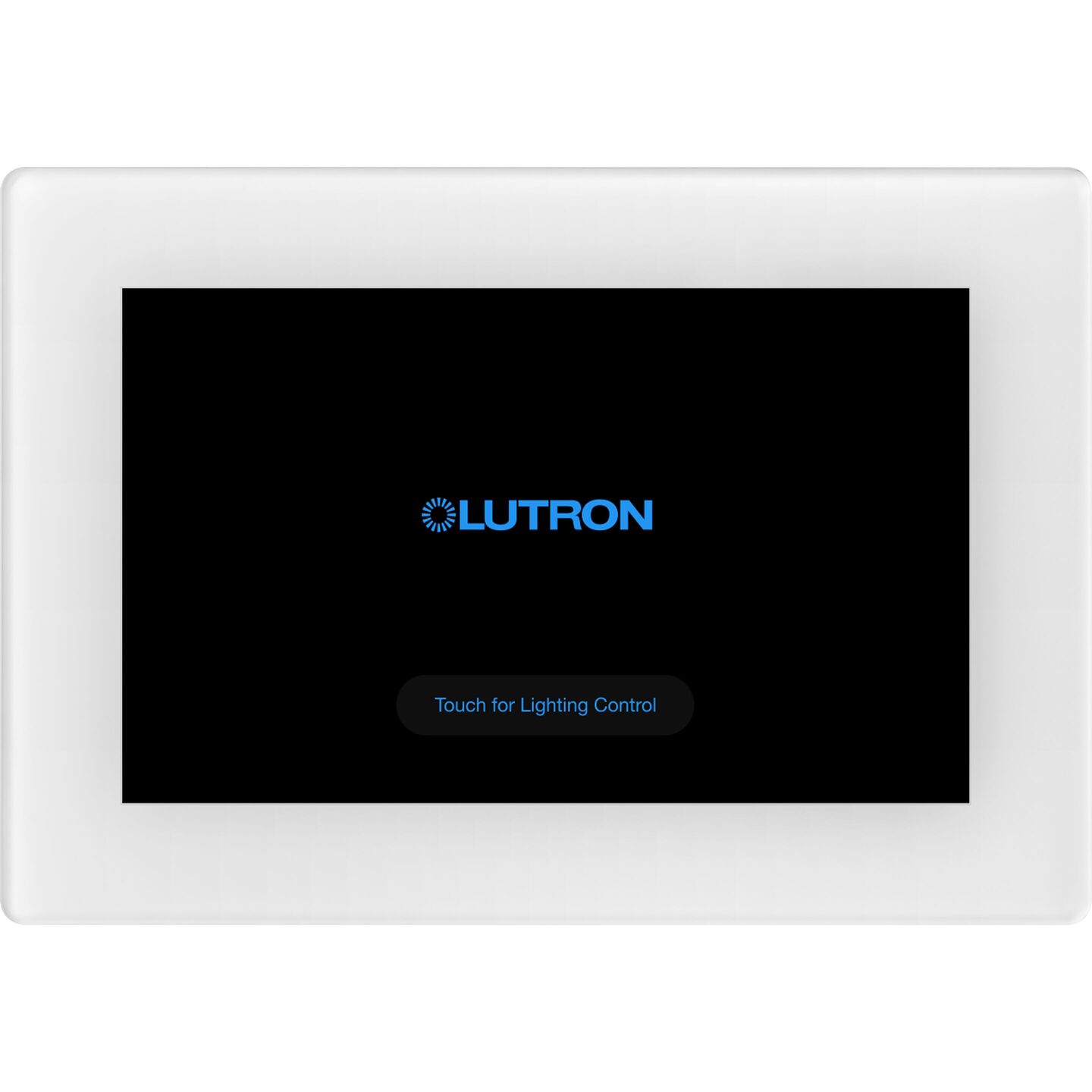

- White glass bezel frames a 5-inch diagonal capacitive display with 800x480 resolution for clear, responsive control

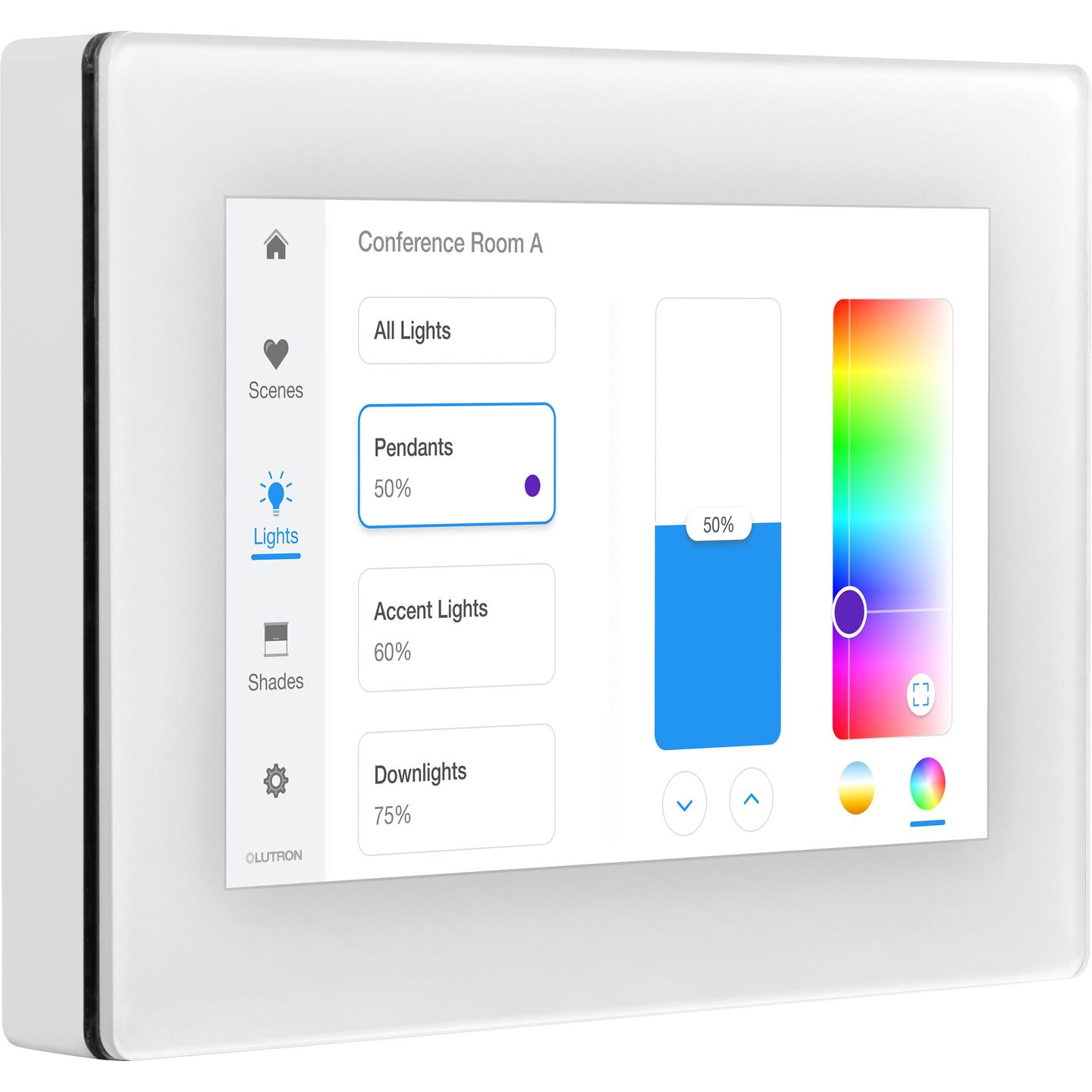

- Comprehensive lighting control includes intensity, color temperature for Ketra, Athena Wireless Node fixtures, and DALI Type 8, plus full color for Ketra loads and shade control
- Touch gesture support with intuitive swiping enables easy navigation between areas, scenes, and zone controls
- Display modes include manually selected dark or light options with support for seven languages including English, Spanish, and Chinese
- Admin and User PIN functionality restricts control abilities, preventing unauthorized changes in commercial environments
- Power over Ethernet operation reduces power requirements in the backbox while supporting up to 5 touchscreens per Athena processor
Optional custom text or icons
Athena
- 5 in (127 mm) diagonal capacitive touch display
- Square 4 in (102 mm) U.S. single-gang backbox (horizontally-mounted)
- Standard 2 in x 4 in x 3 in (50 mm x 96 mm x 65 mm) U.S. single-gang backbox (horizontally-mounted)
- Square UK backbox
- Round EU backbox
Specifications & Documents
General Specifications
Keypad Type
Wired use Cat5e minimum cable
System Compatibility
Athena
Button Configuration & Count
5 in (127 mm) diagonal capacitive touch display
Connectivity
Connection Type
Each touchscreen needs to have a home run Ethernet connection back to a PoE switch.
QS Link Wire Specifications
Communicates with the system through the system Ethernet link to the wired Athena Edge processor.

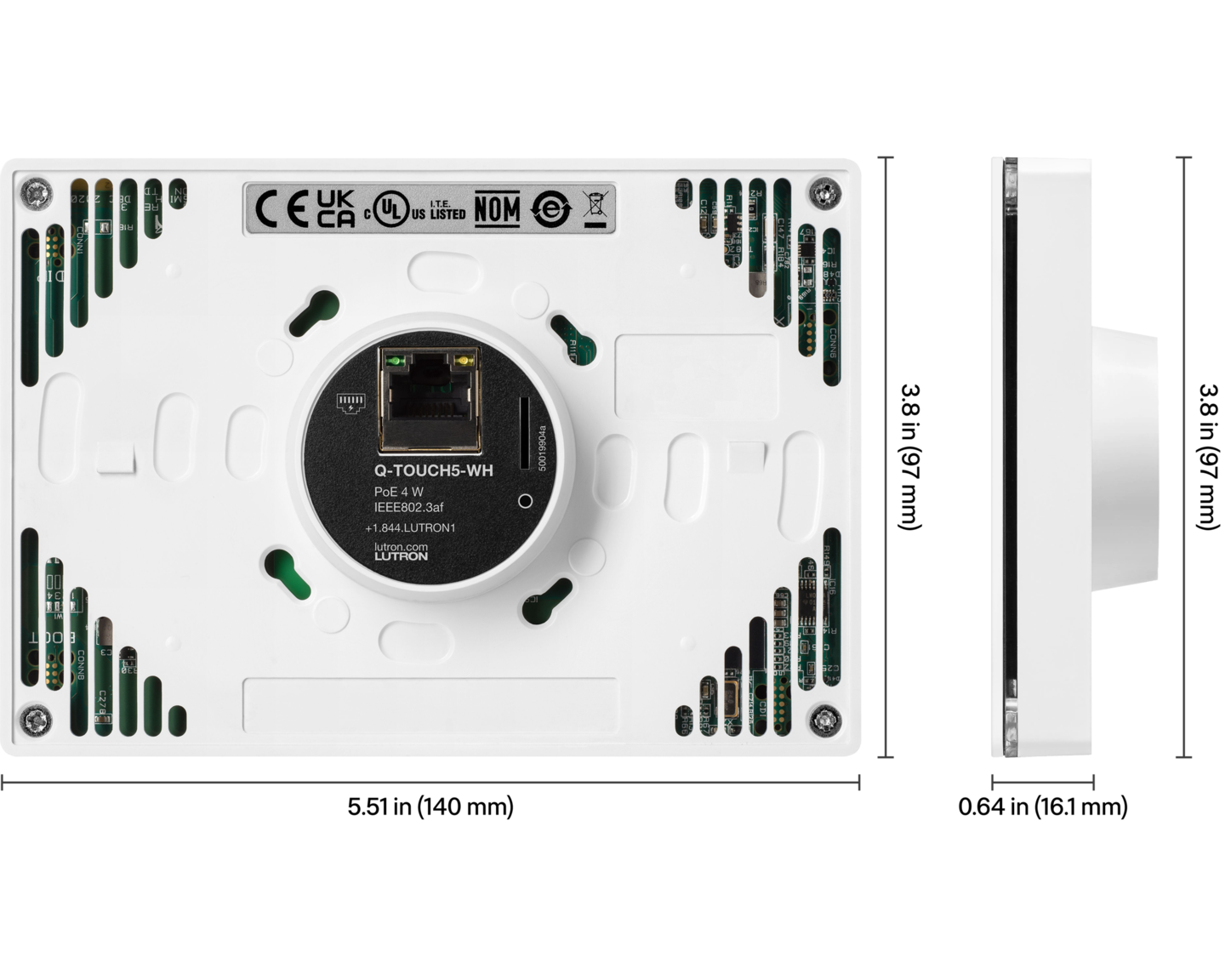

Dimensions Specifications
H × W × D
H 3.82 in W 5.51 in x D 0.64 in
Wallbox Type
3-4 in backbox
Certifications Specifications
Environmental Rating
Indoor use only; cULus listed
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
8 years against defects in materials/workmanship
