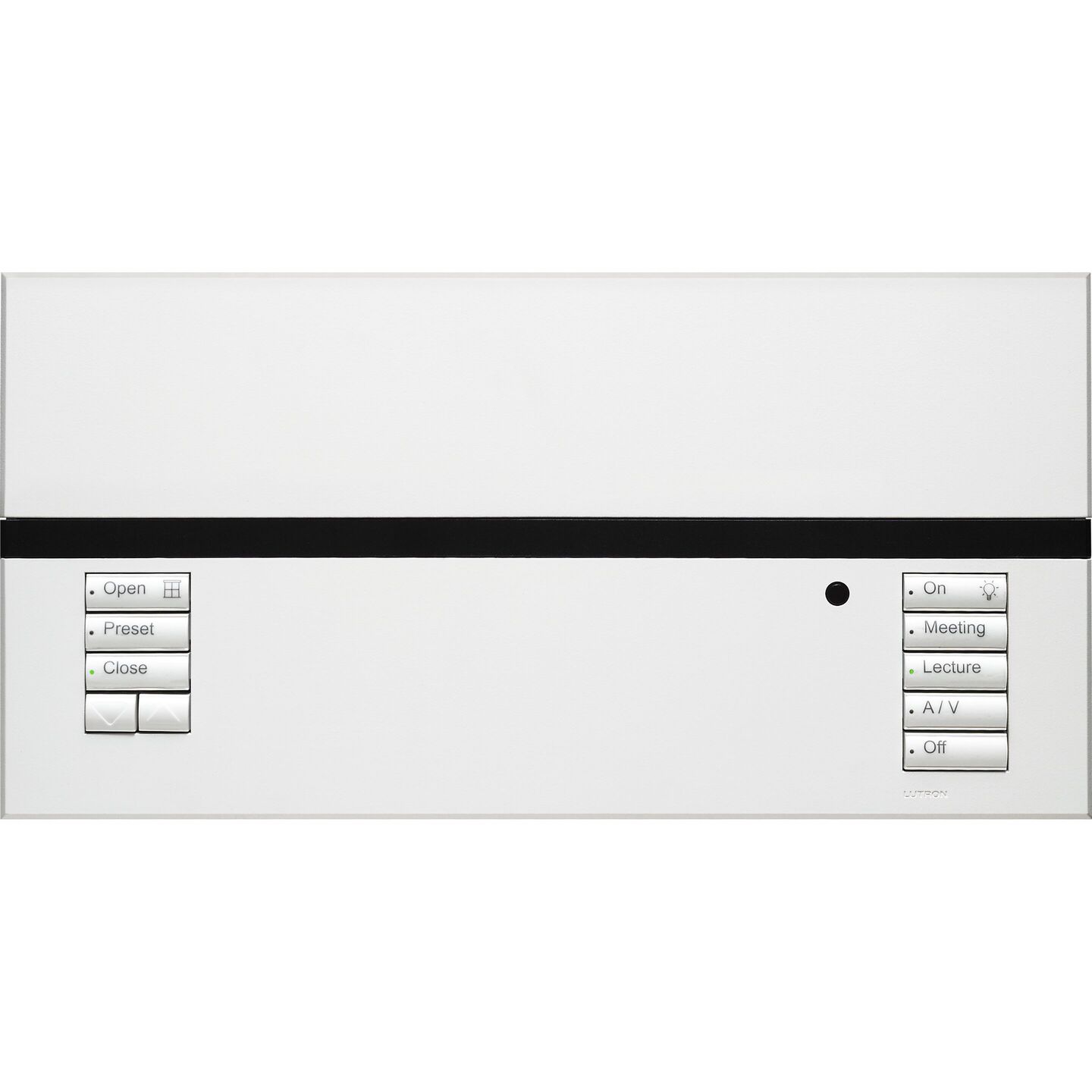

GRAFIK Eye QS Wireless
Multi-zone control unit with OLED display featuring 16 lighting zones, integrated shade control, and Clear Connect wireless communication.
Configure
Product Details
Overview
Delivering comprehensive multi-zone control through an intuitive interface, GrafikEye QS manages complex lighting and shade configurations from a single elegant control point. The control unit orchestrates up to 16 independent lighting zones and 3 shade zones, making it ideal for conference rooms, restaurants, home theaters, and classrooms requiring flexible scene control. The integrated OLED screen displays real-time zone levels as percentages, tracks energy savings, and provides zone labeling for easy identification—all viewable from any angle with automatic idle shutoff after 30 seconds to preserve display life. Four backlit scene buttons provide instant access to preferred settings, with 16 total scenes available through simple button programming directly on the unit. Additional features include built-in astronomic timeclock for automated scheduling and occupancy sensor input with 24V power supply. Engineered to work seamlessly with HomeWorks and Athena systems, GrafikEye QS integrates lights, shades, sensors, and wallstations without additional interfaces.
- Available in architectural matte, architectural metal, satin color, and anodized aluminum finishes to complement any interior
- Controls up to 16 lighting zones and 3 shade zones directly, supporting multiple light source types through integrated control or power modules
- Large rounded buttons with upward-angled engraving and backlighting ensure easy location and operation in low-light conditions

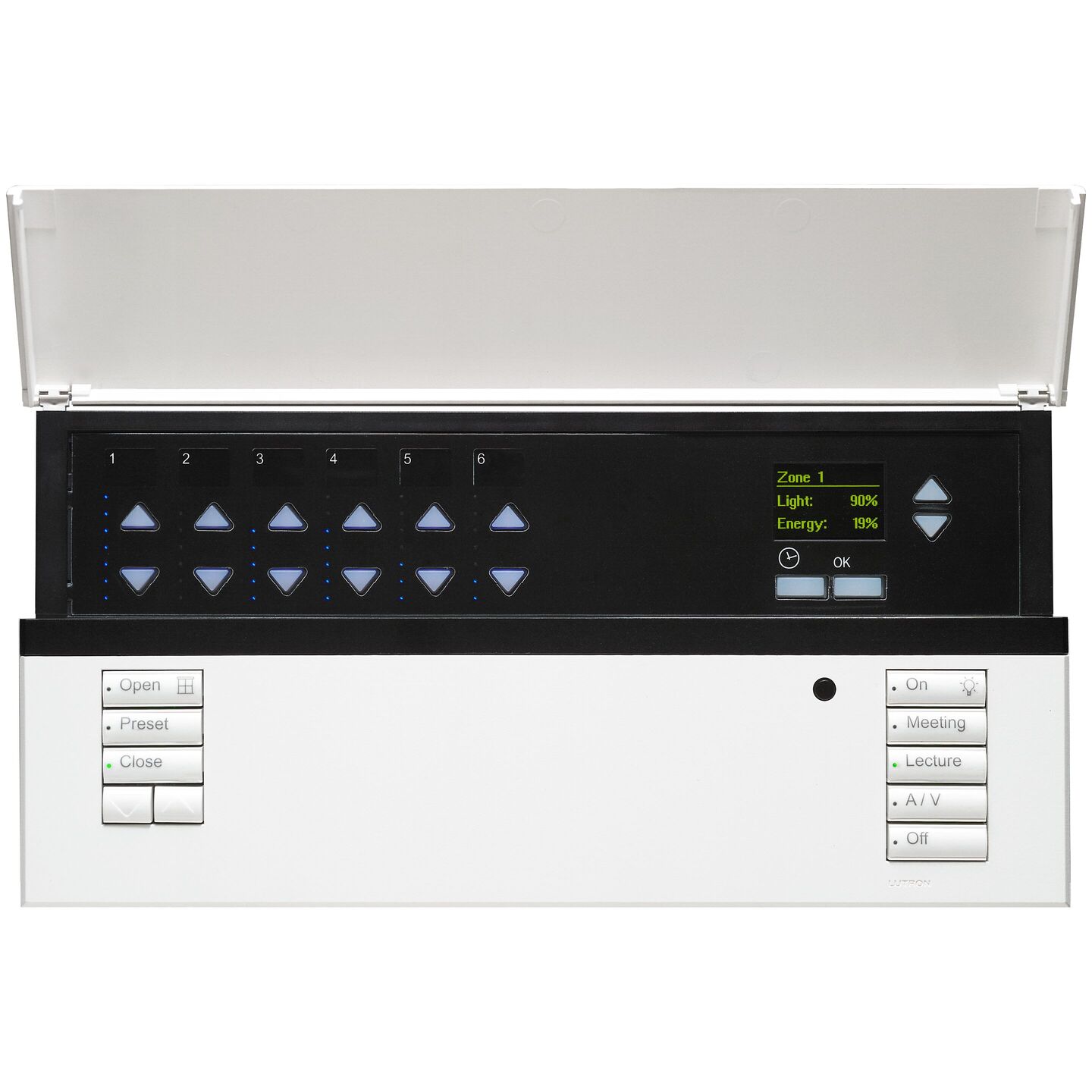

- Wide-angle OLED display shows zone percentages, energy savings data, zone labels, and programming status with lockout option to prevent changes
- Field-configurable with standard category engravings for common applications or custom text to match specific project requirements
- Wireless Clear Connect communication enables seamless integration with HomeWorks and Athena systems including wallstations and sensors
Optional custom text or icons
HomeWorks
Athena
- Control up to 6 zones
- Installs in a standard 4-gang U.S. wallbox, 3` in (89 mm) deep is strongly recommended.
- Always allow at least 4` in (114 mm) clearance above and below the control unit to provide adequate space for cooling.
- Wallplate snaps on with no visible means of attachment.
Specifications & Documents
General Specifications
Keypad Type
Wireless RF communication
System Compatibility
HomeWorks
Athena
Button Configuration & Count
Control up to 6 zones
Engraving Options
Optional General or Non Standard engraving
Connectivity
Connection Type
HomeWorks supports selection of wired or RF communications. A GRAFIK Eye QS main unit that communicates back to a HomeWorks processor through the RF link should not have any QS wired link connections.
QS Link Wire Specifications
Each line voltage terminal can accept one 12 AWG (4.0 mm2 ) wire.
RF Frequency & Range
Each line voltage terminal can accept one 12 AWG (4.0 mm2 ) wire.
Dimensions Specifications
H × W × D
H 4.69 in x W 9.38 in x D 2.38 in
Wallbox Type
3 in backbox is strongly recommended
Electrical Specifications
Operating Voltage
120 V~ 50/60 Hz
Certifications Specifications
Environmental Rating
Indoor use only; cULus listed
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
8 years against defects in materials/workmanship
