Hospitality Pico Corridor Low Voltage Wired
Purpose-built corridor interface for myRoom XC systems, featuring doorbell functionality plus make-up-room and do-not-disturb status indicators.
Configure
Product Details
Overview

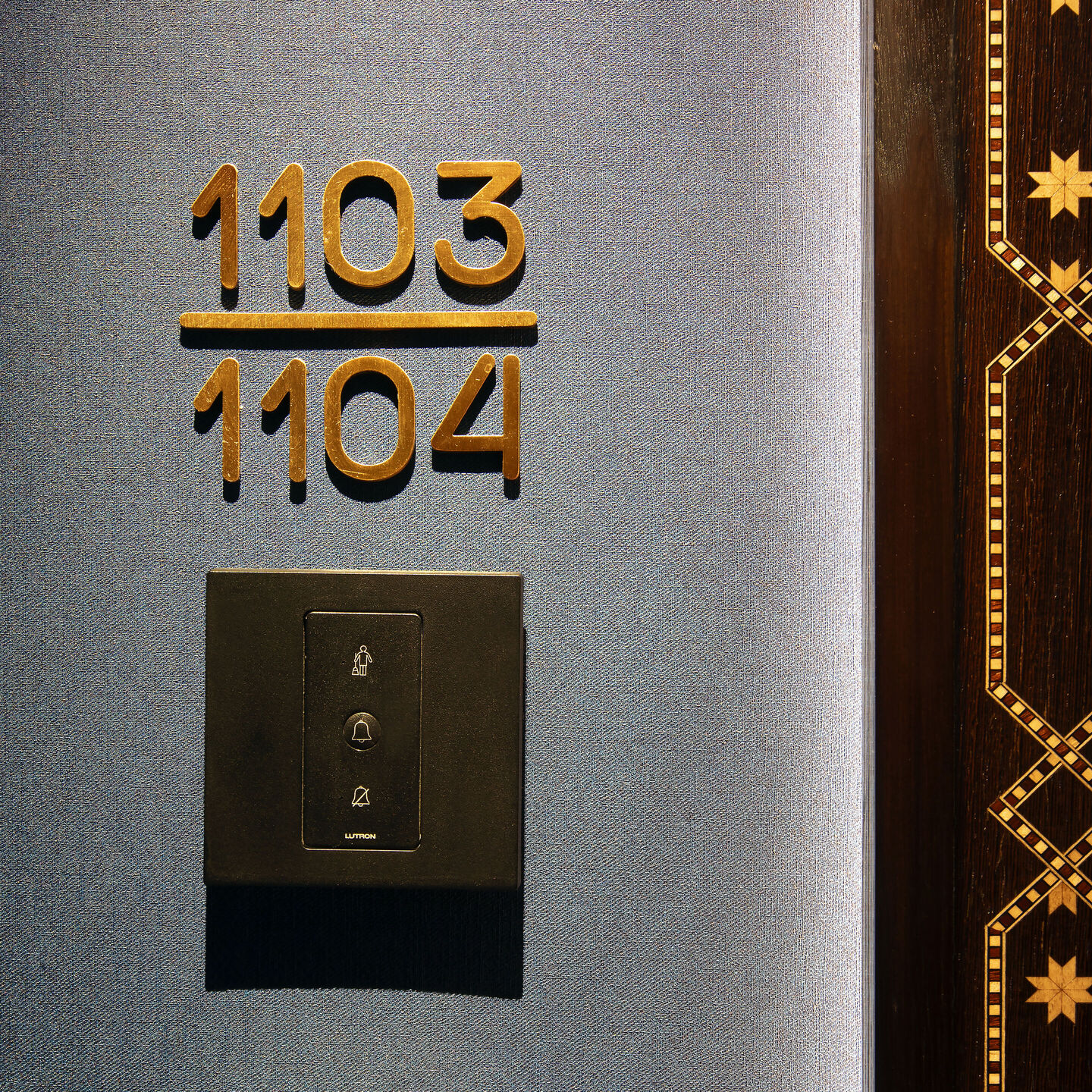

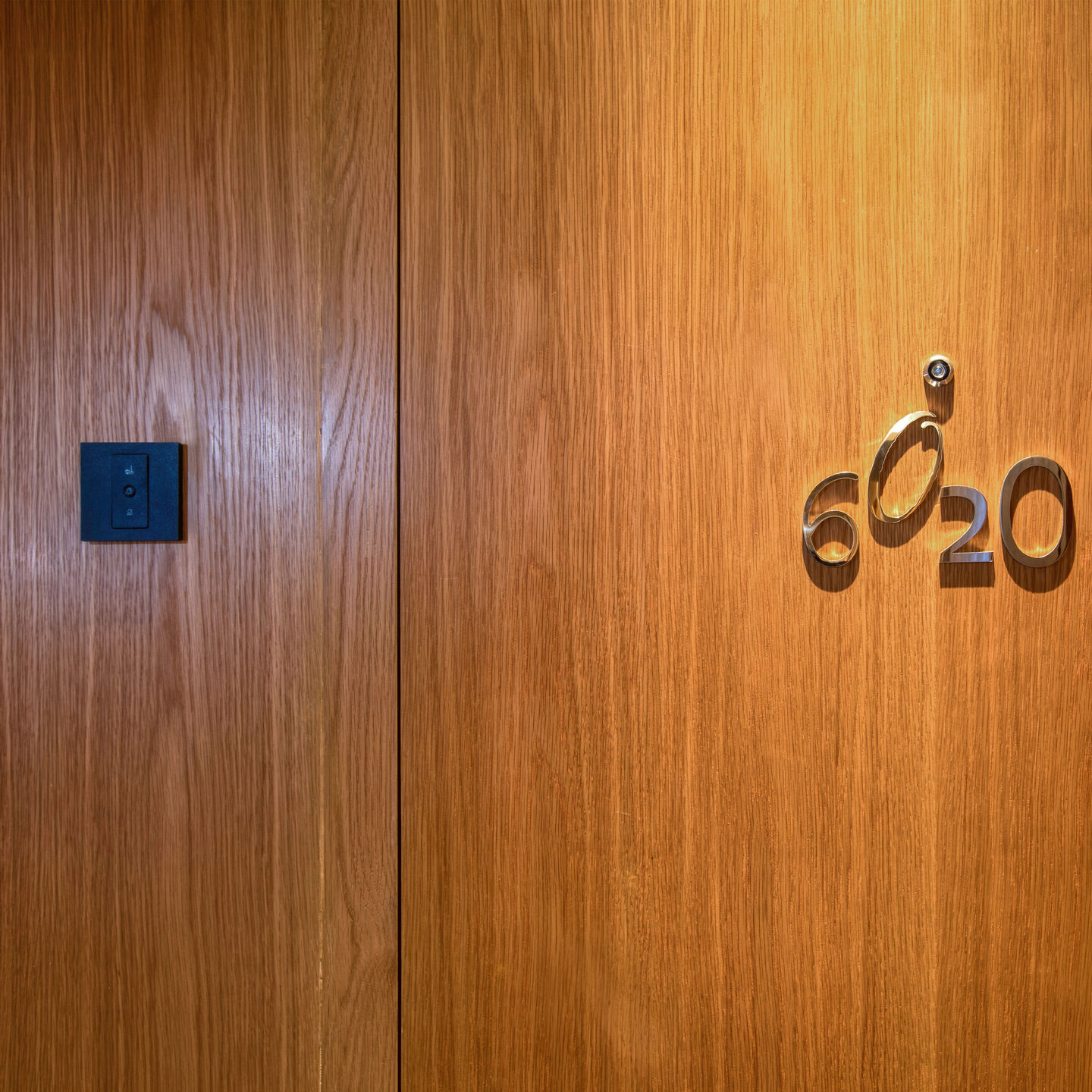

Purpose-built for hotel corridor applications, this specialized Pico control provides essential doorbell and status indication functionality for myRoom XC systems. The control combines doorbell actuation with visual status displays, showing make-up-room requests in green and do-not-disturb preferences in red for immediate staff awareness. Low-voltage QS wiring ensures safe, reliable operation throughout the property lifecycle, while the tamper-resistant wallplate snaps on without visible fasteners to maintain clean corridor aesthetics. Fixed-function engravings with universally recognized icons eliminate confusion across language barriers, ensuring clear operation for both guests and staff. Directly integrated with myRoom XC infrastructure, this corridor control enables staff to view guest service status at the door.

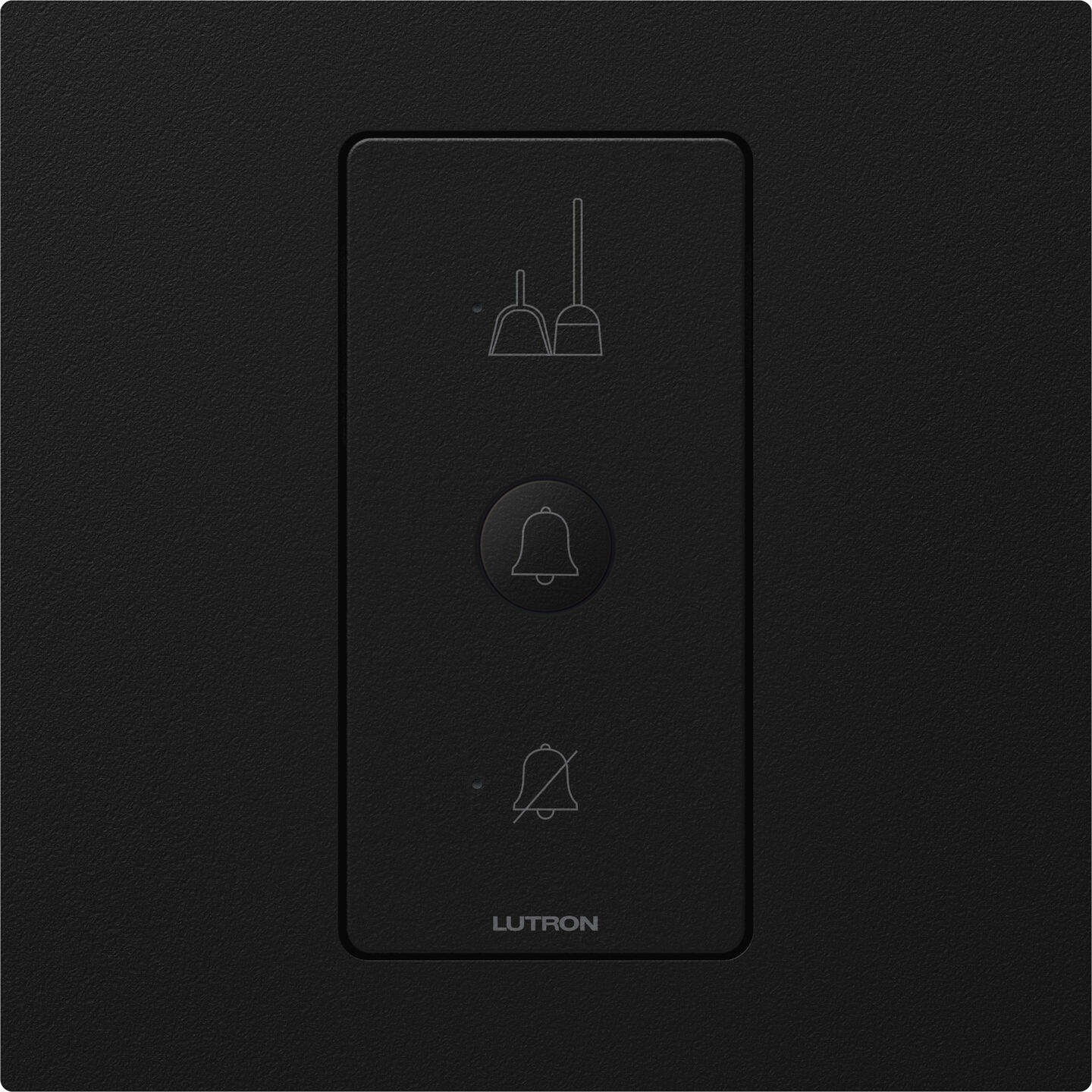

- Durable precision-molded polymer construction available in satin Matte Arctic White and Matte Black finishes to coordinate with hotel corridor aesthetics
- Doorbell button actuates in-room notification through myRoom XC system with LED feedback at the door for clear guest communication
- Large rectangular buttons provide confident tactile feedback with comfortable spacing for intuitive operation by guests and staff
- Dedicated status LEDs clearly indicate make-up-room requests (green) and do-not-disturb preferences (red) for efficient housekeeping operations
- Fixed-function engravings with universally recognized icons ensure clear operation for guests and staff across language barriers
- Direct integration with myRoom XC systems through QS low-voltage wiring provides reliable communication for property management
Optional custom text or icons
myRoom XC
- 3 LED Buttons
- Wallplate kit sold separately; kit includes wallplate and wallplate adapter
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
myRoom XC
Button Configuration & Count
3 LED Buttons;
Engraving Options
Standard Engravings
Connectivity
Connection Type
Wired
RF Frequency & Range
The Pico Corridor Control connects to a Lutron myRoom Guestroom Control Unit (GCU-HOSP) via SELV/PELV/NECR Class 2 wiring
Dimensions Specifications
H × W × D
H 3.5 in x W 3.5
Electrical Specifications
Operating Voltage
Two 1,0 mm2 (18 AWG) conductors or one 4,0 mm2 (12 AWG) conductor for common (terminal 1) and V+ (terminal 2)
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
0 °C to 40 °C (32 °F to 104 °F)
Warranty
8 years against defects in materials/workmanship
