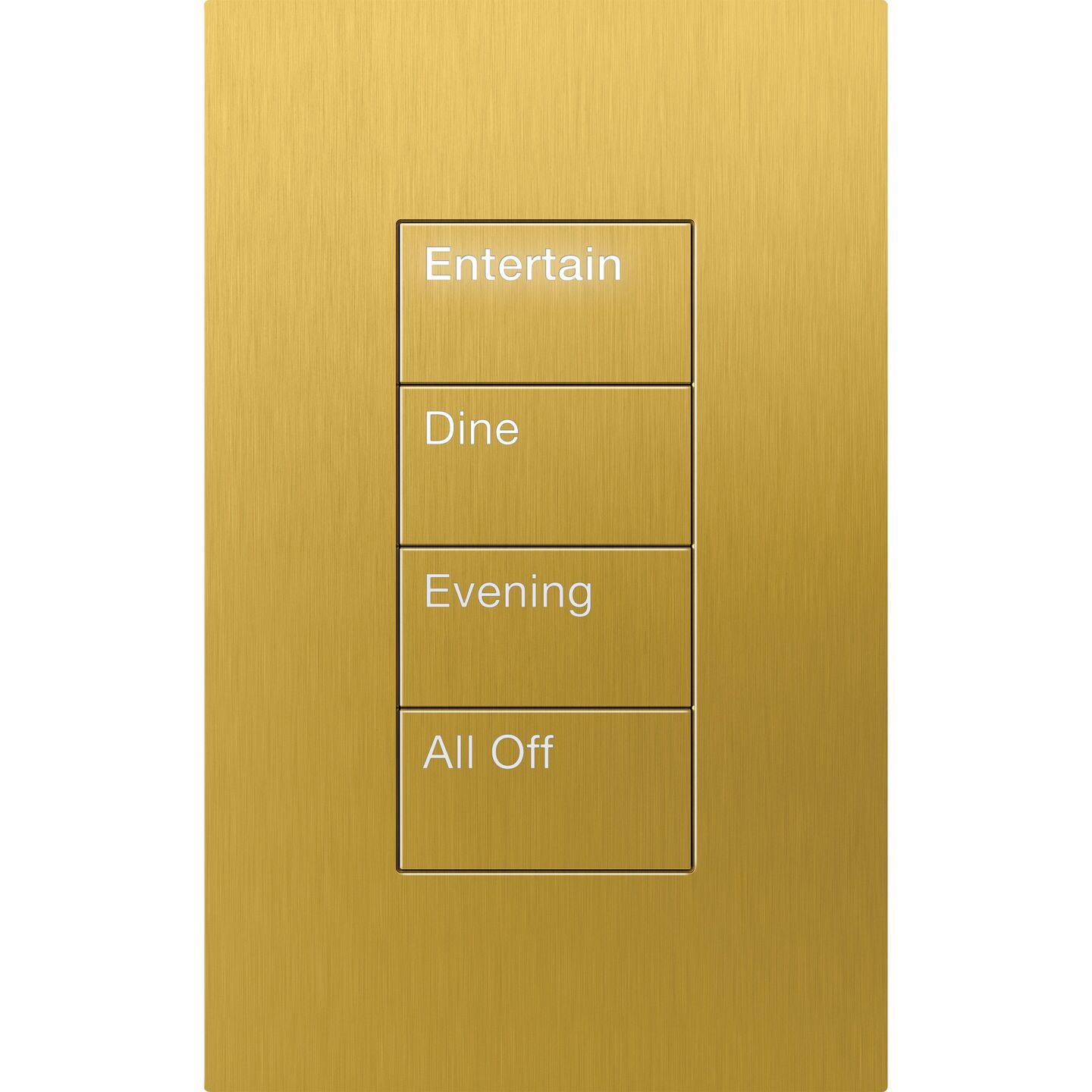

HomeWorks Palladiom Rectangle Keypad
Sleek, refined keypad with matching button and faceplate finishes, featuring flush design and dynamic backlight management.
Configure
Product Details
Overview
Expressing rational luxury through clean, precision-crafted lines, Palladiom keypads redefine modern architectural control. The revolutionary flush design creates a perfectly uniplanar surface where buttons and faceplate meet seamlessly, both crafted from matching materials and finishes for complete aesthetic unity. The keypad's refined and deliberate projection from the wall enables Dynamic Backlight Management to continuously monitor ambient conditions and adjust the brightness of backlit engravings for optimal readability throughout the day. Available in select architectural metals, glass, and refined polymers, keypads can be configured in 2-button, 3-button, 3-button with raise/lower, or 4-button layouts for comprehensive control of lights, shades, and other connected devices. The large, flush buttons deliver subtle tactile feedback with each press, confirming operation without disrupting the clean aesthetic. Engineered from the start to work with Lutron's advanced HomeWorks system, Palladiom brings modern elegance and uncompromising functionality to contemporary living spaces.
- Flush uniplanar design with matching button and faceplate materials creates seamless architectural integration
- Available in 2-button, 3-button, 3-button with raise/lower, or 4-button configurations for comprehensive scene control
- Large flush buttons with precision-engineered gaps deliver confident tactile feedback through subtle clicks
- Dynamic Backlight Management automatically adjusts backlit engraving brightness to ambient lighting conditions
- Laser-etched custom text and icon engravings provide permanent personalized identification
- Low-voltage QS wiring enables native HomeWorks integration with reliable multi-room control
Optional custom text or icons
HomeWorks
- Up to 4-gang of up to 4 buttons in each gang
- Typical U.S. style wallbox dimensions: 3.7 in (95 mm) H × 1.8 in (46 mm) W × 2.8 in (70 mm) D
- Typical Square style wallbox dimensions: 75 mm H × 75 mm W × ≥25 mm D
- Typical Round style wallbox dimensions: 68 mm × ≥25 mm D
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
HomeWorks
Colors and Finishes
8 Architectural Metal Finishes
9 Architectural Matte Finishes
2 Signature Metal Finishes
Button Configuration & Count
Up to 4 buttons with optional raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Status of active button press or scene is indicated through intensity of backlighting
Connectivity
Connection Type
low voltage wire
QS Link Wire Specifications
Each terminal accepts up to two 18 AWG (1.0 mm2) wires.
RF Frequency & Range
Each terminal accepts up to two 18 AWG (1.0 mm2) wires.
Dimensions Specifications
H × W × D
H 4.7 in x W 3 in x D .8 in
Wallbox Type
2.8 in recommended
Electrical Specifications
Operating Voltage
24–36 V- 30 mA
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
