myRoom XC Palladiom Square Keypad
Sleek, refined keypad with matching button and faceplate finishes, featuring flush design for premium hospitality spaces.
Configure
Product Details
Overview
Designed for discerning hospitality environments, Palladiom keypads deliver rational luxury through clean, precision-crafted lines. The distinctive flush design creates a perfectly smooth surface where buttons and faceplate unite seamlessly with matching materials and finishes for uncompromised aesthetic consistency. The keypad's refined and deliberate projection from the wall enables Dynamic Backlight Management to continuously monitor room lighting and adjust the brightness of backlit engravings, ensuring effortless guest operation from bright afternoons to darkened evenings. Available in select architectural metals, glass, and refined polymers, keypads offer 2-button, 3-button, 3-button with raise/lower, or 4-button configurations that simplify room control to essential scenes. The large, flush buttons provide reassuring tactile feedback through subtle clicks, confirming selections without disrupting the refined atmosphere. Engineered from the start to work with Lutron's advanced myRoom XC system, Palladiom delivers architectural presence and intuitive functionality to premium properties worldwide
- Flush uniplanar construction with matching button and faceplate materials ensures consistent luxury aesthetic
- Available in 2-button, 3-button, 3-button with raise/lower, or 4-button configurations for intuitive guest control
- Large flush buttons with minimal gaps provide confident operation through subtle tactile response
- Dynamic Backlight Management adjusts backlit engravings to ensure readability in varying room conditions
- Custom laser-etched text and icon engravings support international guest requirements
- Low-voltage QS wiring delivers reliable myRoom XC integration for sophisticated hospitality management
Optional custom text or icons
myRoom XC
- Up to 4-columns of up to 4 buttons in each column
- Typical U.S. style wallbox dimensions: 3.7 in (95 mm) H × 1.8 in (46 mm) W × 2.8 in (70 mm) D
- Typical Square style wallbox dimensions: 75 mm H × 75 mm W × ≥25 mm D
- Typical Round style wallbox dimensions: 68 mm × ≥25 mm D
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
myRoom XC

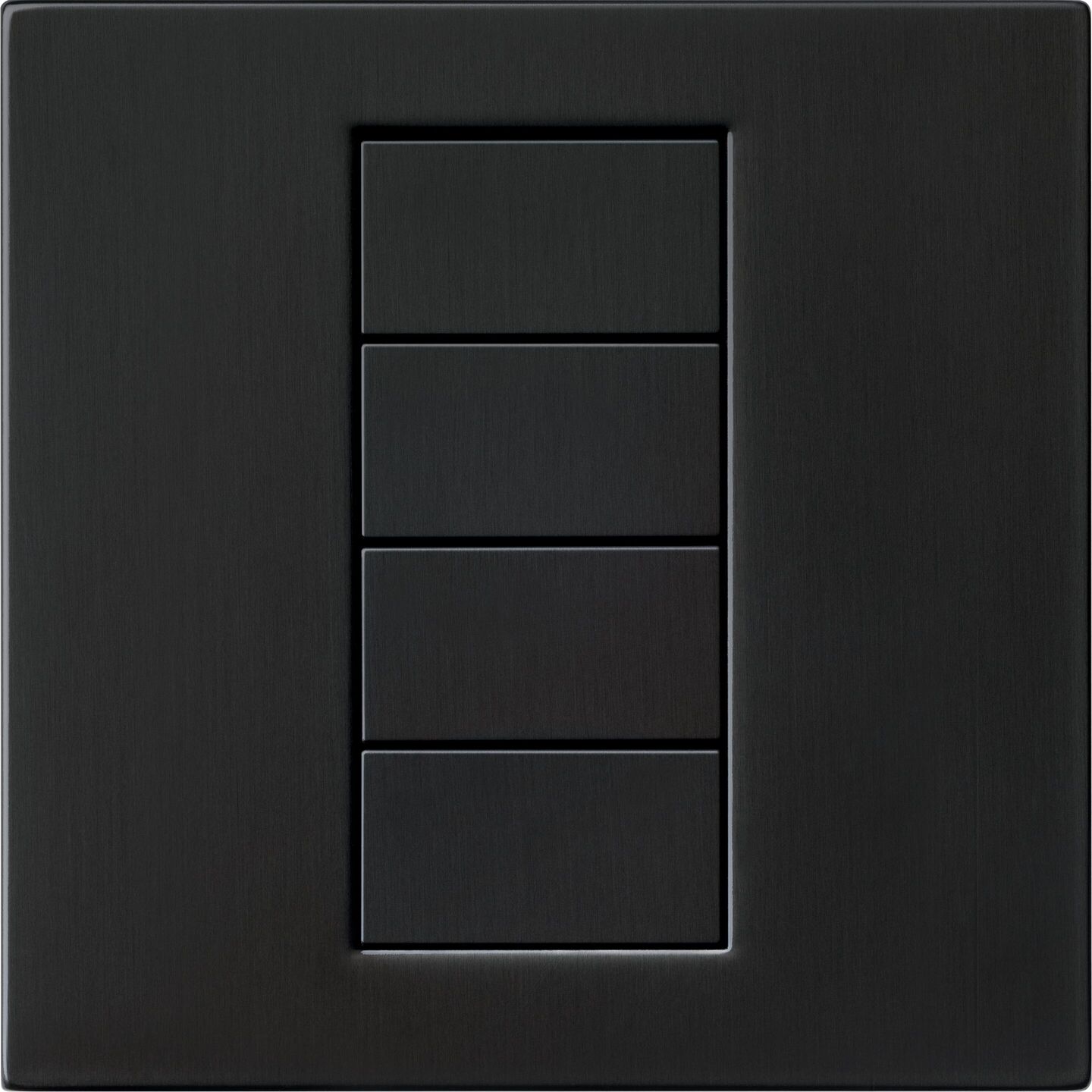

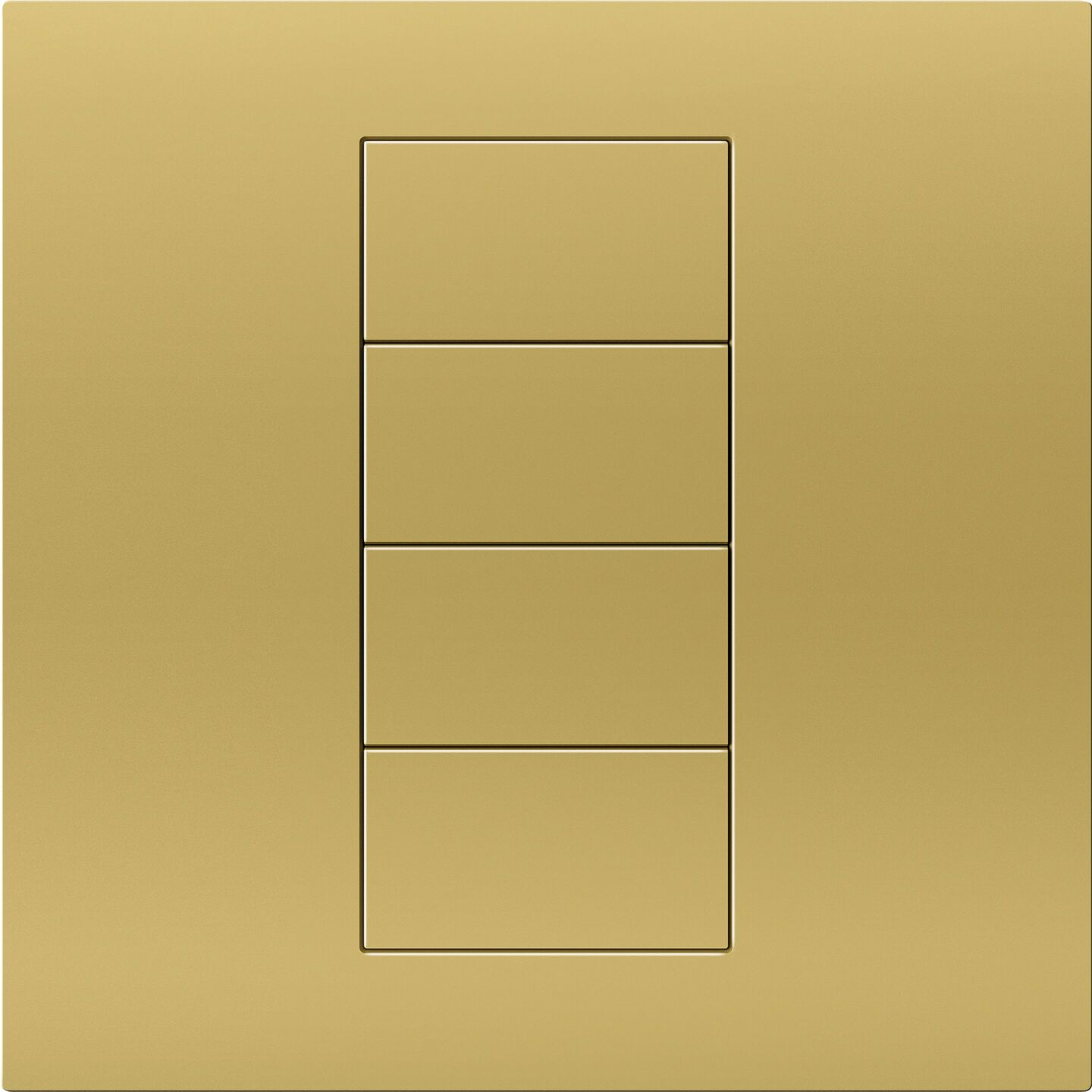

Colors and Finishes
8 Architectural Metal Finishes
9 Architectural Matte Finishes
2 Signature Metal Finishes
Button Configuration & Count
Up to 4 buttons with optional raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Status of active button press or scene is indicated through intensity of backlighting
Connectivity
Connection Type
low voltage wire
QS Link Wire Specifications
Each terminal accepts up to two 18 AWG (1.0 mm2) wires.
Dimensions Specifications
H × W × D
H 3.8 in x W 3.8 in x D .8 in
Wallbox Type
2.8 in recommended
Electrical Specifications
Operating Voltage
24–36 V- 30 mA
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
8 years against defects in materials/workmanship
