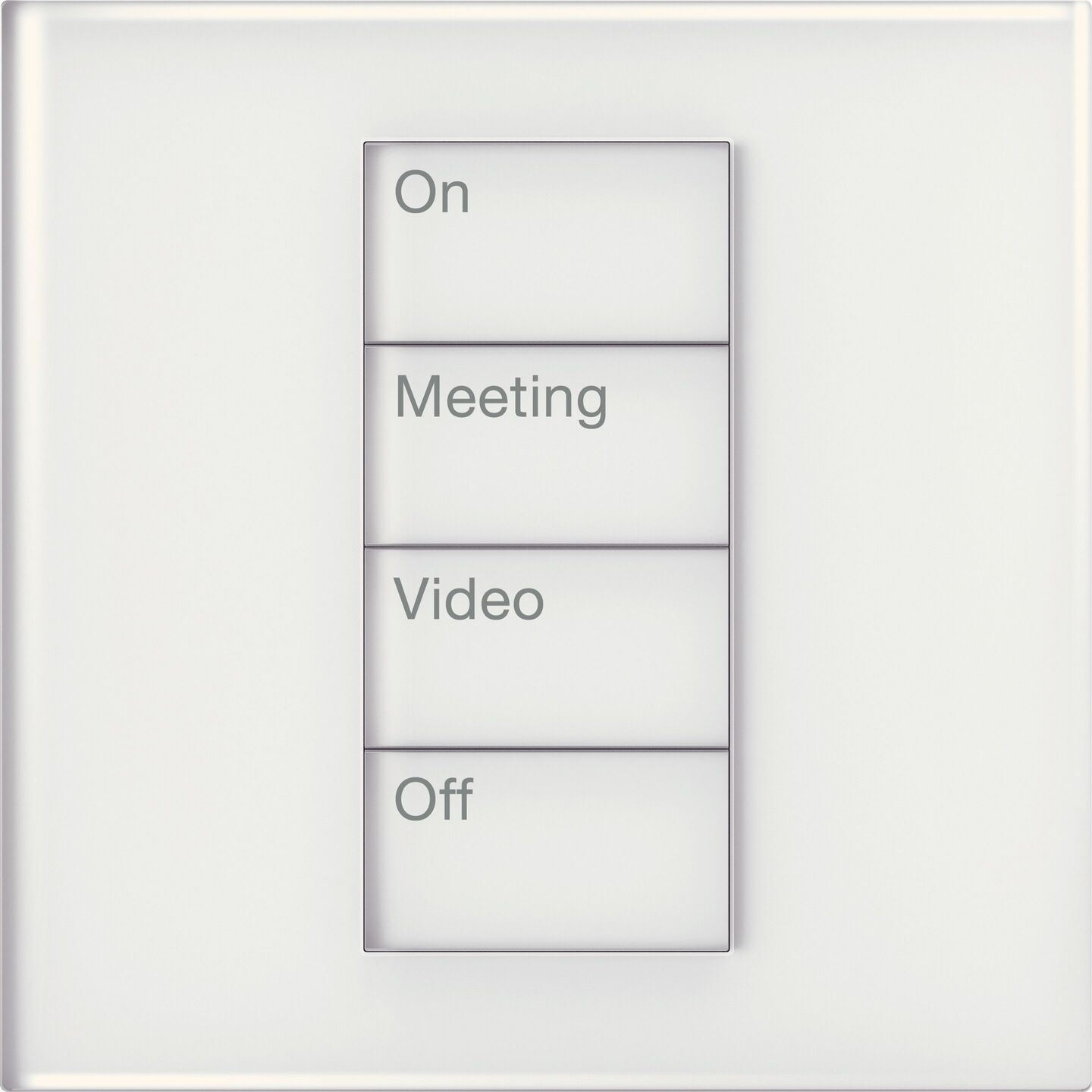

Athena Palladiom Square Keypad
Sleek, refined keypad with matching button and faceplate finishes, featuring flush design for contemporary workspaces.
Configure
Product Details
Overview
Designed for discerning professional and commercial environments, Palladiom keypads deliver rational luxury through clean, precision-crafted lines. The innovative flush construction creates a perfectly planar surface where buttons and faceplate merge seamlessly with matching materials for complete design integrity. The keypad's refined and deliberate projection from the wall surface enables Dynamic Backlight Management to continuously adapt the brightness of backlit engravings to changing ambient conditions, maintaining optimal visibility from morning meetings through evening events. Available in architectural metals, glass, and refined polymers, keypads offer 2-button, 3-button, 3-button with raise/lower, or 4-button configurations for control of lighting, shades, and connected systems. The large, flush buttons confirm every interaction with subtle tactile clicks, providing professional feedback within the refined aesthetic. Engineered from the start to work with Lutron's advanced Athena system, Palladiom provides modern architectural refinement and reliable performance for contemporary professional spaces.
- Flush uniplanar design with matching button and faceplate materials creates cohesive aesthetic for modern offices
- Available in 2-button, 3-button, 3-button with raise/lower, or 4-button configurations for flexible commercial control
- Large flush buttons with precision gaps deliver professional tactile feedback
- Dynamic Backlight Management optimizes backlit engraving visibility in changing workspace conditions
- Laser-etched custom text and icon engravings provide permanent personalized identification
Optional custom text or icons
Athena
- Up to 4-columns of up to 4 buttons in each column
- Typical U.S. style wallbox dimensions: 3.7 in (95 mm) H × 1.8 in (46 mm) W × 2.8 in (70 mm) D
- Typical Square style wallbox dimensions: 75 mm H × 75 mm W × ≥25 mm D
- Typical Round style wallbox dimensions: 68 mm × ≥25 mm D
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Athena
Colors and Finishes
8 Architectural Metal Finishes
9 Architectural Matte Finishes
2 Signature Metal Finishes
Button Configuration & Count
Up to 4 buttons with optional raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Status of active button press or scene is indicated through intensity of backlighting
Connectivity
Connection Type
low voltage wire
QS Link Wire Specifications
Each terminal accepts up to two 18 AWG (1.0 mm2) wires.
RF Frequency & Range
Each terminal accepts up to two 18 AWG (1.0 mm2) wires.
Dimensions Specifications
H × W × D
H 4.7 in x W 3 in x D .8 in
Wallbox Type
2.8 in recommended
Electrical Specifications
Operating Voltage
24–36 V- 30 mA
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
