Pico 4 Button Wire-Free Battery Powered Remote
The essential Lutron control system multi-tool in a 4-button wireless configuration for dedicated scene control, featuring multiple mounting options and 10-year battery life.
Configure
Product Details
Overview
The ultimate expression of Lutron versatility, this 4-button Pico remote delivers wire-free preset control for lights, shades, and drapes with complete placement flexibility. From bedside tables to garage walls to outdoor patios, Pico remotes adapt to any location with versatile mounting accessories that enable handheld, wall-mounted, or portable control wherever needed. Installation without cutting walls or running wires means Pico 4-button remotes can be placed anywhere and relocated anytime, with third-party verified 10-year battery life that delivers maintenance-free operation. Four dedicated buttons provide instant access to preset scenes, multi-zone, or raise/lower control, complementing any interior through multiple gloss and satin finish options, while Clear Connect RF wireless technology maintains reliable communication. Compatible with Caséta, RadioRA 3, HomeWorks, Athena, Vive, and myRoom XC systems, Pico represents the pinnacle of flexible control design.
- Precision-molded polymer construction available in White, Ivory, Light Almond, Black, and Biscuit satin finishes to complement any interior design aesthetic
- Four-button configuration enables scene, raise/lower, or zone control for lights, shades, and drapes.
- Large rectangular buttons provide confident tactile feedback with generous touch targets and comfortable spacing for intuitive multi-scene operation
- Integrated LED provides visual confirmation of button presses and indicates battery function for system reliability
- Select from pre-configured scene engravings or specify custom text and icons for personalized labeling of each button's function or controlled zone
- Clear Connect Type A wireless technology delivers reliable communication within 30 ft through walls and 60 ft line-of-sight with all modern Lutron control systems
Optional custom text or icons
Athena
HomeWorks
RadioRA3
Caseta
Vive
- 4 Buttons

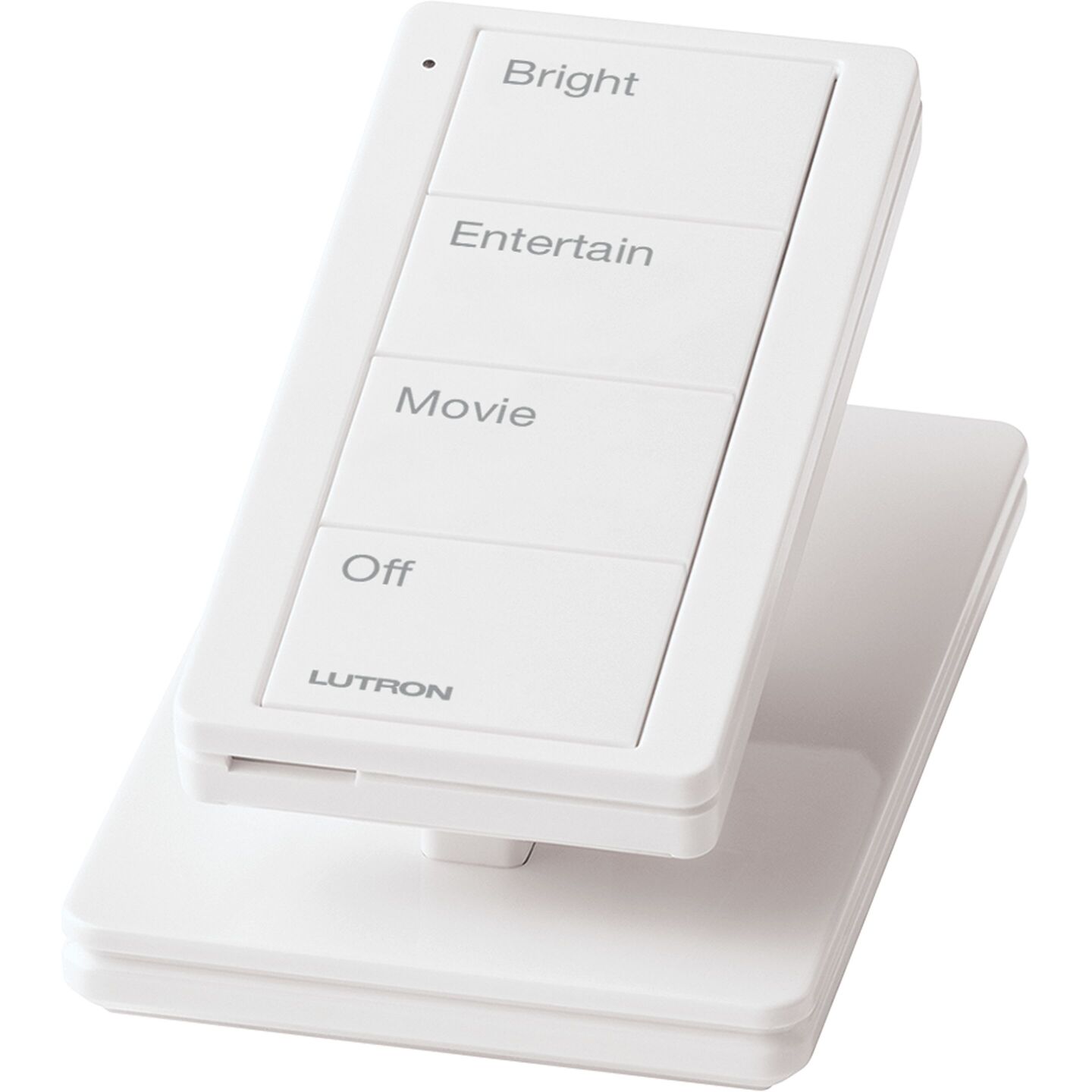

- Handheld remote
- All RF devices should be mounted on nonmetallic surfaces to ensure proper performance.
- If you wish to mount your Pico wireless control to a metallic surface, the PICO-MOUNT-1-XX-CPN6774 will be required in order to maintain proper RF performance. For availability, please contact your local Lutron sales office.
Specifications & Documents
General Specifications
Keypad Type
Wireless
System Compatibility
Athena
HomeWorks
RadioRA3
Caseta
Vive
Button Configuration & Count
2 or 3 button configurations with raise lower
Engraving Options
Optional custom engravings
Connectivity
Connection Type
RF Communication
RF Frequency & Range
Communicates using Radio Frequency (RF) at 431 MHz to 437 MHz
Dimensions Specifications
H × W × D
H 2.6 in x W 1.3 in x D .33 in
Wallbox Depth Required
N/A
Electrical Specifications
Operating Voltage
Operating Voltage 3 V
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 ˚F to 140 ˚F (0 ˚C to 60 ˚C)
Warranty
8 years against defects in materials/workmanship
