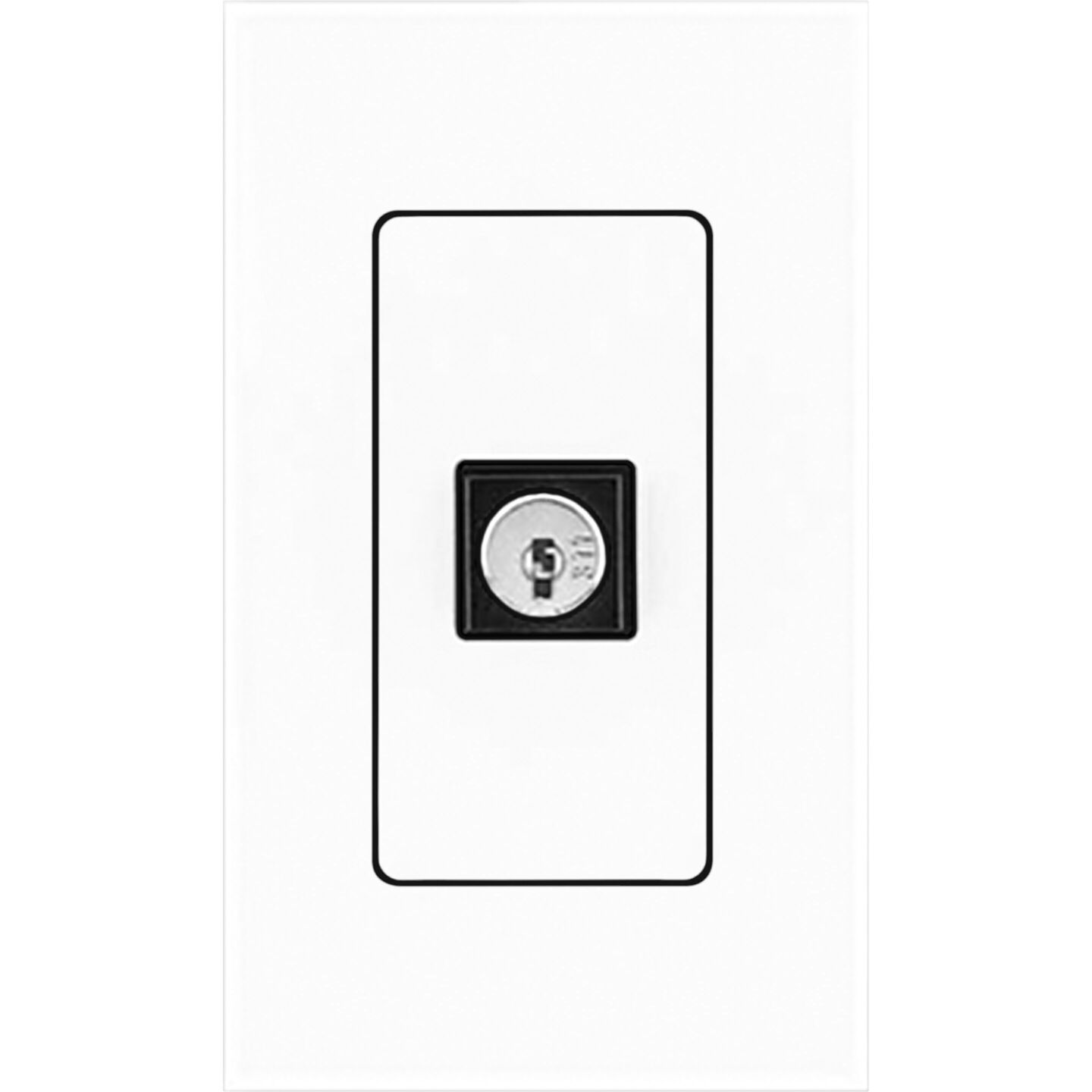

QS Keyswitch
Key-operated control interface providing secure access to lighting, shade, and system functions.
Configure
Product Details
Overview
Delivering secure, administrator-only control for commercial lighting systems, the QS Keyswitch restricts access to critical functions in public spaces, educational facilities, and high-traffic environments. The key-operated interface prevents unauthorized adjustments in locations like school gymnasiums, hotel lobbies, and retail spaces where lighting control must remain under staff management. By inserting and turning the key left or right, authorized personnel can recall preset scenes, enable or disable timeclocks and sensors, initiate afterhours mode, or activate emergency lighting sequences. The versatile programming accommodates various operational needs, from simple scene selection and zone control to advanced functions like sequencing multiple scenes or managing integrated shade systems. Available in both non-insert and insert styles, the QS Keyswitch can be installed as a standalone control or ganged with other devices using standard decorator faceplates. Engineered to integrate seamlessly with most Lutron QS systems, the QS Keyswitch provides essential security for commercial installations where uncontrolled access could disrupt operations or compromise safety.
- Eight color options including white, beige, ivory, gray, brown, black, almond, and light almond match any commercial interior
- Choose non-insert style for dedicated installation or insert style for integration with standard decorator multigang configurations
- Dual-direction key operation provides two programmable functions per unit, maximizing control flexibility in minimal wall space
- Comprehensive function set includes scene recall, zone control, shade operation, sensor override, and system mode management
- Tamper-resistant construction ideal for schools, public buildings, and commercial spaces requiring restricted access
- QS communication enables integration with timeclocks, occupancy sensors, daylight sensors, and panic mode systems
Optional custom text or icons
Athena
Vive
- Available in insert or non-insert style
- Faceplate snaps on with no visible means of attachment
- Insert version can be ganged with other controls using any standard decorator multigang faceplate.
- For non-insert version ganging, contact Lutron for custom faceplate options.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Athena
Vive
Button Configuration & Count
Different key settings: 2-3 position. Key removable from center position only or anywhere - options.
Engraving Options
Optional custom engravings
Connectivity
Connection Type
QS Wire
QS Link Wire Specifications
12 AWG to 22 AWG wire (0.5 mm2 to 4.0 mm2 ) Each accepts up to two 18 AWG (1.0 mm2 ) typic
RF Frequency & Range
12 AWG to 22 AWG wire (0.5 mm2 to 4.0 mm2 ) Each accepts up to two 18 AWG (1.0 mm2 ) typic
Dimensions Specifications
H × W × D
H 4.6 in x W 2.7 x D 2.4
Wallbox Type
Standard wallbox
Electrical Specifications
Operating Voltage
Operating voltage: 24–36 V 30 mA
Certifications Specifications
Environmental Rating
Indoor use only; cULus listed
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
8 years against defects in materials/workmanship
