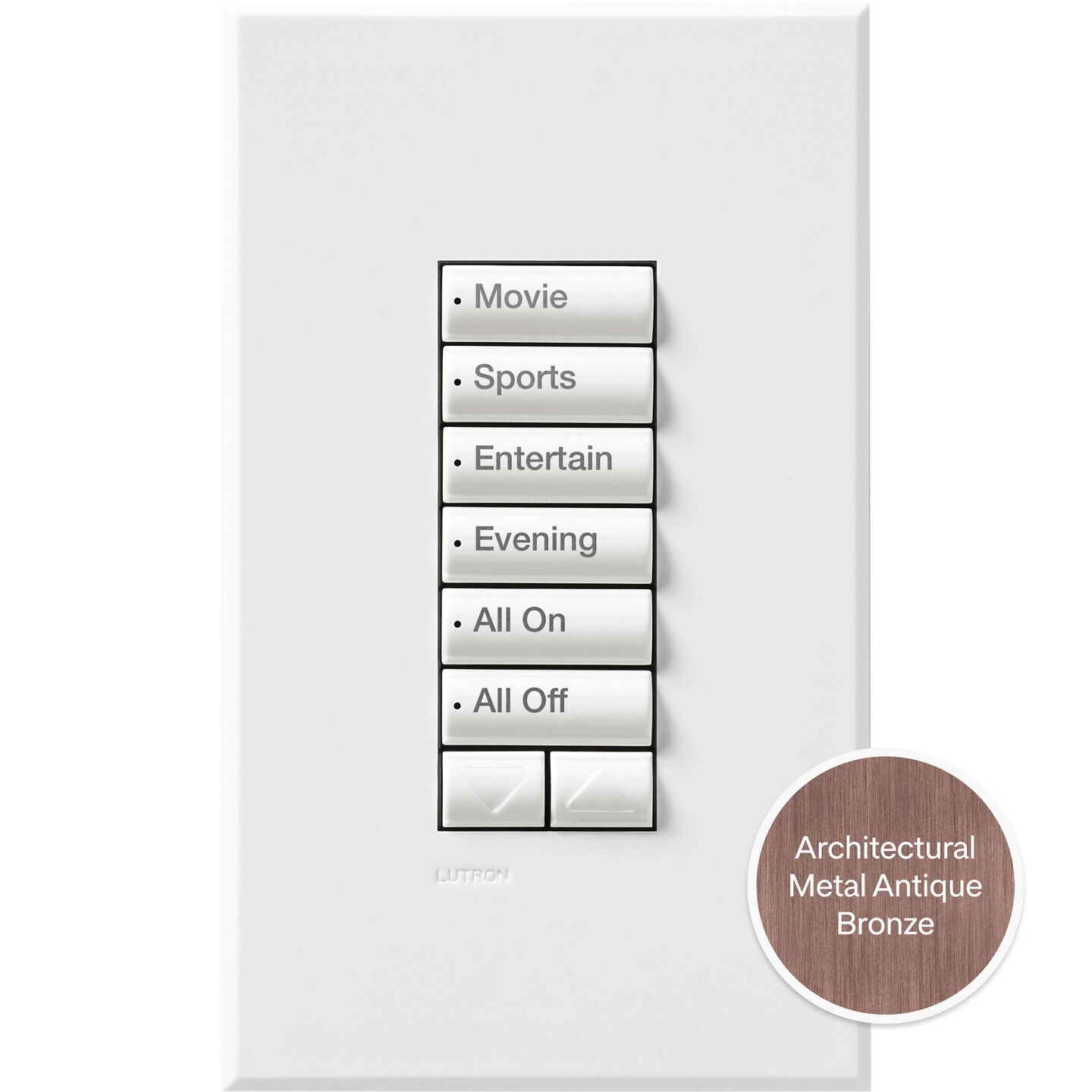

HomeWorks seeTouch RF Hybrid Keypad - Rectangle
The ultimate configurable hybrid keypad platform featuring raised curved buttons, integrated dimming, and unmatched customization options.
Configure
Product Details
Overview
Setting the standard for customizable control, seeTouch RF Hybrid keypads deliver unparalleled flexibility through the most comprehensive configuration options in the Lutron portfolio. The hybrid design eliminates the need for separate keypads and dimmers in retrofit applications, while the extensive configuration options—from single button to complex multi-button layouts with raise/lower controls—adapt to any control requirement. Raised, curved buttons provide exceptional tactile feedback and remain easy to locate in darkness, while upward-angled backlit engraving ensures clear readability from any viewing position. The integrated dimmer can be assigned to any button and features multi-location capability when paired with remote dimmers. Each keypad includes prepaid custom engraving redeemable for one personalized button kit, with field-changeable designs that allow complete reconfiguration without rewiring. Engineered for seamless HomeWorks integration, seeTouch RF hybrid keypads deliver unmatched customization and configuration flexibility to meet the needs of nearly any home environment.
- Available in architectural metal and matte finishes with over 20 color options including satin brass, antique bronze, and bright chrome
- Twelve configurations from 1-button to dual group layouts accommodate any control scheme or wall space requirement
- Raised curved buttons with smooth actuation provide confident control while angled engraving improves readability
- Integrated dimmer with LED+ technology supports all lamp types and can be assigned to any programmable input
- Field-changeable button kits with custom engraving allow complete reconfiguration without rewiring
- Clear Connect RF communication ensures reliable HomeWorks integration
Optional custom text or icons
HomeWorks
- Up to 7 buttons with raise/lower
- Requires a U.S. wallbox. 3 ½ in (89 mm) deep recommended, 2 ¼ in (57 mm) deep minimum
- If mounting one control above another, leave at least 4 ½ in (114 mm) vertical space between them
Specifications & Documents
General Specifications
Keypad Type
Wired with wireless communication
System Compatibility
HomeWorks
Button Configuration & Count
Up to 7 buttons with raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Two status LEDs
Connectivity
Connection Type
Uses conventional 3-way and 4-way wiring
Dimensions Specifications
H × W × D
H 4.69 in x 2.94 in x D 1.56 in
Wallbox Type
3 ½ in (89 mm) deep recommended
Electrical Specifications
Operating Voltage
120 V~ 50 / 60 Hz
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
