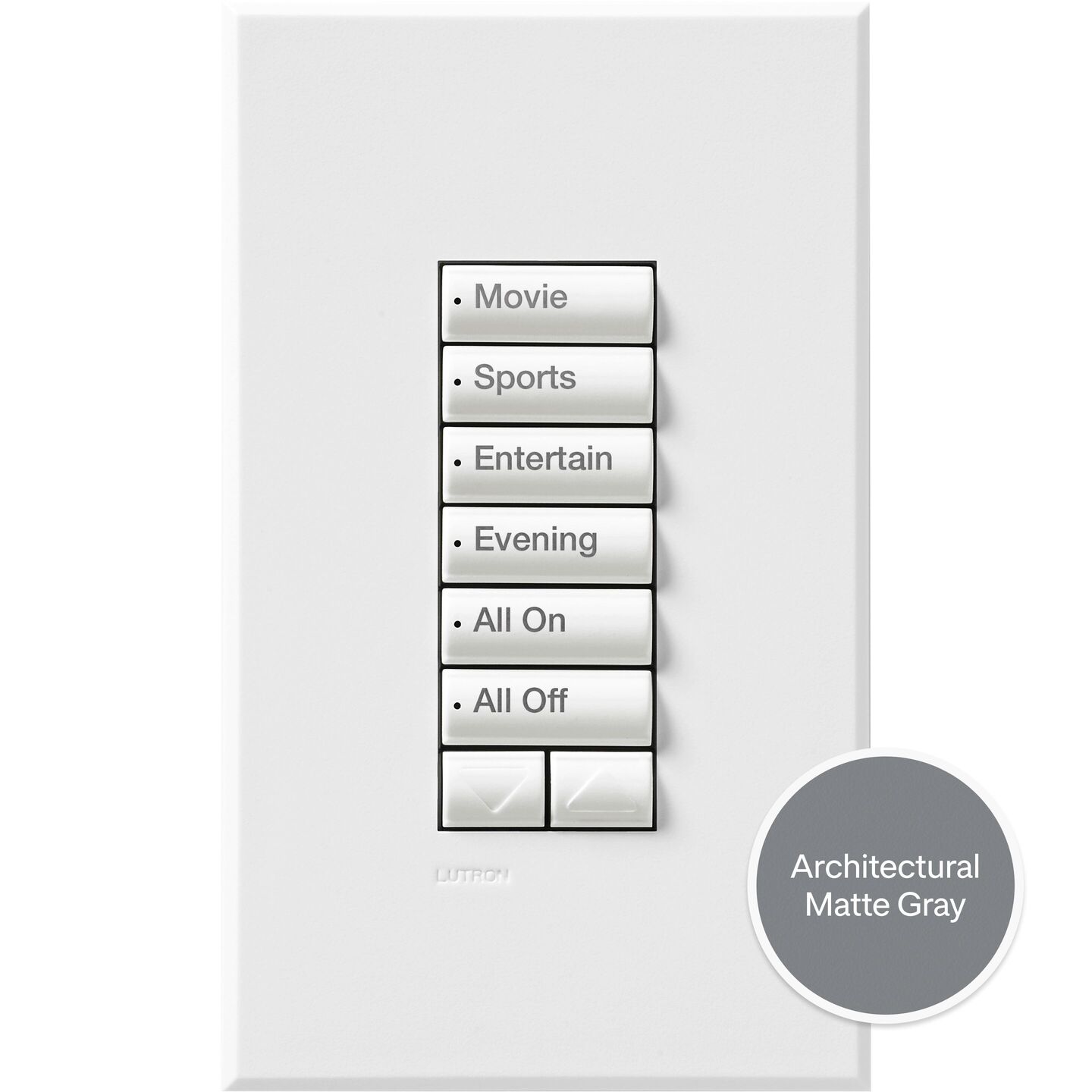

HomeWorks seeTouch Low Voltage Wired Keypad - Rectangle
The ultimate configurable wired keypad platform featuring raised curved buttons, backlit engraving, and unmatched customization options.
Configure
Product Details
Overview
Setting the standard for customizable control, seeTouch wired keypads deliver unparalleled flexibility through the most comprehensive configuration options in the Lutron portfolio. With 16 different button arrangements from single button to complex dual group layouts, seeTouch adapts to any control requirement while maintaining an elegant architectural presence. The signature raised, curved buttons provide exceptional ergonomics and remain easily identifiable by touch, while upward-angled backlit engraving ensures optimal readability day or night. Green status LEDs beside each button provide visual feedback during programming and operation, confirming button presses and system communication. All models include two contact closure inputs for additional control integration, with select configurations offering infrared receivers for remote operation. Supporting up to 100 devices on the QS wired link, seeTouch wired keypads are engineered for seamless HomeWorks integration, delivering unmatched customization and configuration flexibility to meet the needs of nearly any home environment.
- Extensive finish selection in architectural metals and matte polymers with over 20 colors from white to gold
- Twelve button configurations including unique dual raise/lower and dual group options for maximum flexibility
- Raised curved buttons deliver superior tactile feedback while angled backlit engraving enhances visibility
- Dual contact closure inputs provide independent control functions beyond the front button programming
- Field-changeable button kits with custom engraving allow complete reconfiguration without rewiring
- QS wired connection ensures reliable HomeWorks integration
Optional custom text or icons
HomeWorks
- Up to 7 buttons with raise/lower
- Requires a U.S. wallbox. 3 ½ in (89 mm) deep recommended, 2 ¼ in (57 mm) deep minimum
- If mounting one control above another, leave at least 4 ½ in (114 mm) vertical space between them
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
HomeWorks
Button Configuration & Count
Up to 7 buttons with raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Two status LEDs
Connectivity
Connection Type
low voltage wire
QS Link Wire Specifications
Each terminal accepts up to two 18 AWG (1.0 mm2) wires.
RF Frequency & Range
Each terminal accepts up to two 18 AWG (1.0 mm2) wires.
Dimensions Specifications
H × W × D
H 4.69 in x 2.94 in x D 1.36 in
Wallbox Type
3 ½ in (89 mm) deep recommended
Electrical Specifications
Operating Voltage
24–36 V- 30 mA
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
