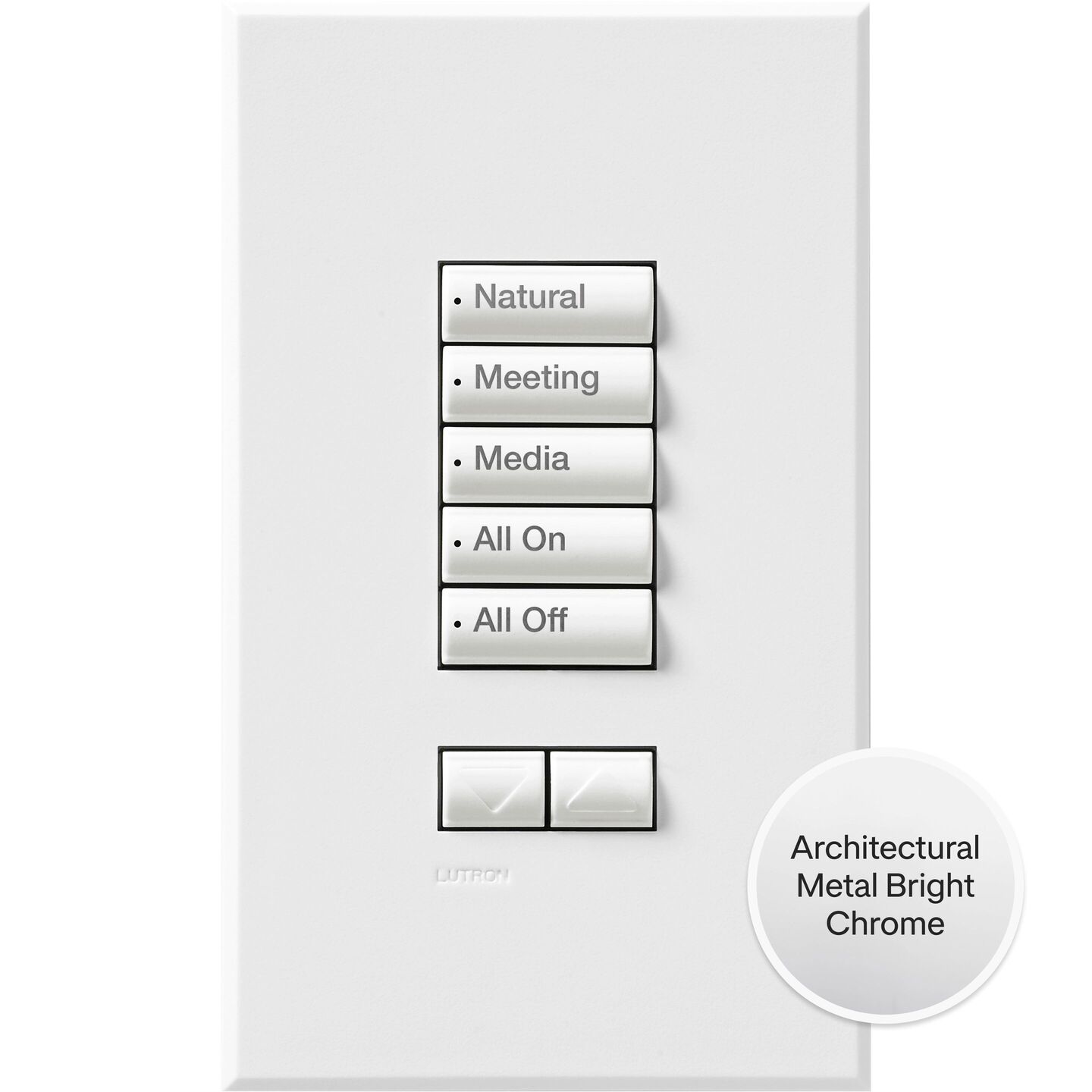

Athena/myRoom XC seeTouch Low Voltage Wired Keypad
The ultimate configurable keypad platform for professional spaces featuring raised curved buttons and unmatched customization options.
Configure
Product Details
Overview
Engineered for commercial flexibility, seeTouch wired keypads deliver unparalleled flexibility to Athena and myRoom XC installations with the most comprehensive configuration options in the Lutron portfolio. The extensive configuration options—12 different button arrangements—allow facilities to standardize on a single keypad family while addressing diverse control requirements from executive offices to ballrooms. Raised, curved buttons provide reliable tactile feedback essential for commercial environments, remaining easily distinguishable in conference room dimness or after-hours operation, while upward-angled backlit engraving ensures clear visibility for all users. The robust construction withstands continuous commercial use. Dual contact closure inputs expand control possibilities for integration with building systems, while green status LEDs provide maintenance staff with clear operational feedback. Engineered for seamless Athena and myRoom XC integration, seeTouch delivers unmatched customization and configuration flexibility to meet the needs of nearly any professional or hospitality environment.
- Commercial-grade construction in architectural metals and durable matte polymers with extensive color selection
- Twelve professional button configurations support everything from simple zone control to complex scene management
- Raised curved buttons ensure reliable operation in commercial settings with angled engraving for universal readability
- Protected terminal blocks with contact closure inputs enable building management system integration
- Field-changeable button kits with custom engraving allow complete reconfiguration without rewiring
- QS wired connection provides dependable Athena and myRoom XC integration for enterprise installations
Optional custom text or icons
Athena
myRoom XC
- Up to 6 buttons with raise/lower
- Typical backbox dimensions: 3.75 in (95 mm) high, 2.1875 in (55 mm) wide, 2.75 in (70 mm) deep.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Athena
myRoom XC
Button Configuration & Count
Up to 6 buttons with raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Two status LEDs
Connectivity
Connection Type
Wired
QS Link Wire Specifications
Accept up to two 18 AWG (1.0 mm2 ).
Dimensions Specifications
H × W × D
H 4.5 in x W 2.75 in x D 2 in
Wallbox Type
2.75 in deep recommended
Electrical Specifications
Operating Voltage
24-36 V 30 mA
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
8 years against defects in materials/workmanship
