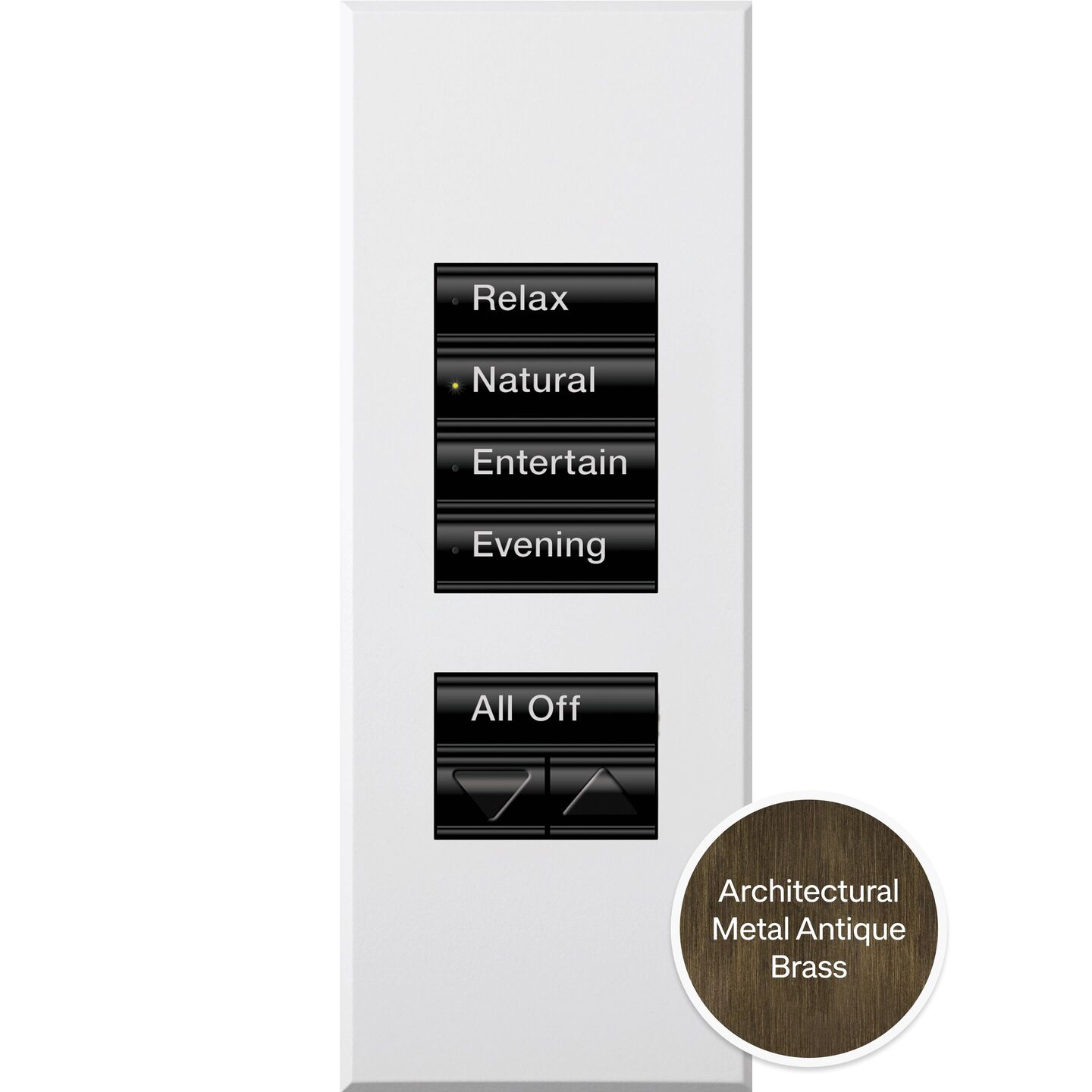

HomeWorks Signature Series Keypad
Ultra-narrow wired keypad featuring space-saving profile, backlit ergonomic buttons, and architectural metal finishes.
Configure
Product Details
Overview
Built for spaces where every inch matters, Signature Series keypads deliver full-featured control in an ultra-narrow profile. Perfect for installations between doorframes and architectural obstructions, these keypads provide sophisticated ergonomics in a miniaturized form factor that simplifies installation and maximizes wall space. Rounded buttons with upward-angled engraving provide exceptional readability, while backlit text ensures clear visibility day or night. Available in 14 configurations from single button to 7-button layouts, Signature Series adapts to any control requirement while maintaining its sleek profile. The architectural metal faceplate snaps on without visible fasteners, creating a refined appearance that sits close to the wall with beveled edges. Field-changeable button assemblies enable easy updates to engraving or configuration without rewiring, making Signature Series the solution when architectural constraints demand both minimal footprint and maximum functionality.
- Solid metal faceplates available in Chrome, Brass, Bronze, Nickel, and Anodized Aluminum finishes with black buttons
- Fourteen button configurations support comprehensive lighting, shade, and scene control for complete flexibility
- Rounded buttons with angled engraving provide superior ergonomics and readability in minimal wall space
- Backlit engraving ensures readability in darkness while LED indicators confirm button presses and system status
- Field-replaceable button kits with custom engraving allow configuration changes without electrical work
- QS wired connection with two contact closure inputs provides reliable HomeWorks integration and expanded functionality
Optional custom text or icons
HomeWorks
- Up to 7 buttons with raise/lower
- Signature SeriesT Wallbox P/N WBOX-SA1-Q1 (sold separately) 4.45 in (113.03 mm) tall by 1.55 in (39.37 mm) wide by 2.8 in (71.12 mm) deep.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
HomeWorks
Colors and Finishes
12 Architectural Metal Finishes (faceplates only)
1 Architectural Matte Finish (Metal)
Button Configuration & Count
Up to 7 buttons with raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Green or Blue LED Status lights
Connectivity
Connection Type
QS Wire
QS Link Wire Specifications
Accept up to two 18 AWG (1.0 mm2 ).
RF Frequency & Range
Accept up to two 18 AWG (1.0 mm2 ).
Dimensions Specifications
H × W × D
H 4.75 in x W 1.8 in x 1.8 in
Wallbox Type
2.8 in (71.12 mm) deep recommended
Electrical Specifications
Operating Voltage
24-36 V 30 mA
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
8 years against defects in materials/workmanship
