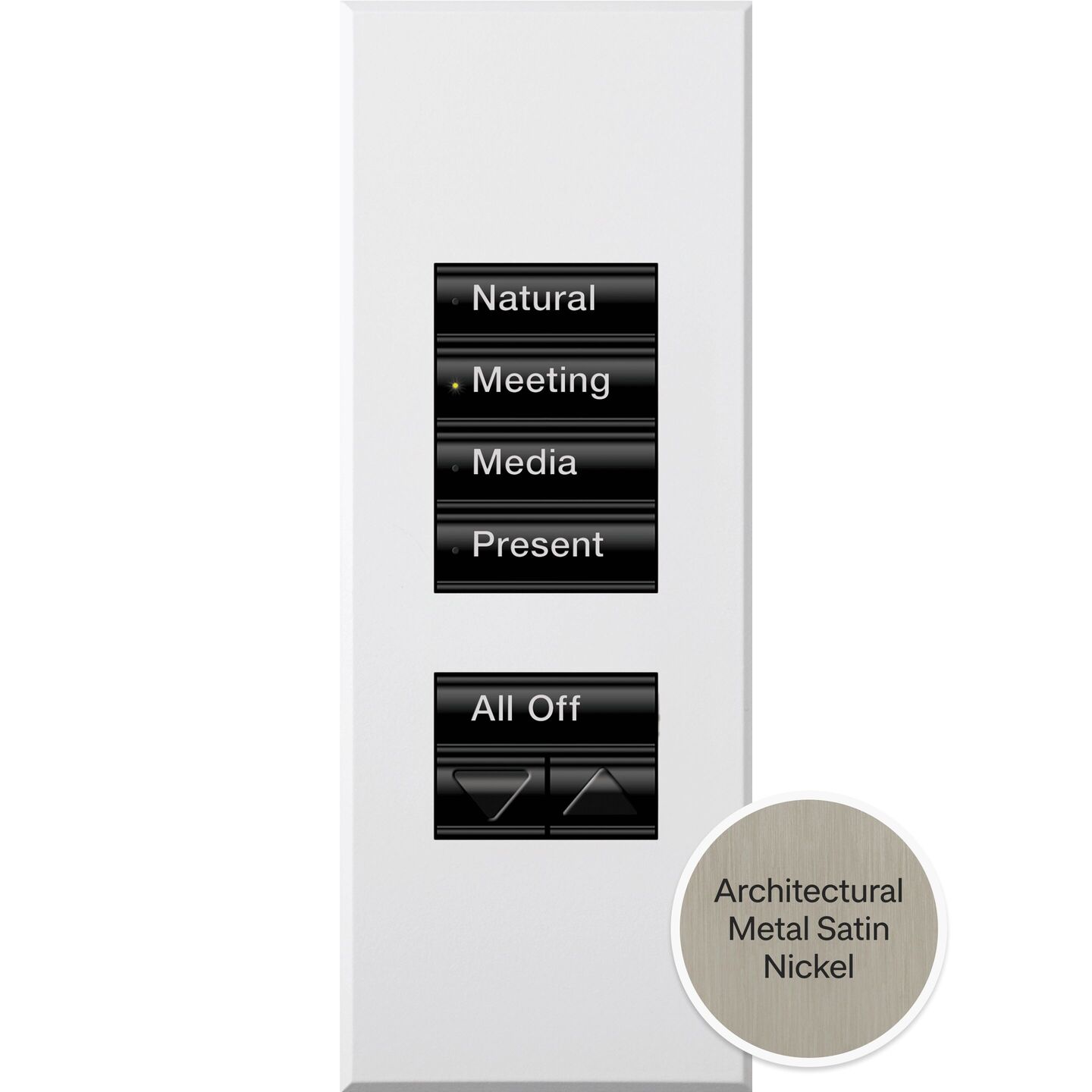

Athena/myRoom XC Signature Series Keypad
Ultra-narrow wired keypad featuring space-saving profile, backlit ergonomic buttons, and commercial-grade durability.
Configure
Product Details
Overview
Engineered for commercial spaces where wall real estate is precious, Signature Series keypads provide comprehensive control in an exceptionally narrow profile. Ideal for corridors, meeting rooms, and hospitality environments with tight architectural constraints, these keypads deliver proven ergonomics in a space-saving design that fits where others cannot. Rounded buttons with upward-angled engraving ensure readability from any viewing angle, while backlit text maintains visibility in all lighting conditions. Supporting 12 configurations from single button to complex 7-button layouts, Signature Series handles everything from simple zone control to sophisticated scene management. The architectural metal faceplate installs flush against the wall with beveled edges and no visible fasteners for a clean commercial aesthetic. Field-changeable button assemblies allow facilities to update engravings or reconfigure controls as spaces evolve, making Signature Series the professional solution when narrow doorways, columns, and architectural features demand both minimal footprint and commercial-grade performance.
- Solid metal faceplates in Chrome, Brass, Bronze, Nickel, and additional finishes suitable for commercial specifications
- Twelve button configurations accommodate zone, scene, and shade control for complete commercial flexibility
- Rounded buttons with angled engraving deliver proven ergonomics while maximizing readability in high-traffic areas
- Backlit engraving provides 24/7 visibility while LED feedback confirms operation for reliable commercial use
- Field-replaceable button kits with custom commercial engravings enable updates without disrupting operations
- QS wired connection ensures reliable Athena and myRoom XC integration
Optional custom text or icons
Athena
myRoom XC
- Up to 7 buttons with raise/lower
- Signature SeriesT Wallbox P/N WBOX-SA1-Q1 (sold separately) 4.45 in (113.03 mm) tall by 1.55 in (39.37 mm) wide by 2.8 in (71.12 mm) deep.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Athena
myRoom XC
Colors and Finishes
12 Architectural Metal Finishes (faceplates only)
1 Architectural Matte Finish (Metal)
Button Configuration & Count
Up to 7 buttons with raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Green or Blue LED Status lights
Connectivity
Connection Type
QS Wire
QS Link Wire Specifications
Accept up to two 18 AWG (1.0 mm2 ).
RF Frequency & Range
Accept up to two 18 AWG (1.0 mm2 ).
Dimensions Specifications
H × W × D
H 4.75 in x W 1.8 in x 1.8 in
Wallbox Type
2.8 in (71.12 mm) deep recommended
Electrical Specifications
Operating Voltage
24-36 V 30 mA
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
