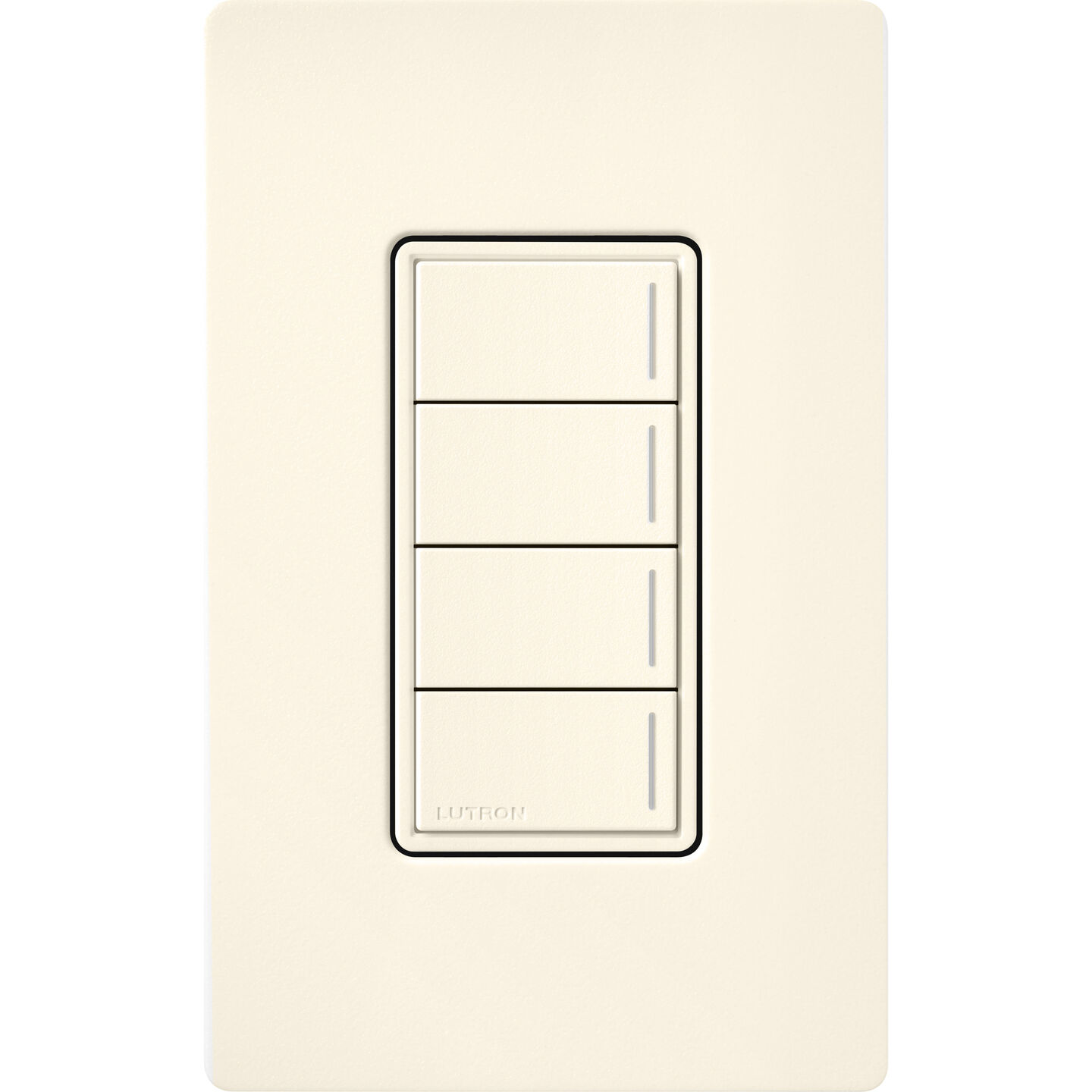

Athena/myRoom XC Sunnata Keypad
Wireless keypad featuring LED lightbar scene feedback, custom engraving, and commercial-grade reliability.
Configure
Product Details
Overview
Purpose-built for commercial environments, Sunnata RF keypads provide intuitive wireless control for Athena and myRoom XC installations. Vertical LED lightbars accent each button, ensuring easy location in low-light conditions while providing immediate visual confirmation of active lighting scenes, shade positions, and system states. The wireless design simplifies installation in both new construction and renovation projects, eliminating complex control wiring while maintaining enterprise-grade reliability. Available in 2-button, 3-button with raise/lower, or 4-button configurations, each keypad features custom engravings designed specifically for commercial applications. The styling coordinates with Sunnata switches and dimmers throughout the facility, while multiple gloss and satin finishes complement any architectural aesthetic. Engineered from the start to work with Lutron's most advanced wireless control systems, Sunnata delivers the reliability and performance demanded by Athena and myRoom XC environments.
- Precision-molded polymer construction in multiple gloss and satin finishes suitable for professional commercial installations
- Three configurations including 2-button, 3-button with raise/lower, or 4-button layouts for comprehensive scene control
- Large buttons engineered for high-traffic use with smooth actuation and clear tactile response
- Vertical LED lightbars provide constant orientation lighting and real-time feedback for scene status in commercial spaces
- Custom engravings with professional text and icon options curated for commercial environments
- Clear Connect Type X wireless technology delivers reliable communication with Athena and myRoom XC systems
Optional custom text or icons
Athena
myRoom XC
- 1-gang of up to 4 buttons with optional Raise/Lower
- Requires a U.S. wallbox. 3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Athena
myRoom XC
Colors and Finishes
20 Satin Finishes
4 Gloss Finishes
Button Configuration & Count
Up to 4 buttons with optional raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Adjustable status LED intensity through system level programming
Connectivity
Connection Type
Commercial Sunnata RF keypads require a 120–277 V~ hot and neutral wire connection.
RF Frequency & Range
Each Sunnata keypad should have at least two other non-battery powered Clear Connect–Type X devices within 25 ft (7.6 m).
Dimensions Specifications
H × W × D
H 4.7 in x W 2.95 in x D 1.4 in
Wallbox Type
Requires a U.S. wallbox
Wallbox Depth Required
3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum
Electrical Specifications
Operating Voltage
120–277 V~ 50/60 Hz 0.25 A
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
