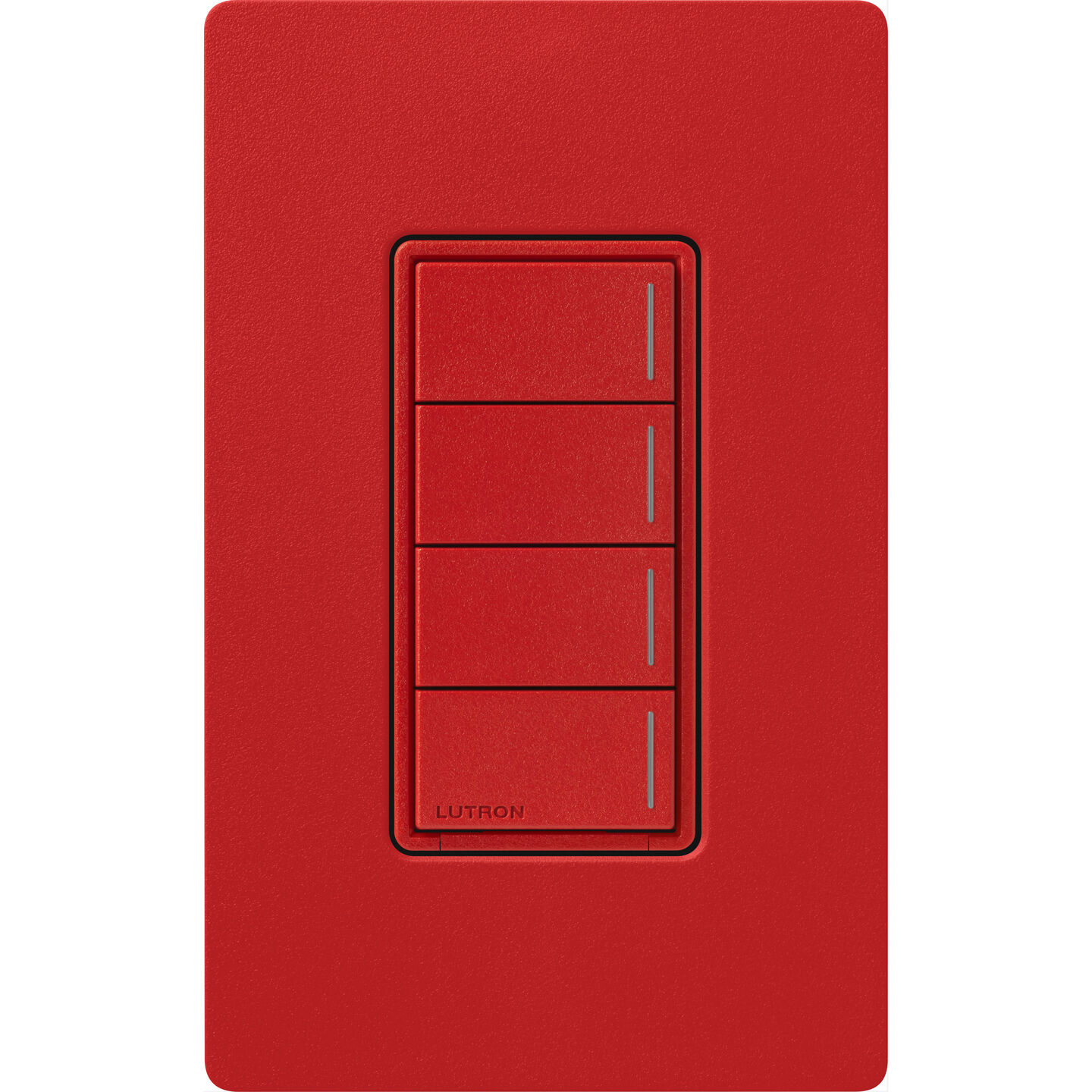

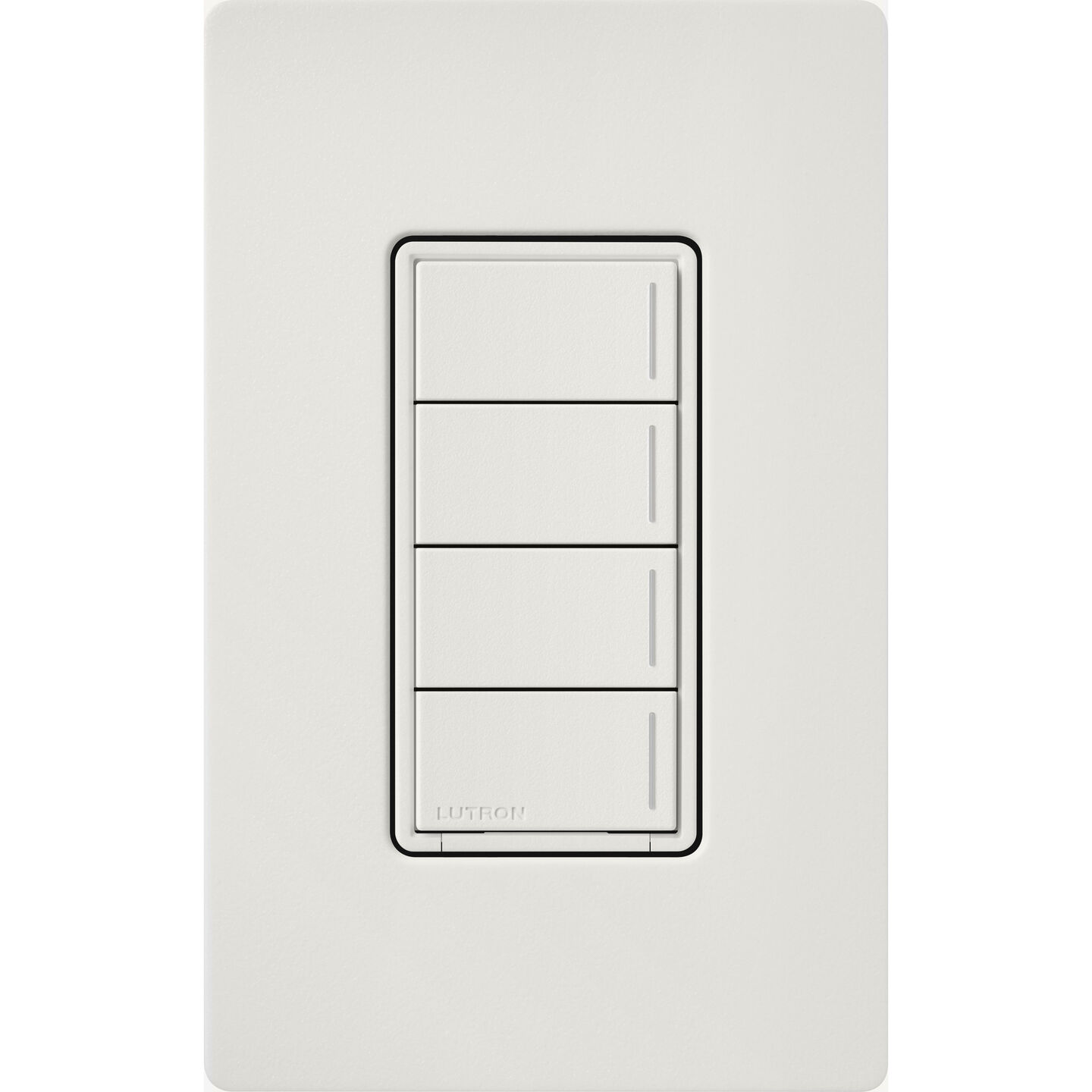

HomeWorks Sunnata RF Hybrid Keypad
Hybrid wireless keypad featuring LED lightbar scene feedback, integrated dimming, and HomeWorks integration.
Configure
Product Details
Overview
Delivering next-gen performance in a clean design, Sunnata RF hybrid keypads combine scene control and local dimming in a single HomeWorks device. By consolidating keypad and dimmer functions, hybrid keypads eliminate the need for separate devices while maintaining full system integration. Vertical LED lightbars accent each button, providing both wayfinding illumination and clear visual feedback on active scenes and dimming levels. The integrated dimmer features LED+ Advanced Technology for superior performance with dimmable LED, incandescent, and halogen bulbs, while a front accessible service switch ensures safe lamp replacement. Available in 2-button, 3-button with raise/lower, or 4-button configurations, each hybrid can be personalized with custom engravings through myProjects configuration. Engineered from the start to work with Lutron's most advanced wireless control systems, Sunnata RF hybrid keypads guarantee reliable communication while coordinating with Sunnata switches throughout the home.
- Precision-molded polymer construction available in multiple gloss and satin finishes for seamless interior coordination
- Hybrid design integrates full dimming control with 2-button, 3-button with raise/lower, or 4-button keypad configurations
- Large buttons provide confident operation with smooth, responsive actuation and reassuring tactile feedback
- Vertical LED lightbars create ambient navigation lighting while displaying scene status and dimming levels at a glance
- Field-replaceable button kits support Lutron-defined or custom text and icon personalization configured through myProjects
- Clear Connect Type X wireless technology with LED+ Advanced dimming ensures smooth continuous dimming of all lamp types
Optional custom text or icons
HomeWorks
- 1-gang of up to 4 buttons with optional Raise/Lower
- Requires a U.S. wallbox. 3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
HomeWorks
Colors and Finishes
20 Satin Finishes
4 Gloss Finishes
Button Configuration & Count
Up to 4 buttons with optional raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Adjustable status LED intensity through system level programming
Connectivity
Connection Type
Hybrid keypads require a 120 V~ hot and neutral wire connection.
RF Frequency & Range
Each Sunnata keypad should have at least two other non-battery powered Clear Connect–Type X devices within 25 ft (7.6 m).
Dimensions Specifications
H × W × D
H 4.7 in x W 2.95 in x D 1.4 in
Wallbox Type
Requires a U.S. wallbox
Wallbox Depth Required
3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum
Electrical Specifications
Operating Voltage
120–277 V~ 50/60 Hz 0.25 A
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
