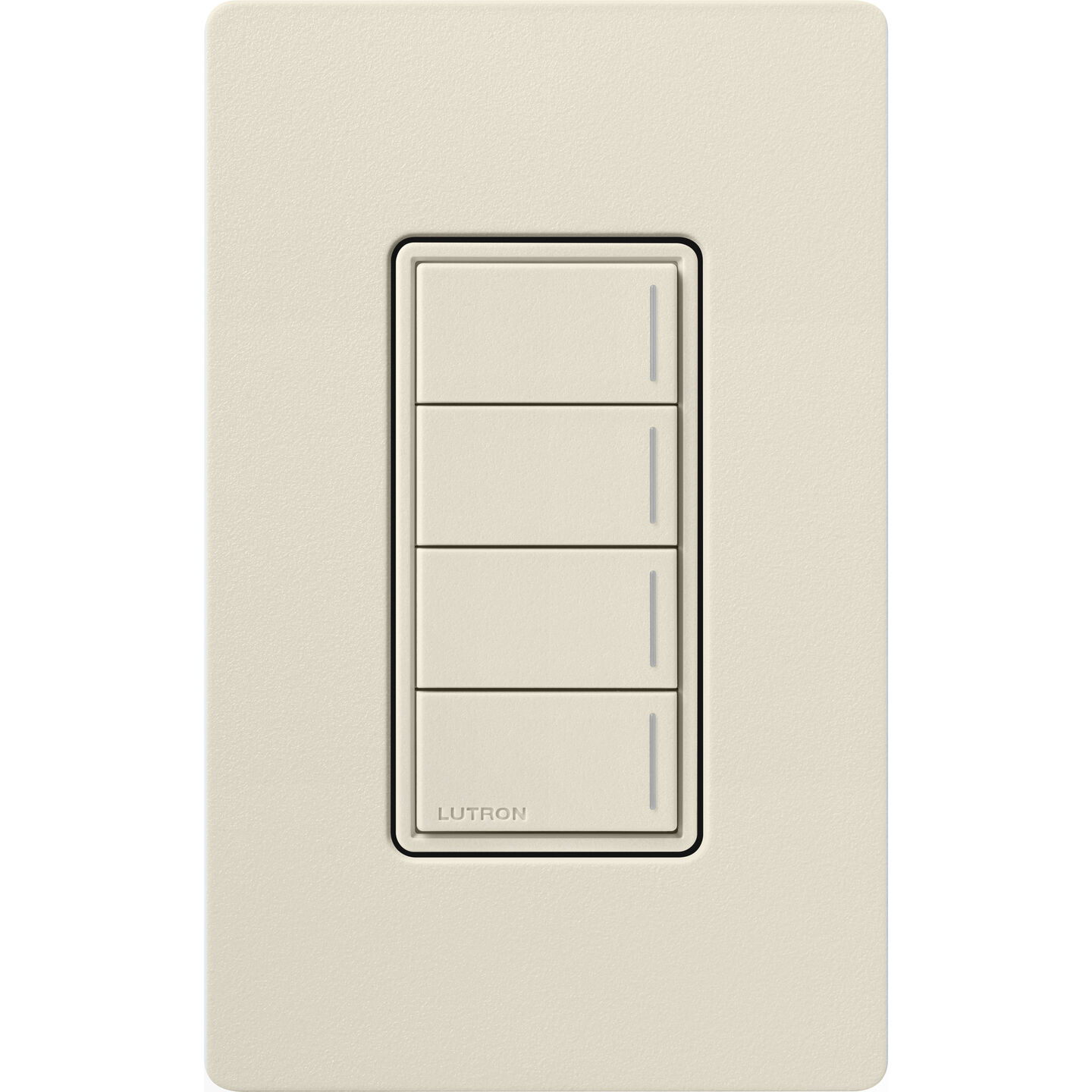

HomeWorks Sunnata Keypad
Wireless keypad featuring LED lightbar scene feedback, customizable control, and HomeWorks integration.
Configure
Product Details
Overview
Delivering next-gen performance in a clean design, Sunnata keypads bring wireless scene management to HomeWorks systems. Vertical LED lightbars accent each button, making controls easy to locate in darkness while providing clear visual feedback on active scenes. Installation flexibility makes Sunnata ideal for both new construction and retrofit projects, requiring neutral wire connection for reliable operation. Available in 2-button, 3-button with raise/lower, or 4-button configurations, each keypad can be personalized with custom engravings through myProjects configuration to clearly identify lighting scenes, shade control, or other connected devices. The aesthetic coordinates perfectly with Sunnata switches and dimmers throughout the home, while multiple gloss and satin finishes match or complement any décor. Engineered from the start to work with Lutron's most advanced wireless control systems, Sunnata delivers simple, reliable control that enhances both functionality and style.
- Precision-molded polymer construction available in multiple gloss and satin finishes for seamless interior coordination
- Choose from 2-button, 3-button with raise/lower, or 4-button configurations to match control requirements and user preferences
- Large buttons provide confident operation with smooth, responsive actuation and reassuring tactile feedback
- Vertical LED lightbars create ambient navigation lighting while displaying scene status at a glance
- Field-replaceable button kits support Lutron-defined or custom text and icon personalization configured through myProjects
- Clear Connect Type X wireless technology ensures reliable communication with HomeWorks systems for instantaneous response
Optional custom text or icons
HomeWorks
- 1-gang of up to 4 buttons with optional Raise/Lower
- Requires a U.S. wallbox. 3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
HomeWorks
Colors and Finishes
20 Satin Finishes
4 Gloss Finishes
Button Configuration & Count
Up to 4 buttons with optional raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Adjustable status LED intensity through system level programming
Connectivity
Connection Type
Sunnata keypads require a 120–277 V~ hot and neutral wire connection.
RF Frequency & Range
Each Sunnata keypad should have at least two other non-battery powered Clear Connect–Type X devices within 25 ft (7.6 m).
Dimensions Specifications
H × W × D
H 4.7 in x W 2.95 in x D 1.4 in
Wallbox Type
Requires a U.S. wallbox
Wallbox Depth Required
3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum
Electrical Specifications
Operating Voltage
120–277 V~ 50/60 Hz 0.25 A
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
