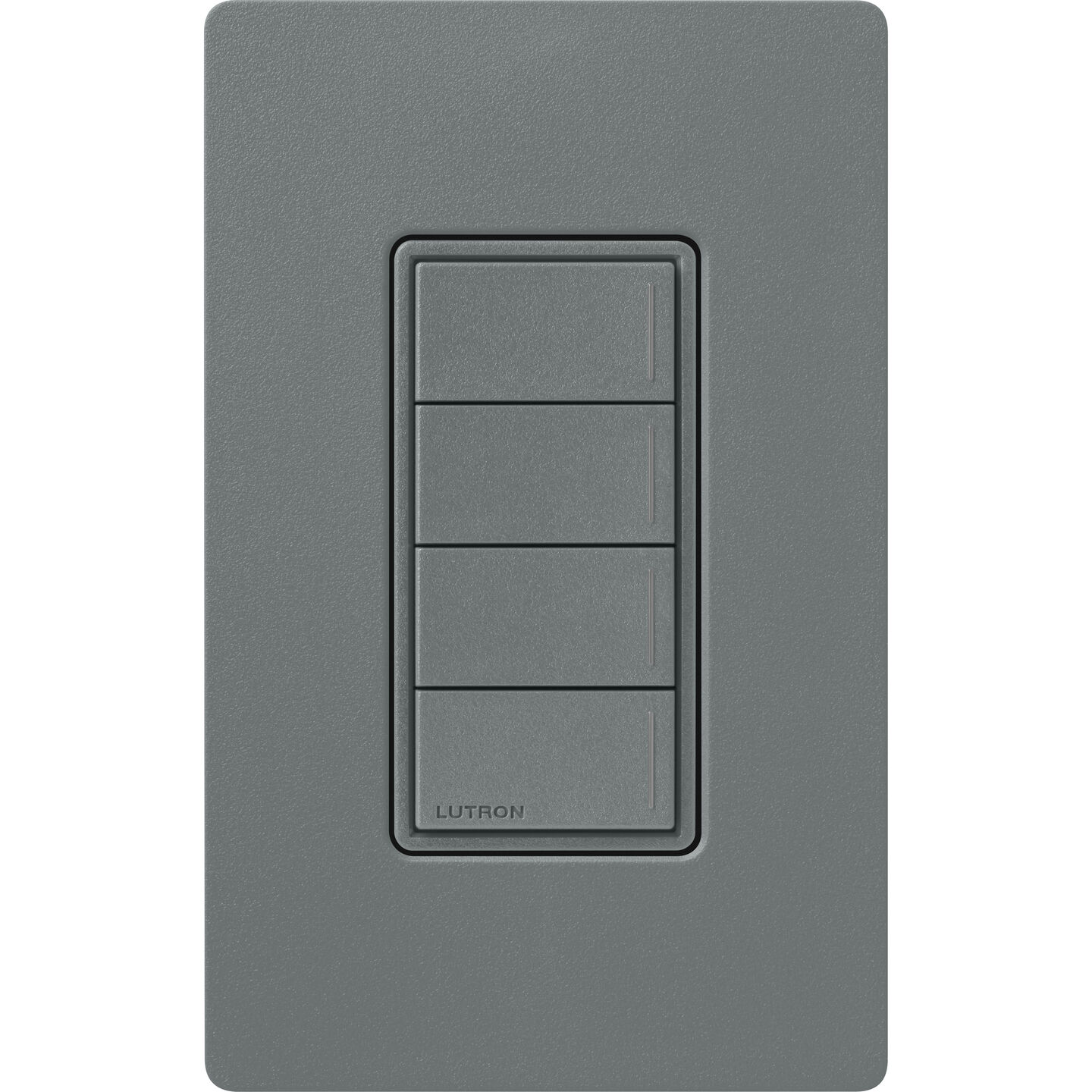

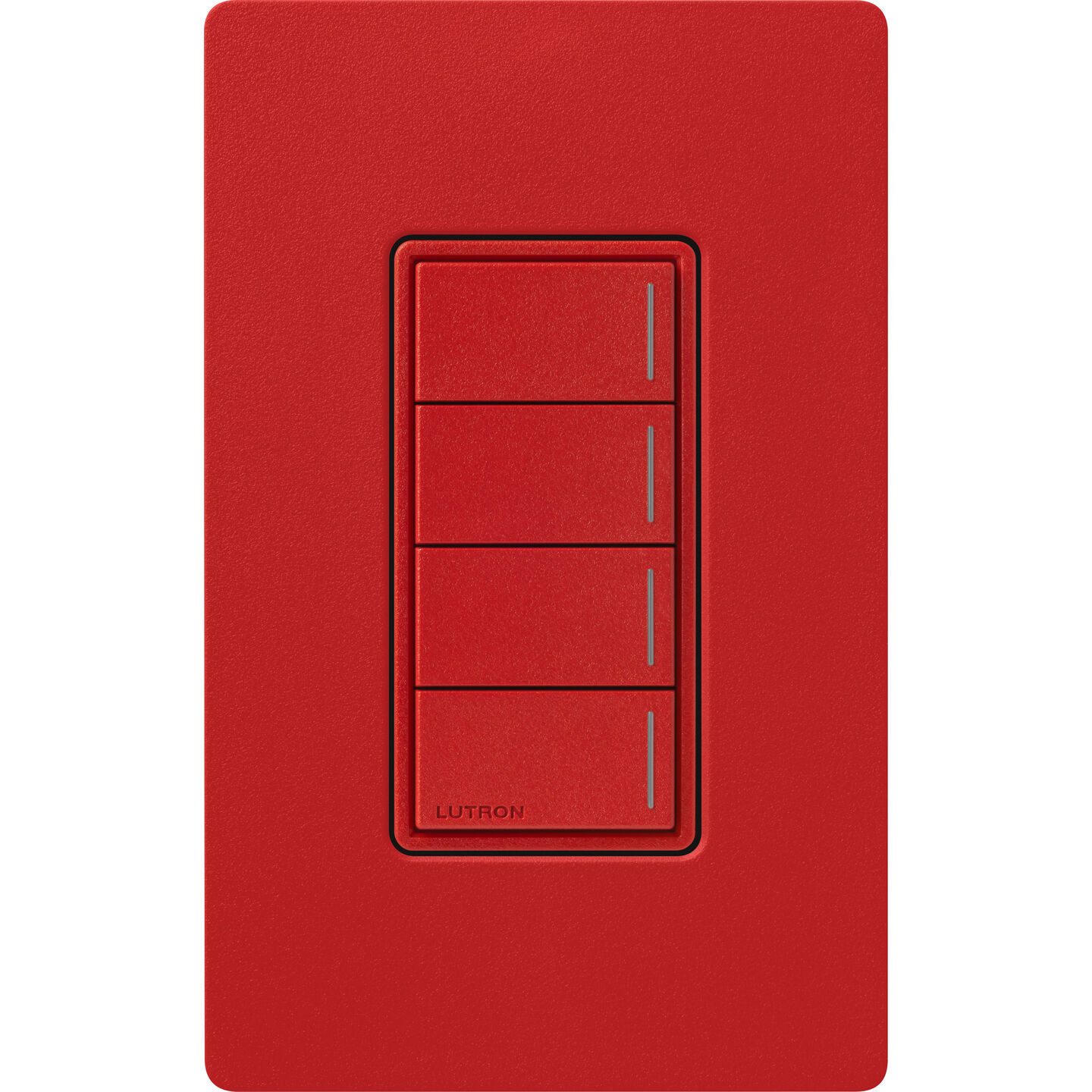

Radio RA3 Sunnata Keypad
Wireless keypad featuring LED lightbar scene feedback, customizable control, and native RadioRA 3 integration.
Configure
Product Details
Overview
Delivering next-gen performance in a clean design, Sunnata keypads bring wireless scene management to RadioRA 3 systems. Vertical LED lightbars accent each button, making controls easy to locate in darkness while providing clear visual feedback on active scenes. Installation flexibility makes Sunnata ideal for both new construction and retrofit projects, working with existing wiring without requiring a neutral connection. Available in 2-button, 3-button with raise/lower, or 4-button configurations, each keypad can be personalized with custom engravings to clearly identify lighting scenes, shade control, or other connected devices. The aesthetic coordinates perfectly with Sunnata switches and dimmers, while multiple gloss and satin finishes match or complement any décor. Engineered from the start to work with Lutron's most advanced wireless control systems, Sunnata delivers simple, reliable control that enhances both functionality and style.
- Precision-molded polymer construction available in multiple gloss and satin finishes to complement any interior design aesthetic
- Choose from 2-button, 3-button with raise/lower, or 4-button configurations to match control requirements and user preferences
- Large buttons deliver confident tactile response with smooth actuation, providing reassuring feedback with every press
- Vertical LED lightbars on each button provide illumination for navigation in low light while displaying real-time scene status
- Field-replaceable button kits include default markings with options for custom text and icon personalization through Lutron Designer software
- Clear Connect Type X wireless technology ensures reliable communication with RadioRA 3 systems for instantaneous response
Optional custom text or icons
Radio RA3
- 1-gang of up to 4 buttons with optional Raise/Lower
- Requires a U.S. wallbox. 3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum.
Specifications & Documents
General Specifications
Keypad Type
Wired
System Compatibility
Radio RA3
Colors and Finishes
20 Satin Finishes
4 Gloss Finishes
Button Configuration & Count
Up to 4 buttons with optional raise/lower
Engraving Options
Optional custom text or icons
Status Indicator
Adjustable status LED intensity through system level programming
Connectivity
Connection Type
Sunnata keypads require a 120–277 V~ hot and neutral wire connection.
RF Frequency & Range
Each Sunnata keypad should have at least two other non-battery powered Clear Connect–Type X devices within 25 ft (7.6 m).
Dimensions Specifications
H × W × D
H 4.7 in x W 2.95 in x D 1.4 in
Wallbox Type
Requires a U.S. wallbox
Wallbox Depth Required
3½ in (89 mm) deep recommended, 2¼ in (57 mm) deep minimum
Electrical Specifications
Operating Voltage
120–277 V~ 50/60 Hz 0.25 A
Certifications Specifications
Environmental Rating
Indoor use only
Safety (UL, cUL)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
Warranty
Limited Warranty
