Rania D2 Fixed Remodeler New Construction – 2” Aperture
Exceptional 3-channel Natural Light in a 2-inch fixed shallow downlight with IC-rated housing for new construction projects.
Configure
Product Details
Overview
With innovative 3-channel engineering, this 2-inch fixed shallow downlight brings Rania's Natural Light to new construction projects. The housing mounts directly to ceiling joists before drywall installation, accommodating tight ceiling spaces while maintaining full performance. Its IC-rated design features die-cast aluminum trims with a nearly invisible edge for seamless ceiling integration. Rania's 3-channel technology produces natural white light that surpasses conventional tunable white solutions, delivering a broader CCT range with consistent 90+ CRI rendering from 2,700K to 5,000K. Control the Rania D2 New Construction with the HomeWorks, Athena, and myRoom XC wireless control systems to bring the outside in—capturing the full spectrum of daylight from sunrise to sunset through location-aware sun tracking.
- 3-channel light engine replicates the feeling of natural daylight more precisely than conventional 2-channel tunable white or warm-dim luminaires
- Delivers a broad range of natural white light, from incandescent glow to afternoon sun (1,800K - 5,500K)
- 90+ CRI light renders colors, objects, and finishes vividly under both warm and cool light
- This fixed, 2-inch downlight is engineered for consistent downward illumination and is available in multiple beam angles
- Shallow housing design accommodates tight ceiling spaces while maintaining full performance capabilities

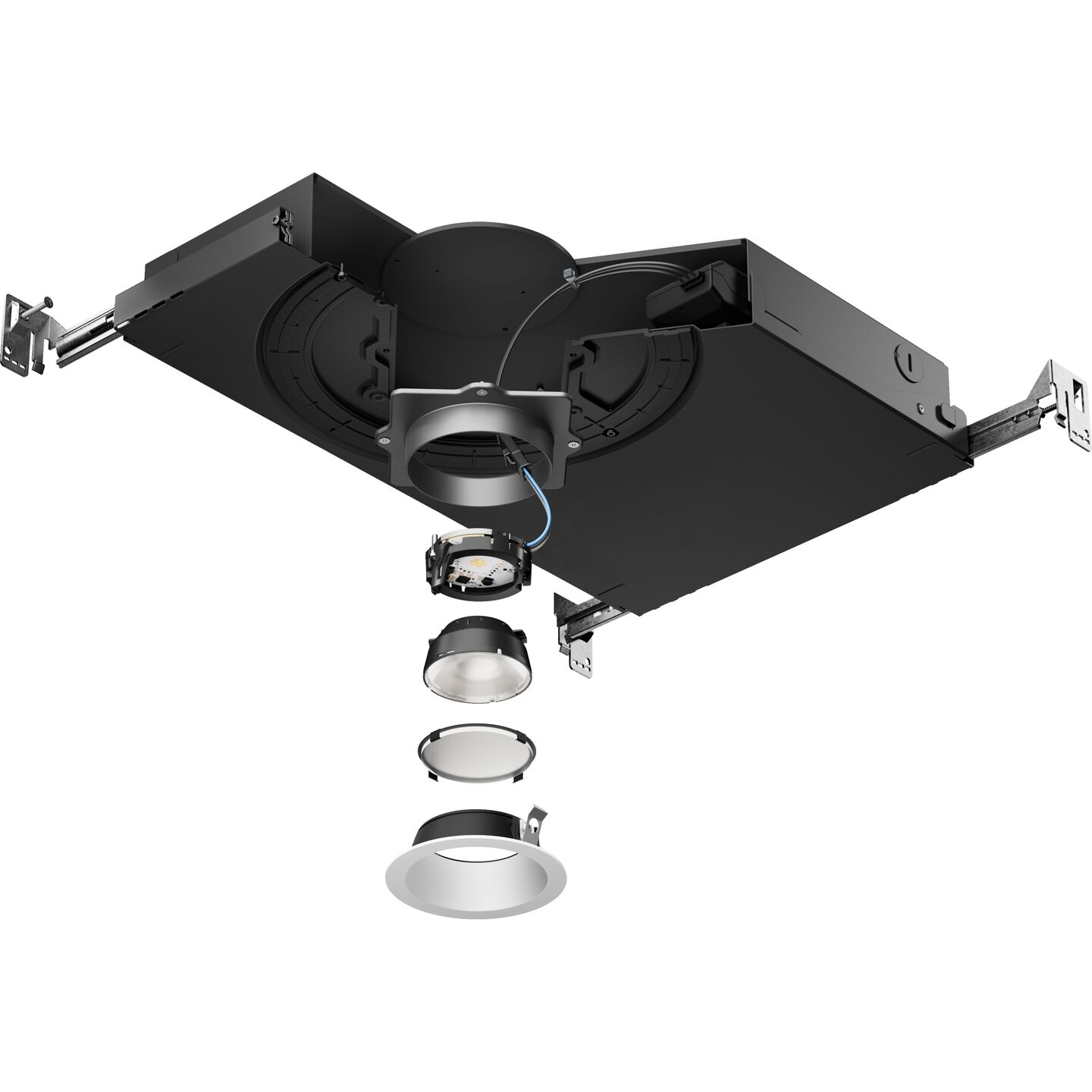

- This IC-rated downlight mounts directly to ceiling joists before drywall installation, ensuring solid support and allowing for precise placement during construction
- Designed to work with Lutron's wireless control systems, Rania D2 New Construction communicates with the control system via Clear Connect Type X
3-channel natural white light /1,800K - 5,500K
90+ CRI from 2,700K - 5,000K/ R9 > 80
Native wireless control with Lutron Clear Connect Type X
- HomeWorks
- Athena
- myRoom XC
Specifications & Documents
Performance Specifications
Light Engine
3-channel natural white light
CCT Range
1,800K - 5,500K
Saturated Colors
N/A
Color Rendering
CRI 90+ CRI from 2,700K - 5,000K
R9 > 80
No Vibrancy
Rated Life
50,000 hours to L70
Dimming Range
0.1% - 100%
Delivered Lumens
Up to 1161 lm
Beam Angles
Spot (15°)
Narrow Flood (25°)
Flood (40°)
Wide Flood (60°)
Control Specifications
Control Protocol
Wireless RF/CCX (Lutron Clear Connect-Type X)
Dimensions Specifications
Aperture Size
2 in
H x L x W
Housing Height 2.14 (54.31 mm)
Housing Length: 16.36 in (415.54 mm)
Housing Width: 10.07 in (255.78 mm)
Overall Dimensions
Housing Height 2.14 (54.31 mm)
Housing Length: 16.36 in (415.54 mm)
Housing Width: 10.07 in (255.78 mm)
Cut-out Dimensions
3.25 in (82.55 mm) flanged;
4.25 in (108.0 mm) flangeless round mud-in;
4.00 in (101.6 mm) flangeless square mud-in;
2.83 in (71.88 mm) flangeless millwork
Ceiling Thickness
0.625 - 2 in (15.8 - 50.8 mm)
Electrical Specifications
Power Consumption
18 W
Voltage
120 V~ 50/60 Hz
Current
800 mA, 0.2 mS duration
Mechanical Specifications
Installation Options

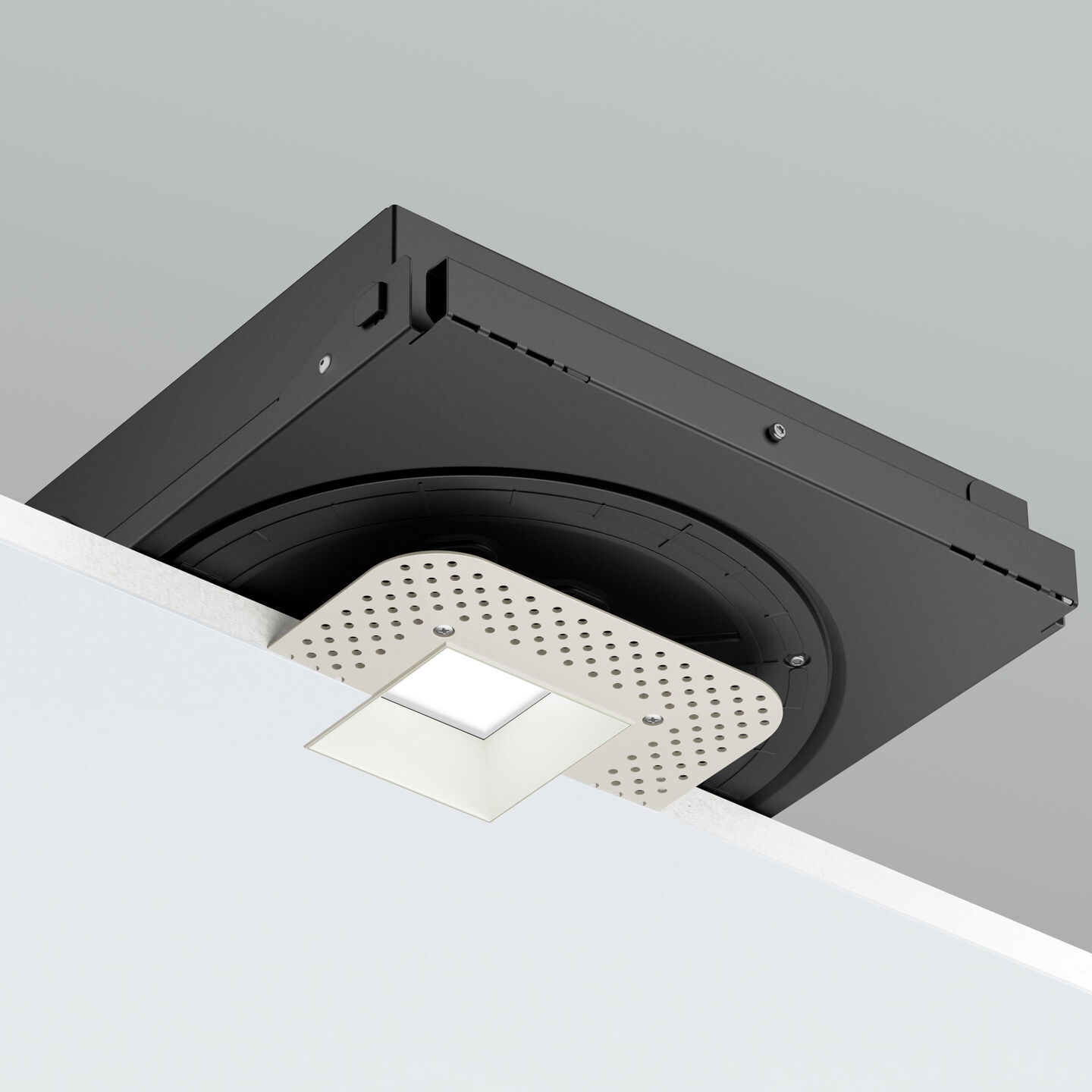

Flanged, Flangeless Mud-in, Flangeless Millwork
Certifications Specifications
Environmental Rating
IP20 indoor dry/ damp location
Certifications
UL, cUL, 120V~: FCC Class B, IC Rated; T24(JA8)
Warranty
5 year fixture, LED and dimming warranty
