Ketra D2 Adjustable Remodeler Downlight – 2” Aperture
Unmatched 4-channel Natural Light in a 2-inch adjustable downlight with exacting aim control for finished ceilings in remodel projects.
Configure
Product Details
Overview
The only 2-inch downlight with Ketra quality of light, this adjustable fixture brings patented TruBeam optics to remodeler applications. The D2 Remodeler installs directly through finished ceilings via a standard 3.125-inch cutout (4-inch for flangeless mud-in trim), with an exacting tilt-and-rotation system offering 40-degree tilt and 361-degree rotation for precise aiming. Its non-IC-rated housing is optimized for remodeler projects. With over 70 patents, Ketra's 4-channel light engine produces unprecedented Natural Light, featuring Vibrancy control that allows customization of how light renders color without changing the color temperature itself, and Color Lock technology that ensures consistent performance throughout the fixture's lifetime. Control the Ketra D2 Remodeler with the location-aware HomeWorks control system to dissolve the boundary between the interior and exterior with sun-tracking precision that encompasses everything from the warmth of candlelight to the cool, pure brilliance of arctic skies.
- 4-channel engine produces full-spectrum natural white light and a range of 16.7 million colors, including pastels and saturated hues

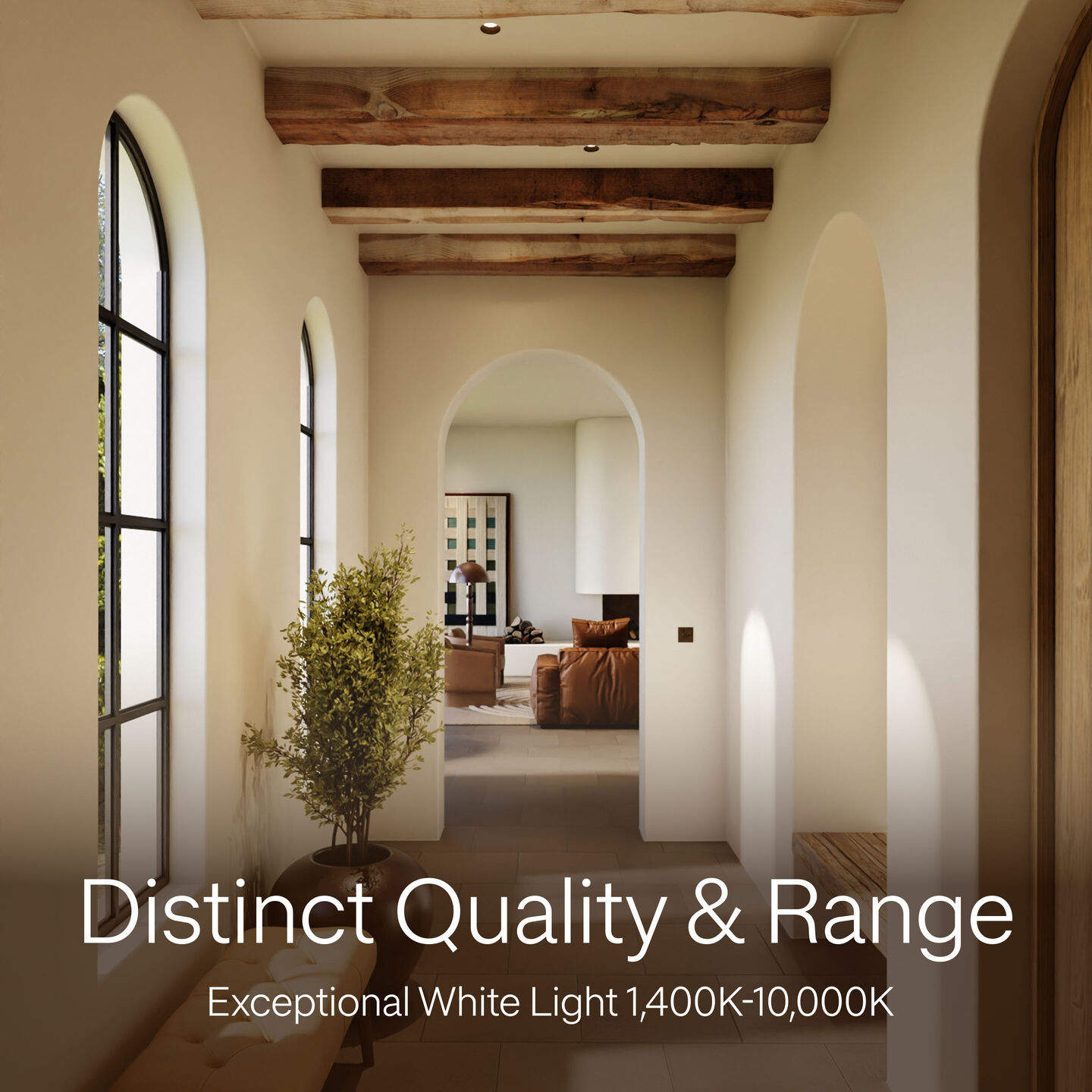

- Delivers white light across an unprecedented color temperature range of 1400K–10,000K, from warm golden-hued candlelight to the bright, cool light of an arctic sky
- Vibrancy control allows users to fine-tune the spectral composition of white light to manipulate how colors are rendered and perceived without changing color temperature or intensity
- Color Lock technology continuously monitors light output and automatically adjusts to maintain consistent color over the downlight's lifetime
- Tool-based aiming system offers control of tilt and rotation for precise positioning and easily adjusts to adapt to interior design changes
- Installs directly through finished ceilings via a standard 3.125-inch cutout (4-inch for flangeless mud-in trim), cutting demolition costs and construction delays
4-channel Natural Light / 1,400K–10,000K / 90+ CRI with Vibrancy / R9 >90
Native wireless control with Lutron Clear Connect Type X
- HomeWorks
Specifications & Documents
Performance Specifications
Light Engine
4-channel natural white light
CCT Range
1,400K–10,000K
Saturated Colors
16.7 million fully saturated and pastel colors
Color Rendering
90+ CRI from 2,700K–5,000K
R9 >90
Vibrancy
Rated Life
50,000 hours to L70 with Color Lock, which maintains color accuracy over product lifetime
Dimming Range
0.1%–100%
Delivered Lumens
Up to 1240 lm
Beam Angles
Spot (15°)
Narrow Flood (25°)
Flood (40°)
Wide Flood (60°)
Adjustable
Emitter tilt to 40°
Control Specifications
Control Protocol
Wireless RF/CCX (Lutron Clear Connect-Type X)
Dimensions Specifications
Aperture Size
2 in
Cut-out Dimensions
3.13 in (79.37 mm) Flanged
4.00 in (101.6 mm) Flangeless Mud-In
2.83 in (71.88 mm) Flangeless Millwork
Ceiling Thickness
0.5–2 in (12.7–50.8 mm)
Electrical Specifications
Power Consumption
18 W
Voltage
120 V~ 60 Hz
Current
800 mA, 0.2 ms duration
Mechanical Specifications
Installation Options

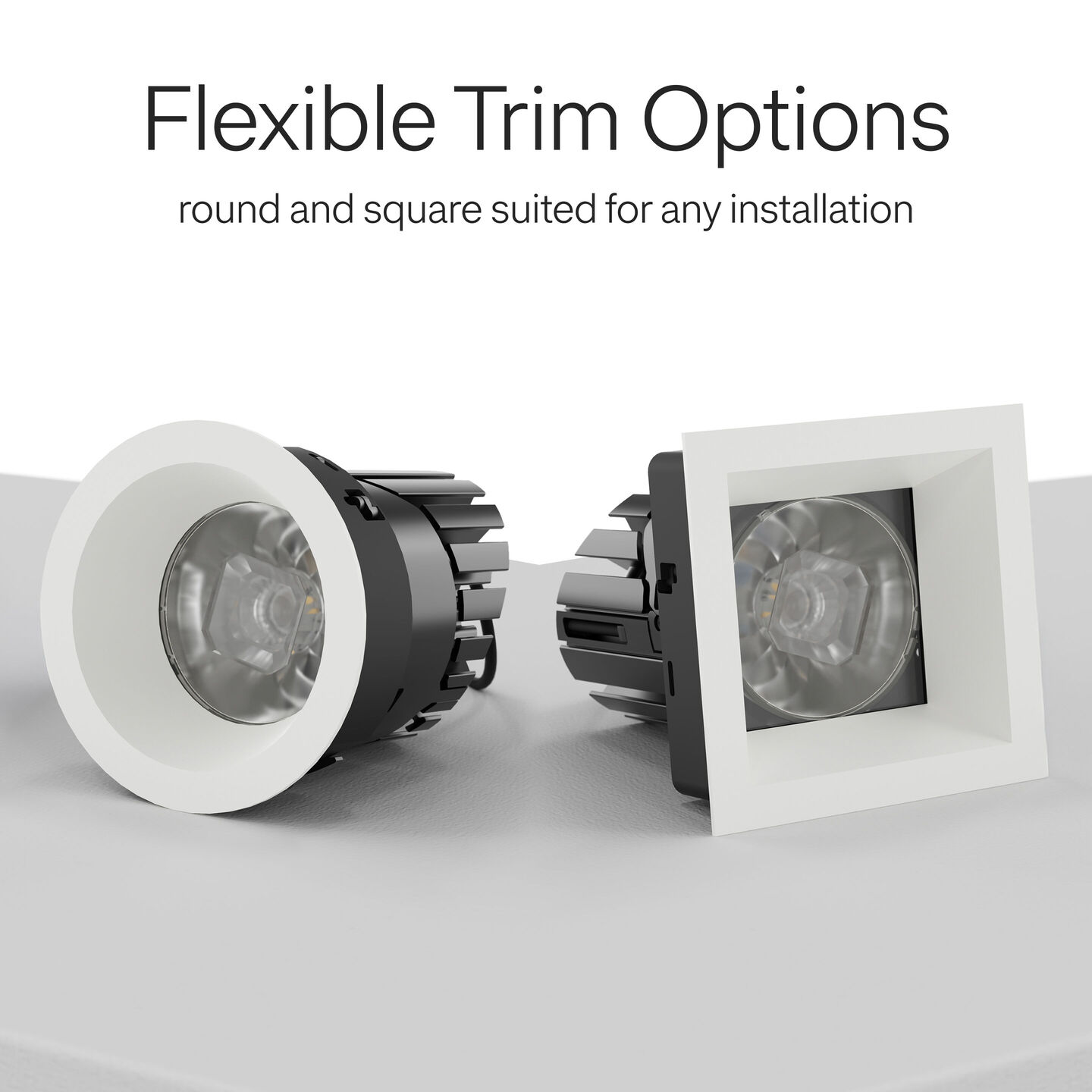

Flanged, Flangeless Mud-in, Flangeless Millwork
Certifications Specifications
Environmental Rating
UL Damp Location/UL Wet Location available with Trim Lens
Certifications
UL, cUL, 120 V~: FCC Class B, T24 (JA8); Non-IC Rated; UL2043 and CAN/ULC-S142 Rated
Warranty
5-year fixture, LED, and dimming warranty
