Lumaris Retrofit Downlight - 4" Aperture for 5"/6" Cans
Bring intelligent, wireless lighting to retrofit projects with this two-channel, tunable white light in a standard model for existing cans.
Configure
Product Details
Overview

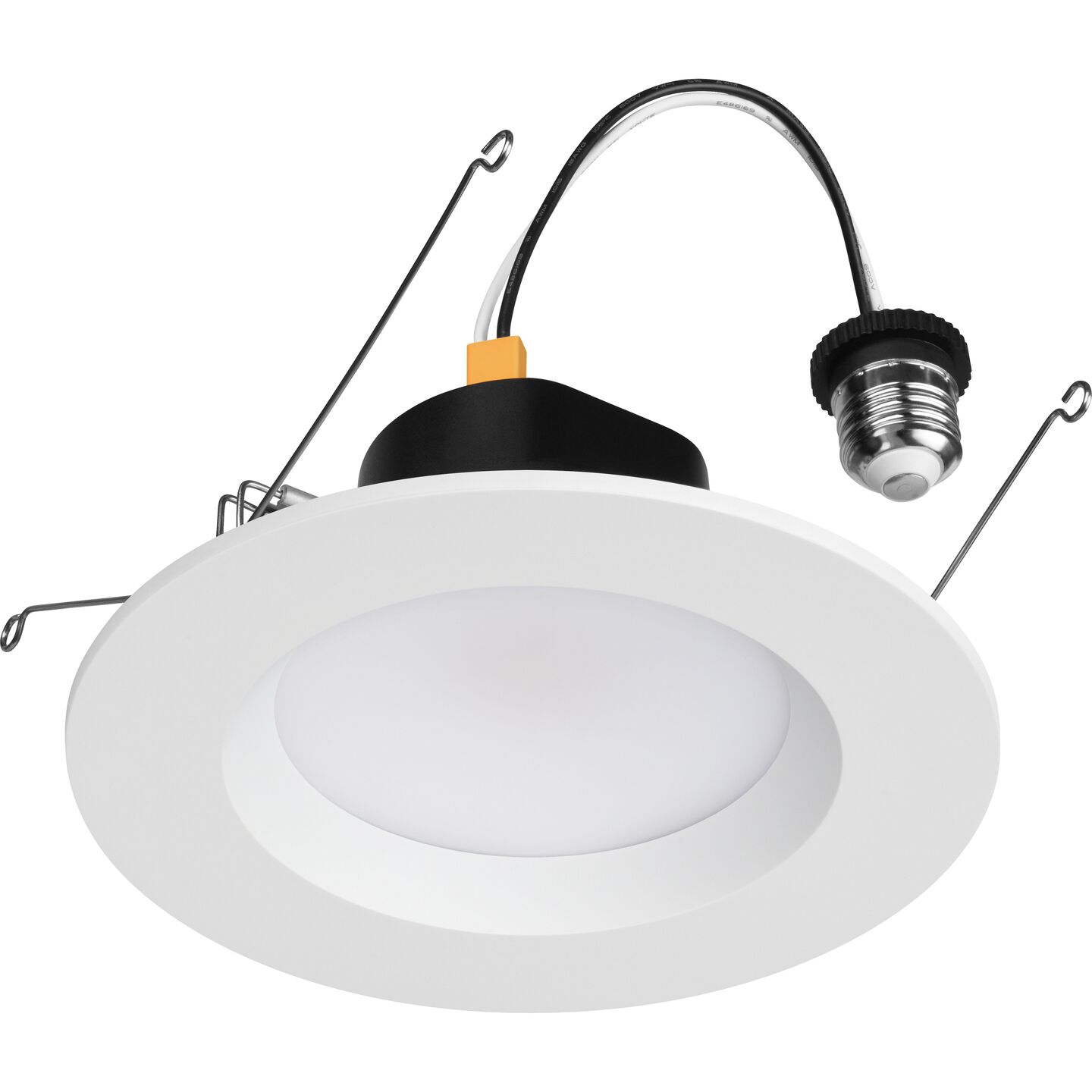

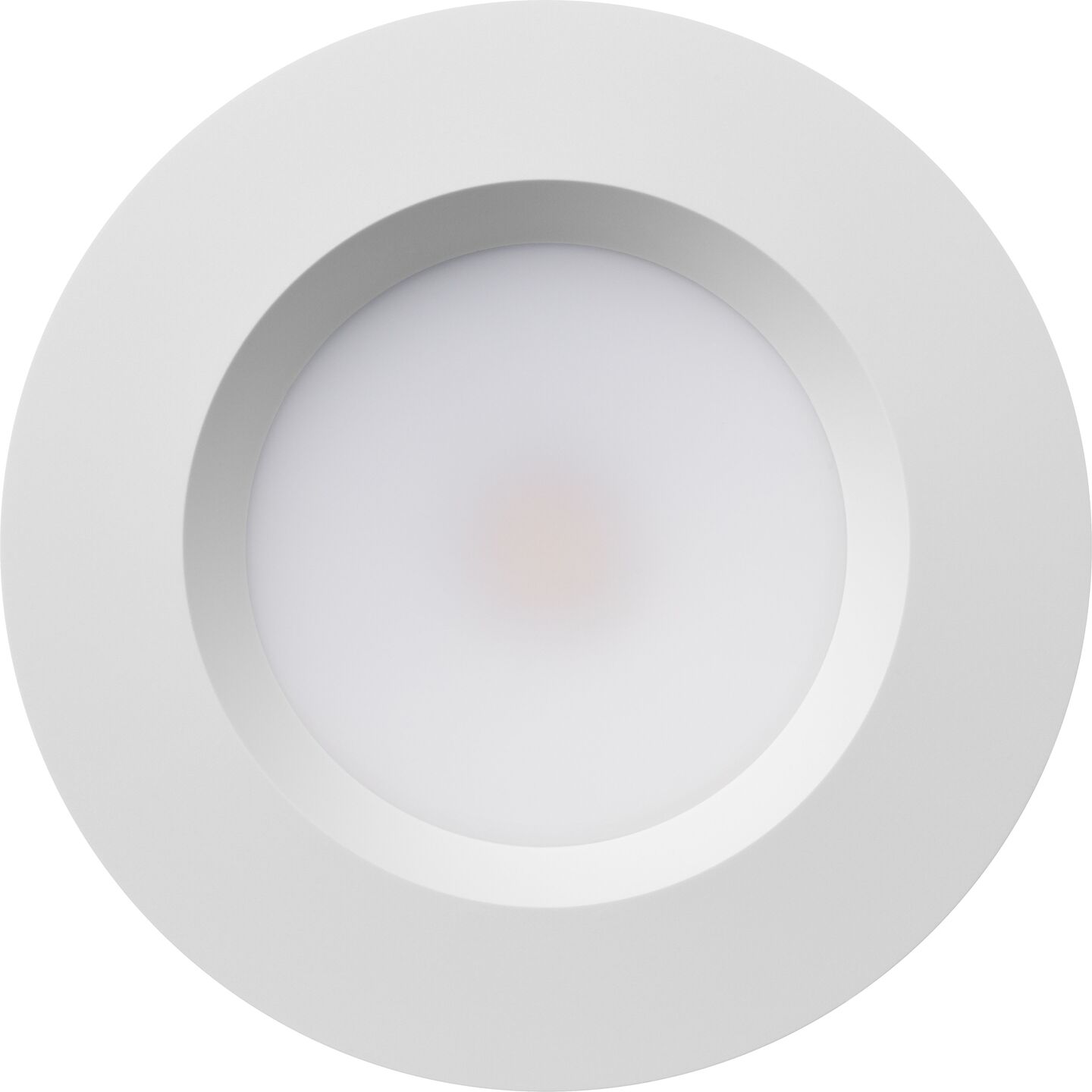

Lumaris retrofit downlights bring intelligent, wireless lighting to existing cans. These two-channel downlights provide tunable white and warm dim light that renders objects faithfully, with a CRI rating of 90+. Control color temperature and light intensity separately or tie them together in a warm dimming curve that mimics the familiar golden look of incandescent dimming. Available in three-inch and four-inch apertures, Lumaris retrofit downlights are built from the ground up to work with Lutron control systems.
- 2-channel light engine delivers high-quality, tunable white light
- Dial color temperature between 1,800K–4,000K, from incandescent glow to afternoon sun
- With a CRI of 90+, Lumaris renders colors richly across the white tunable range, giving electric light a more natural feel
- Installs into IC-rated and non-IC-rated housings, without the need to change existing ceiling infrastructure
- 4-inch aperture and ½-inch recess minimize glare and keep ceilings quiet and uncluttered
- Add Lumaris lighting to HomeWorks and RadioRA 3 systems for seamless wireless control
2-channel tunable white / 1,800K–4,000K / 90+ CRI
Native wireless control with Lutron Clear Connect Type X
- HomeWorks QSX
- RadioRA 3
Specifications & Documents
Performance Specifications
Light Engine
2-channel, tunable white
CCT Range
1,800K–4,000K
Color Rendering
CRI >90
Rated Life
50,000 hours to L70
Dimming Range
0.1%–100%
Delivered Lumens
800 lm
Beam Angles
N/A
Adjustable
No
Control Specifications
Control Protocol
Wireless RF/CCX (Lutron Clear Connect-Type X)
Dimensions Specifications
Aperture Size
4 in
Overall Dimensions
H 2.7 in (68.6 mm) x L 7.2 in (182.9 mm) x W 7.2 in (182.9 mm)
Minimum Recessed Housing Depth
3.0 in (76 mm)
Electrical Specifications
Power Consumption
8.5 W
Voltage
120 V ~ 60 Hz
Current
0.07 A
Mechanical Specifications
Installation Options
For pre-existent cans
Type
Suitable for Type IC and Non-IC luminaires (Housing Type)
LED, integrated (Lamp Type)
Certifications Specifications
Environmental Rating
IP20 indoor dry / damp location
Regulatory Approvals
cULus listed; FCC approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules; Industry Canada certified; California Title 24 as detailed in Reference Joint; Appendix JA8 for High Luminous Efficacy Light Sources.
Warranty
5 year fixture, LED and dimming warranty
