Rania A20 Lamp
Bring exceptional white light to interiors with a versatile A-series lamp.
Configure
Model # A20TW-LAMP
Product Details
Overview
Rania A20 lamps bring stunning, natural-quality white light to wall sconces, decorative pendants, and table lamps. Its three-channel light engine produces a broader spectrum of white light than typical LEDs (1,800K to 5,500K). High-fidelity 90+ CRI renders colors precisely with richness and depth. These lamps are designed to be controlled by Lutron wireless control systems HomeWorks, Athena, and myRoom XC.
- 3-channel light engine replicates the feeling of natural daylight more precisely than conventional 2-channel tunable white or warm-dim luminaires
- Delivers a broad range of natural white light, from incandescent glow to afternoon sun (1,800K–5,500K)
- 90+ CRI light renders colors, objects, and finishes vividly under both warm and cool light
- The lamp supports both omnidirectional 600-lumen and semi-directional 700-lumen beam angles

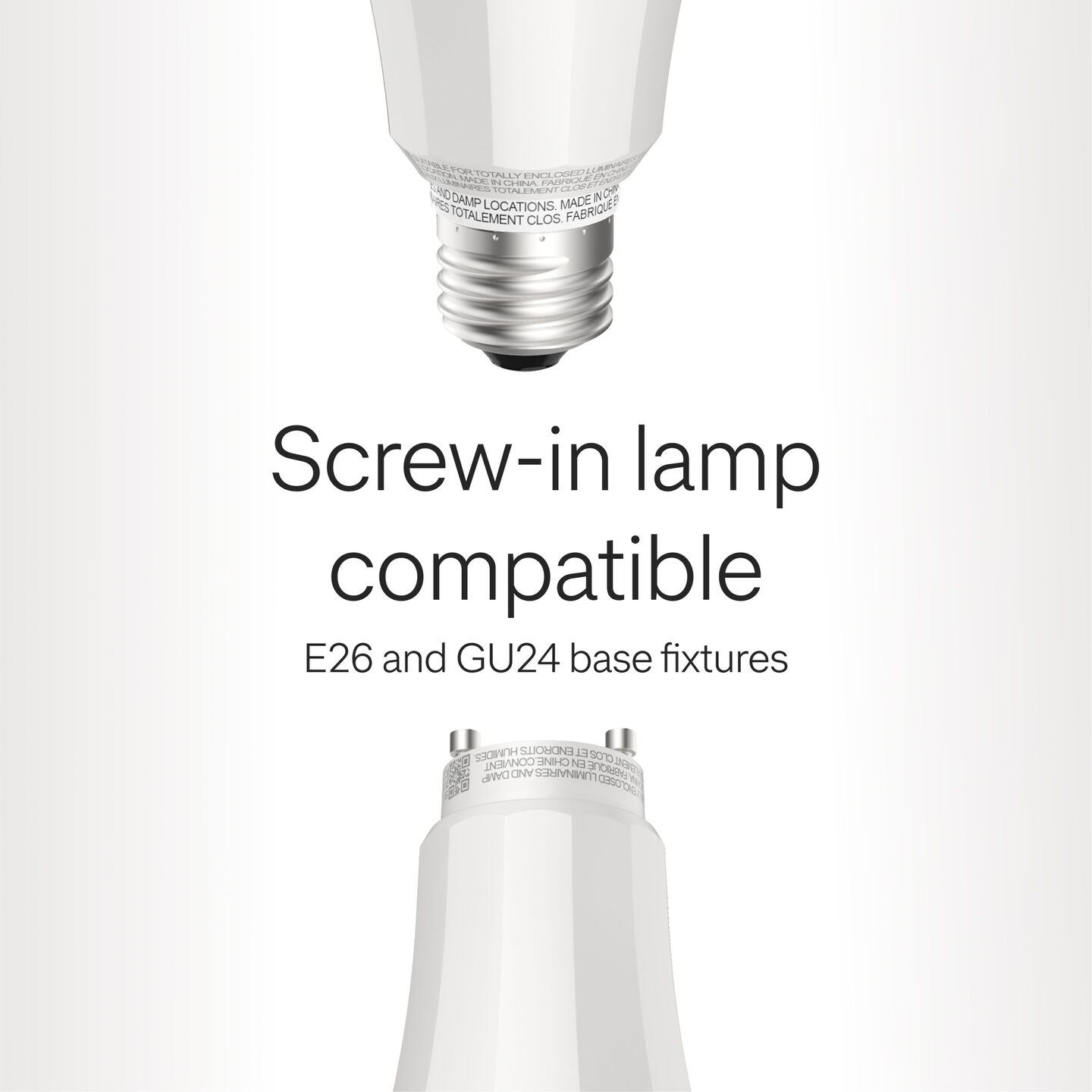

- Screw-in lamp compatible with standard E26 and GU24 base fixtures

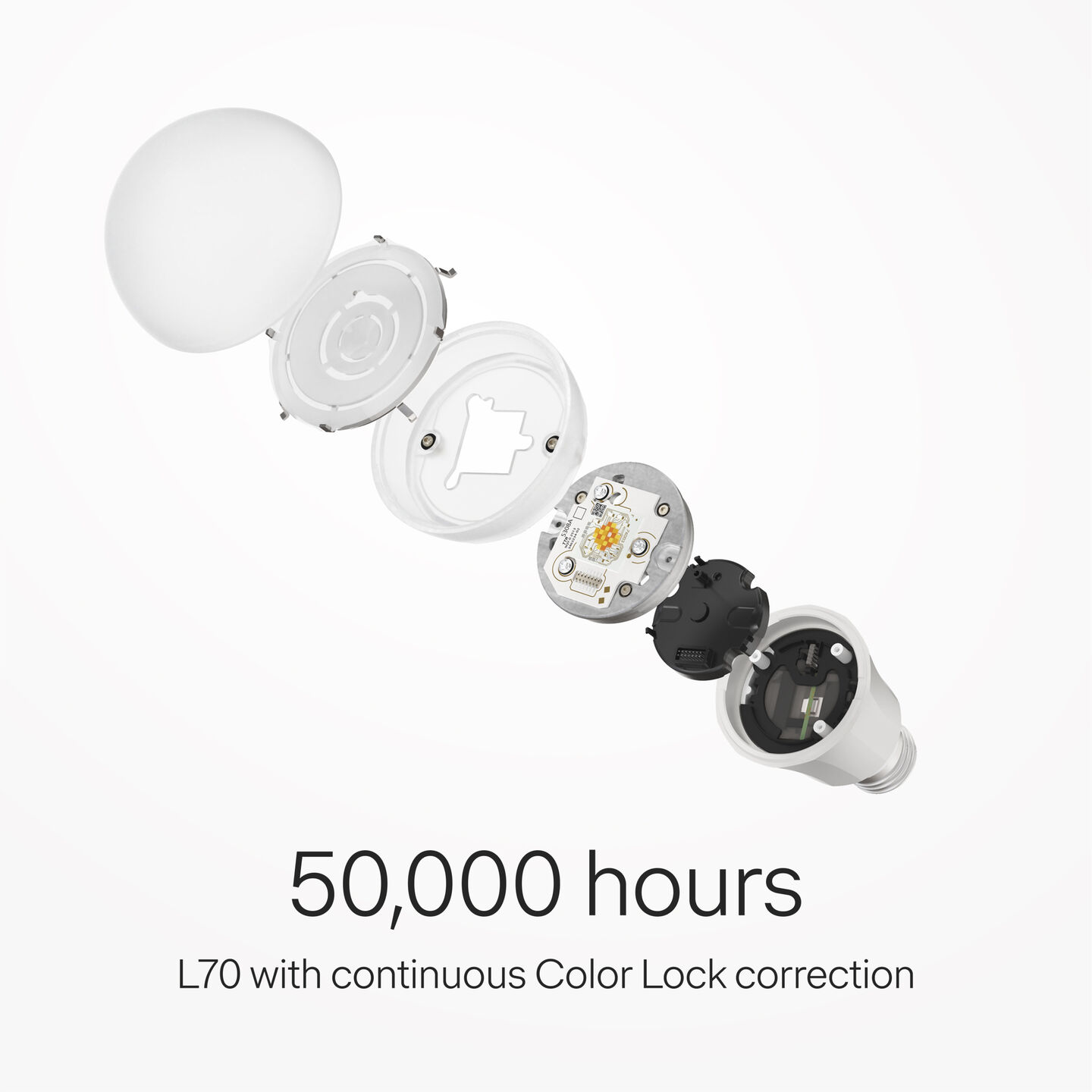

- A20 lamps have a rated lumen-maintenance life of 50,000 hours to L70
3-channel natural white light / 1,800K–5,500K / 90+ CRI from 2,700K–5,000K / R9 > 80
Native wireless control with Lutron Clear Connect Type X
- HomeWorks
- Athena
- myRoom XC
Specifications & Documents
Performance Specifications
Light Engine
3-channel natural white light
CCT Range
1,800K–5,500K
Saturated Colors
N/A
Color Rendering
>90
No Vibrancy
Rated Life
50,000 hours to L70 @ 25°C TA
Dimming Range
0.1%–100%
Delivered Lumens
600–700 lm
Beam Angles
Omni-Directional (OD)
Semi-Directional (SD)
Equivalent Traditional Lamp
40 W / 60 W Incandescent lamp
Control Specifications
Control Protocol
Wireless RF/CCX (Lutron Clear Connect-Type X)
Dimensions Specifications
Overall Dimensions

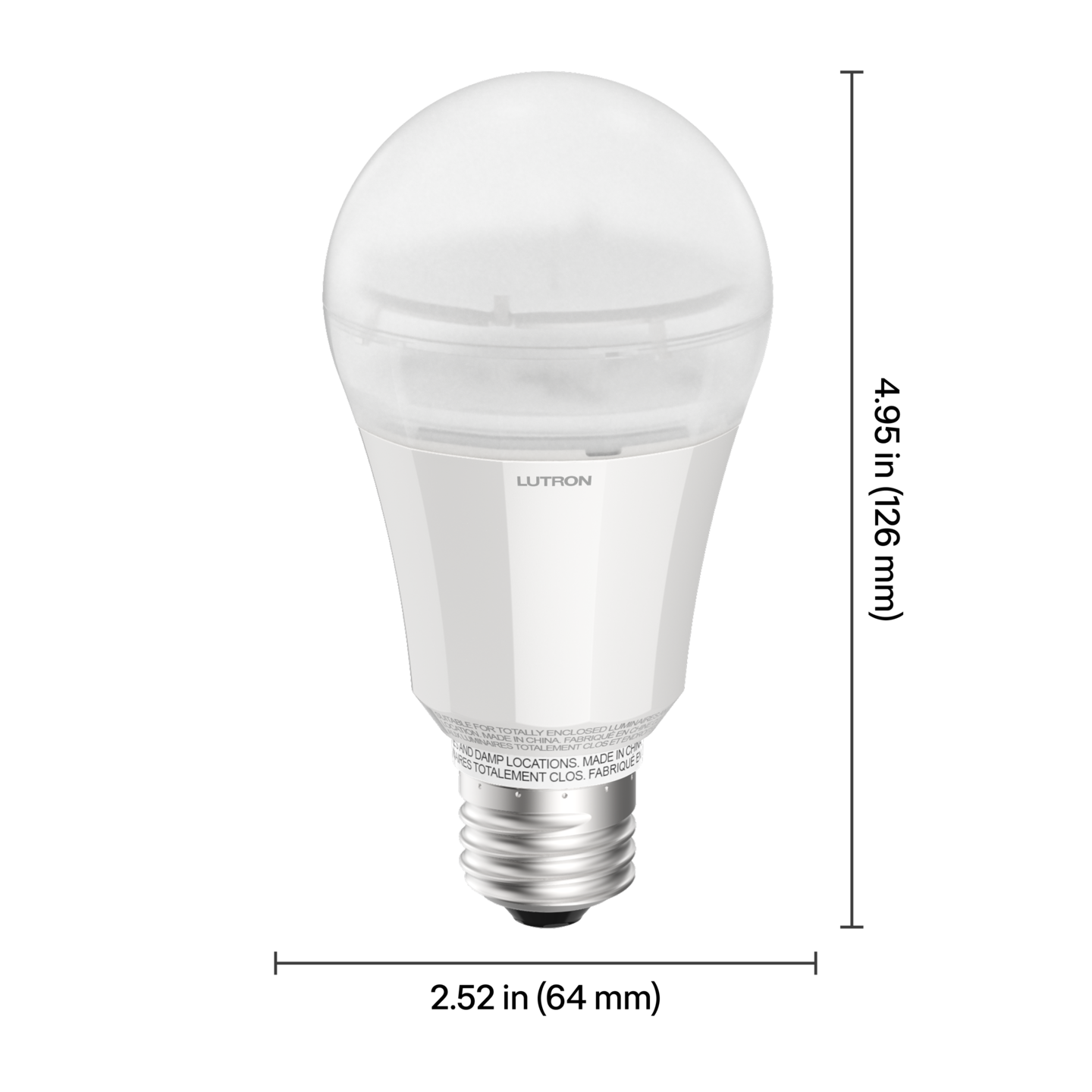

4.95 in (126 mm) H x 2.52 in (64 mm) diameter
Electrical Specifications
Power Consumption
A20 Omni-Directional - 8.5 W (600lm)
A20 Semi-Directional - 8.5 W (700lm)
Voltage
120V ~ 60Hz
Current
72mA Max
Mechanical Specifications
Installation Options
Screw-in lamp for standard fixtures
Type
A20 Lamp
Base Type
E26 and GU24
Certifications Specifications
Environmental Rating
UL Damp Location, IP20
Ambient Temperature: 32 to 122°F (0 to 50°C)
Extended Ambient Temperature: -13 to 32°F (-25 to 0°C)
Humidity: 0-95%, Non-condensing
Outdoor use available for residential enclosed/covered patio applications only
Regulatory Approvals
UL, cUL, RoHS, FCC Class B
Warranty
5 year fixture, LED, and dimming warranty
