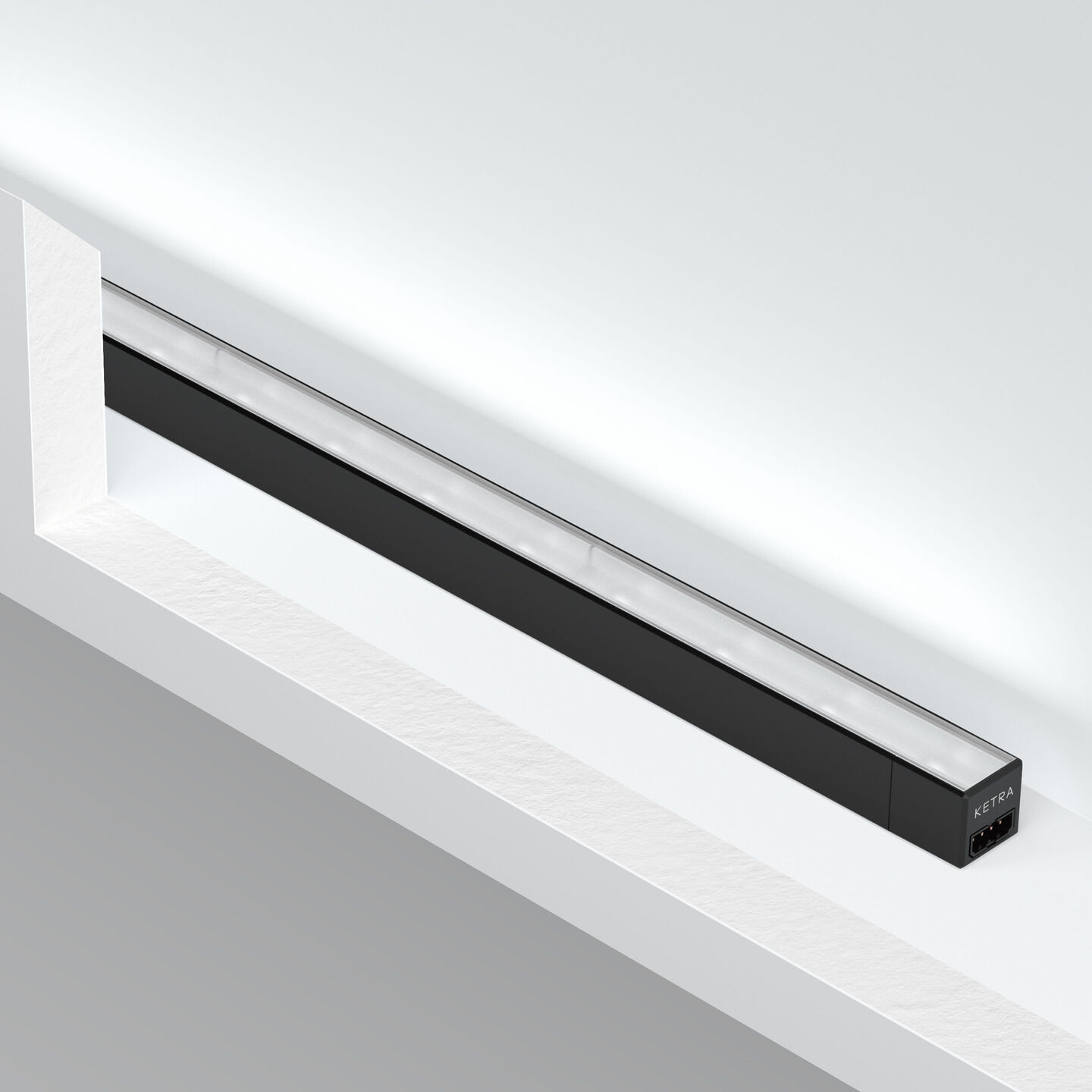

Ketra LS0 Lightbar Slim – High Output (350 lumens/ft)
Unmatched 4-channel Natural Light in a low-profile linear fixture with maximum 350 lumens per foot for high-impact accent and cove lighting.
Configure
Product Details
Overview

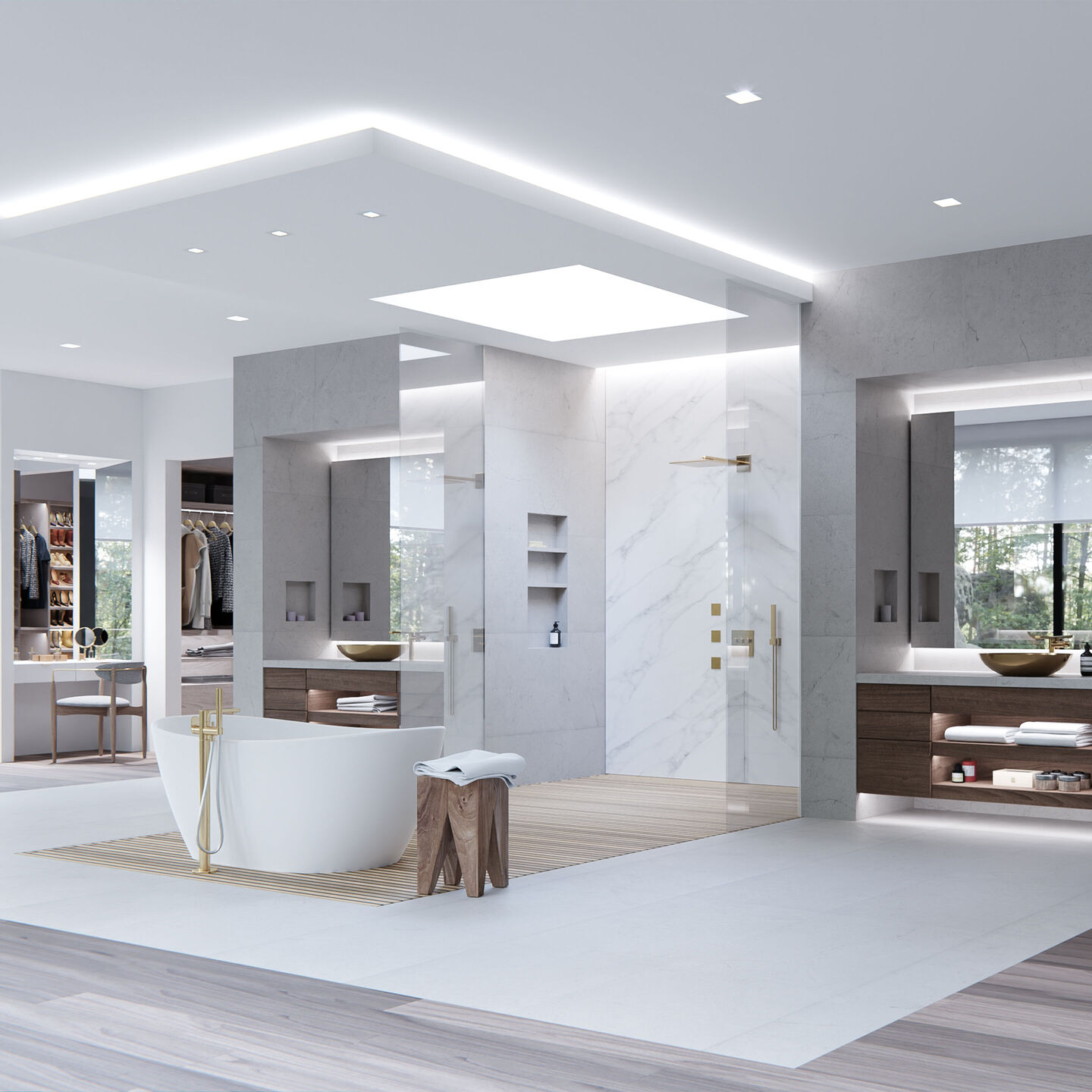

The slimmest Ketra fixture brings full-spectrum Natural Light to linear accent applications with an ultra-low 0.65-inch profile. This High Output configuration delivers maximum brightness at 350 lumens per foot, perfect for architectural coves and accent applications requiring substantial illumination. Supporting up to 15-foot runs from a single X96 controller with customizable lengths from 10 to 96 inches in 1-inch increments. With over 70 patents, Ketra's 4-channel light engine produces unprecedented Natural Light, featuring Vibrancy control that allows customization of how light renders color without changing the color temperature itself, and Color Lock technology that ensures consistent performance throughout the fixture's lifetime. Control the Ketra LS0 Lightbar Slim with the location-aware HomeWorks, Athena, and myRoom XC control systems to dissolve the boundary between the interior and exterior with sun-tracking precision that encompasses everything from the warmth of candlelight to the cool, pure brilliance of arctic skies.
- 4-channel engine produces full-spectrum natural white light and a range of 16.7 million colors, including pastels and saturated hues
- Delivers white light across an unprecedented color temperature range of 1,400K-10,000K, from warm golden-hued candlelight to the bright, cool light of an arctic sky
- Vibrancy control allows users to fine-tune the spectral composition of white light to manipulate how colors are rendered and perceived without changing color temperature or intensity
- Color Lock technology continuously monitors light output and automatically adjusts to maintain consistent color over the fixture's lifetime
- Maximum brightness configuration delivers 350 lumens per foot for impactful illumination
- Ultra-slim 0.65-inch profile enables installation in tight spaces while providing powerful accent lighting for coves and architectural details

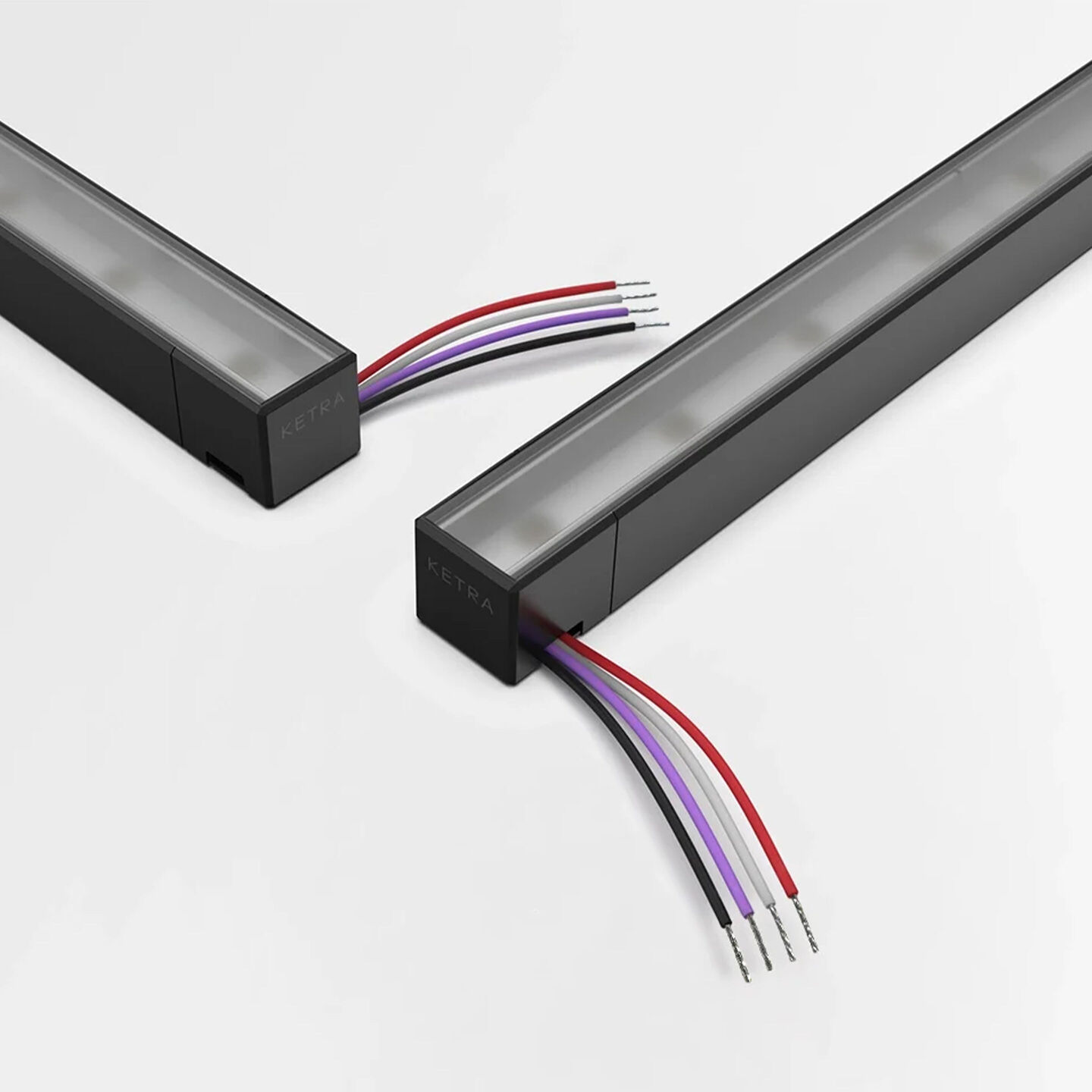

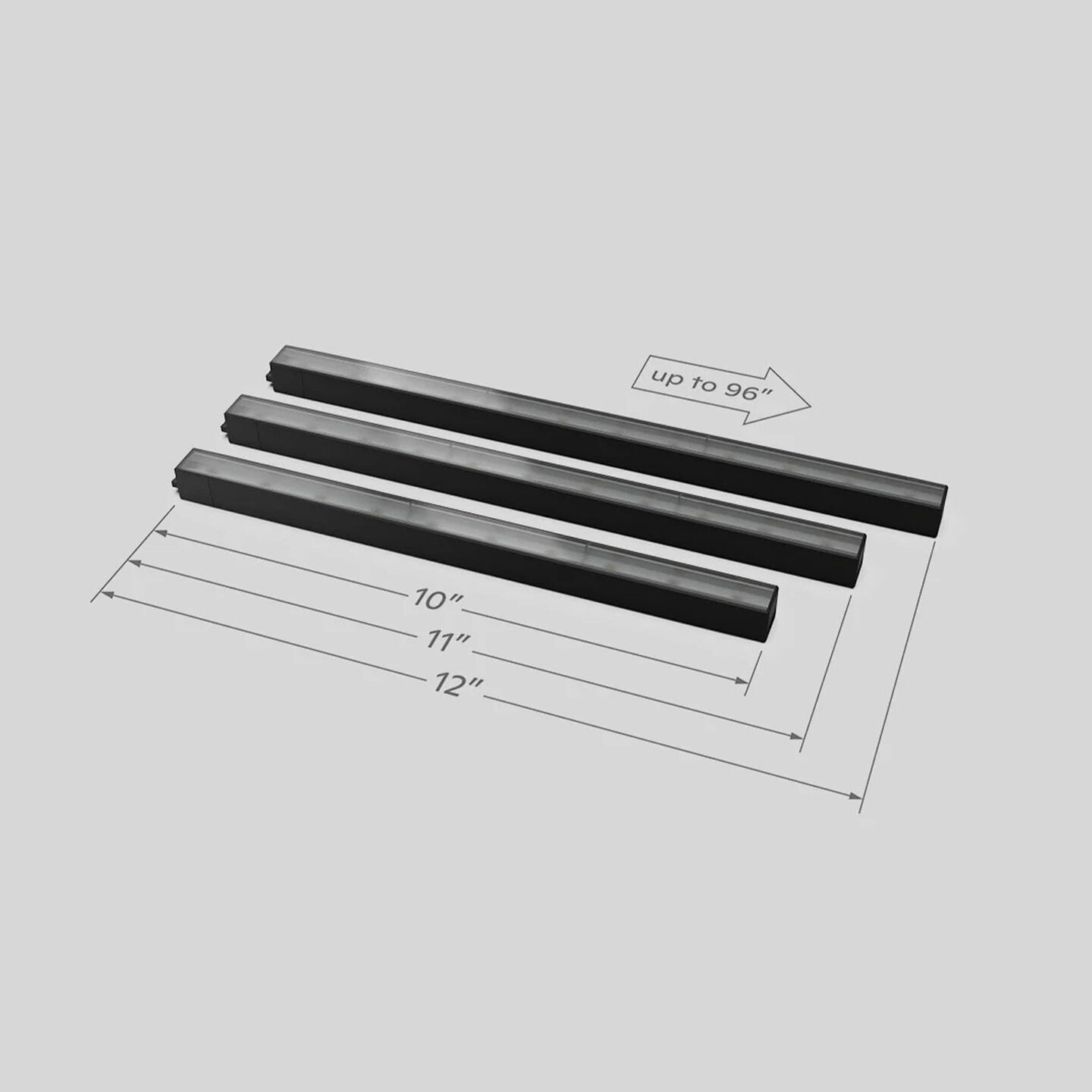

- Field-customizable lengths from 10 to 96 inches in 1-inch increments with straight and flexible connector options
4-channel natural light / 1,400K–10,000K / 90+ CRI with Vibrancy
Clear Connect–Type X wireless communication
- HomeWorks
- Athena
- myRoom XC
Specifications & Documents
Performance Specifications
Light Engine
4-channel full-spectrum natural white light
CCT Range
1,400K - 10,000K
Saturated Colors
16.7 million fully satured colors
Color Rendering
CRI 90+
R9 >90
Vibrancy
Rated Life
50,000 hours at L70 with continuous Color Lock auto-adjusting
Dimming Range
.1%-100%
Delivered Lumens
350 lm
Beam Angles
110° X 100°
Control Specifications
Control Protocol
Wireless RF/CCX (Lutron Clear Connect-Type X)
Dimensions Specifications
Aperture Size
N/A
H x L x W
Up to 15 foot runs
Customizable lengths from 10 to 96 inches in 1-in increments
0.65 in profile
Overall Dimensions
Up to 15 foot runs
Customizable lengths from 10 to 96 inches in 1-in increments
0.65 in profile
Electrical Specifications
Power Consumption
5.45 W/ft
Voltage
120 V~ / 277 V~ 50/60 Hz
Current
800 mA
Mechanical Specifications

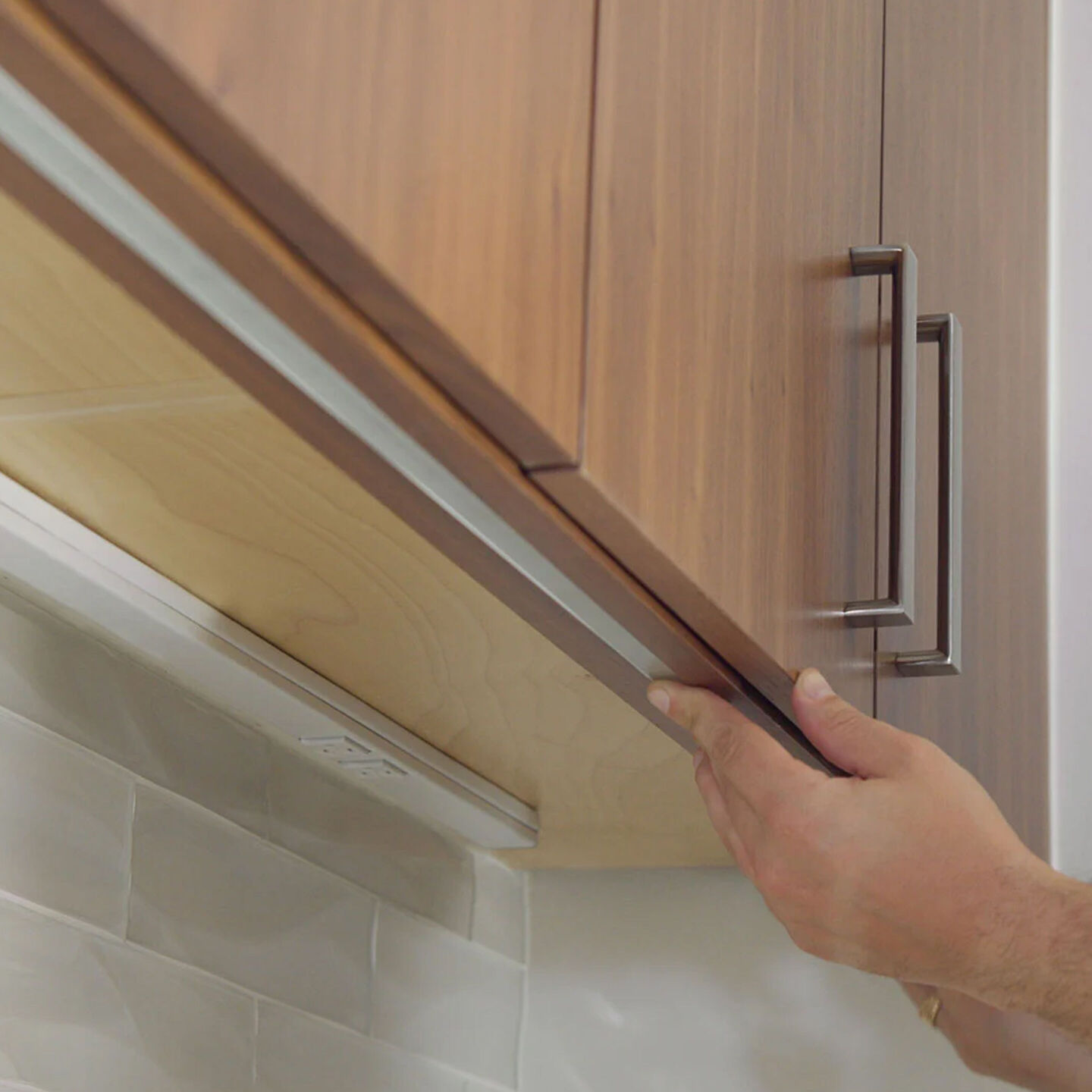

Installation Options
Mounted via screw-in bracket
Certifications Specifications
Certifications
UL, cUL, RoHS, FCC Class B, Title 24 [JA8], NOM
Warranty
5 year fixture, LED, and dimming warranty
