Triathlon Wire-Free Wood Blinds – Motorized Tilt, No Top Treatment

Pro-installed wood blinds for any window, with battery power and wood valance for coordinated design.


Width & Height Range: 20 in. to 72 in. wide x up to 80 in. high
Alignment: Intelligent Tilt Alignment
Operation: Motorized Tilt and Cordless Manual Lift
Power: Battery-powered (D-cell or AA)
Communication: Clear Connect RF wireless technology
Material: North American Basswood in a wide range of painted and stained finishes

Configure

Select Top Treatment
Select Power Options
Select Motorization Type
Select Slat Details

Product Details

Overview
Overview

Triathlon battery-powered wood blinds deliver professional-grade automated tilt control and cordless manual lift for windows from 20 to 72 inches wide and up to 80 inches high, combining the timeless appeal of genuine North American Basswood with innovative motorized technology. Morgan and Easton wood valance styles coordinate with blind finishes and conceal the headrail for a polished, integrated appearance. The Electronic Drive Unit housed in the headrail provides precision motorized tilt control with Intelligent Tilt Alignment technology to maintain consistent slat angles across multiple blinds, while the carefully designed bottom rail enables easy, precise cordless manual lift operation. Operating at 44 dBA measured 3 feet from the drive unit, these blinds move almost silently while D-cell or AA batteries provide industry-leading battery life with store-bought convenience and tool-free replacement. Battery Boost technology is available for blinds wider than 54 inches, adding four additional batteries for extended battery life in larger blinds and high-use applications. Hand-crafted 2-inch slats in a wide range of painted and stained finishes provide maximum window coverage with minimal light gaps of just 1/4 inch from slat ends to window frame, while low-profile mounting brackets minimize gaps at the top of the headrail. Multiple presets can be stored and recalled to position slats at predetermined tilt angles with a single button press, with tilt adjustment available at any blind height for versatile privacy and view control. Built-in Clear Connect RF technology enables native wireless control through Lutron systems and integrates with major smart home platforms, with no additional wiring required. Backed by an 8-year limited warranty, Triathlon Wood Blinds unlock Natural Light Optimization technology when paired with RadioRA 3, HomeWorks, and Athena systems, automatically adjusting slat angles throughout the day based on the sun's position to maximize comfortable daylight while managing glare and heat gain.

Highlights
  • Accommodates windows from 20 to 72 inches wide and up to 80 inches high with genuine North American Basswood construction
  • Motorized tilt control with Intelligent Tilt Alignment maintains consistent slat angles, while cordless manual lift enables precise positioning at any height
  • Ultra-quiet operation at 44 dBA measured 3 feet from drive unit creates peaceful environments
  • D-cell or AA batteries provide industry-leading battery life with tool-free replacement; Battery Boost available for blinds wider than 54 inches
  • Morgan and Easton wood valance styles coordinate with blind finishes and conceal the headrail for a polished, integrated appearance
  • Choose from a wide range of painted and stained finishes with minimal light gaps of 1/4 inch from slat ends to window frame
  • Compatible with Clear Connect RF wireless technology for integration with Caséta PRO, RadioRA 3, RA2 Select, HomeWorks, and major smart home platforms
Power Source

D-cell or AA batteries provide industry-leading battery life with tool-free replacement; Battery Boost available for blinds wider than 54 inches

Minimum Width & Maximum Width

Single blinds available in widths up to 72 in (1829 mm), and heights up to 80 in (2032 mm

Dimensions
Triathlon Wire-Free Wood Blinds – Motorized Tilt, No Top Treatment - Dimensions
Mounting & Installation Highlights
  • Simple installation for both inside mount and outside mount applications
  • Low-profile mounting brackets and EDU controls minimize light gap at the top of the headrail
Specifications & Documents
General Specifications

Overall Dimensions

System width up to 96 in (2438 mm) possible when configured as 2 blinds under one valance

Power Options

D-cell or AA batteries provide industry-leading battery life with tool-free replacement; Battery Boost available for blinds wider than 54 inches

Control Communication

Built-in wireless communication using Clear Connect Type A technology, providing control range of 30 ft (9 m)

Performance Specifications & Features

Sound Level

Blind components are designed for ultra-quiet operation (tilt operation will not exceed 44 dBA measured 3 ft [1 m] from EDU)

Precision Control

The EDU maintains consistent tilt speed throughout the battery life cycle by monitoring battery voltage and compensating for variations in the mechanical load

Design Specifications

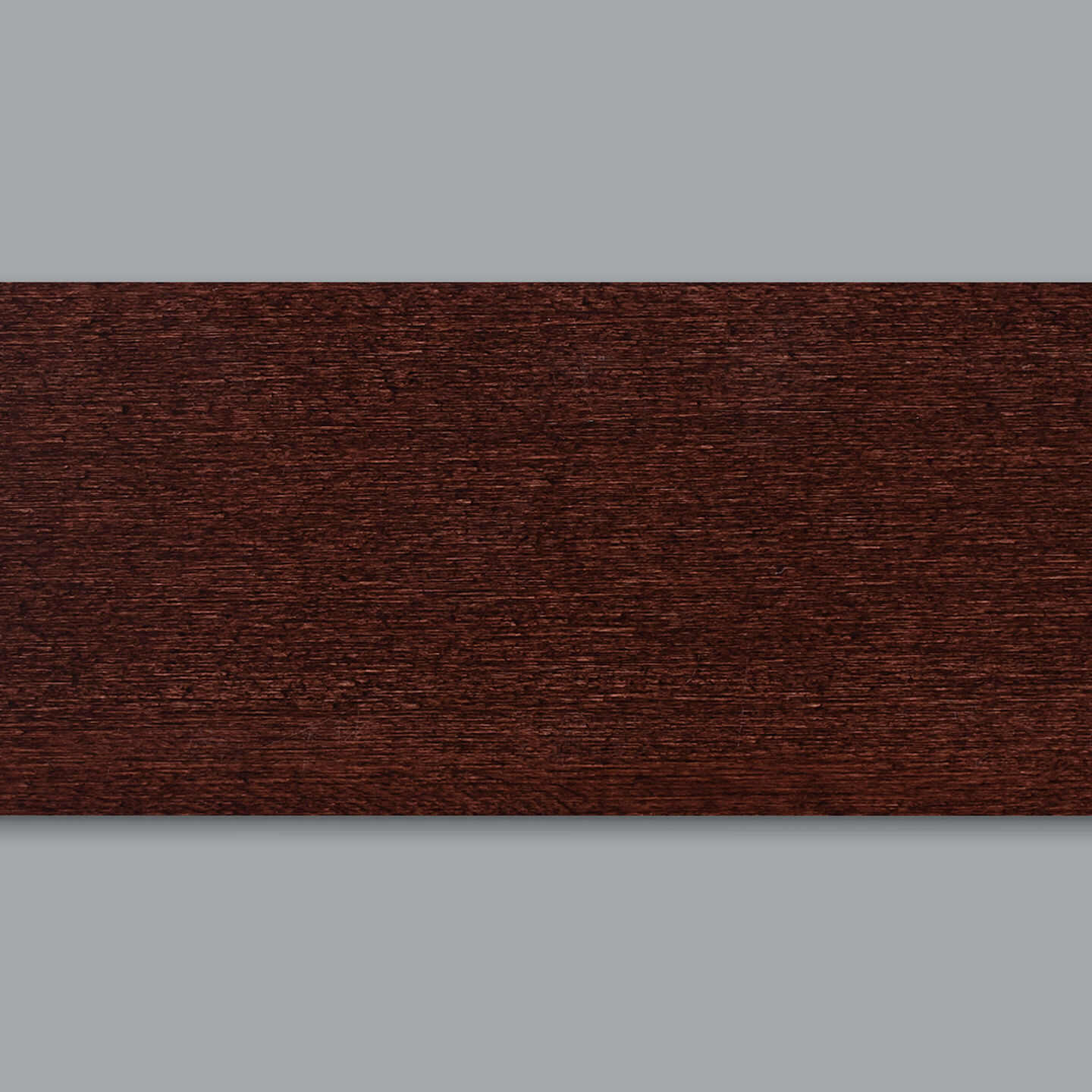

Slat / Vane Options

Slats are made of stable, high quality North American basswood, available in a wide variety of painted and stained finishes

Mounting Options

Simple installation for both inside mount and outside mount applications

Certifications Specifications

Environmental Rating

Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.

Regulatory Approvals

CE UL FCC

Warranty

8 years with registration
