Palladiom Roller Shades - 35V Wired

Sleek, refined, 35V low-voltage wired roller shades with exposed, hand-finished aluminum and brass brackets.


Width & Height Range: 20"-144" wide x 24"-168" high—varies by fabric
Intelligent Hembar Alignment: Maintains alignment within 1/8" across all shades
Sound Level: Operates at less than 35 dBA at 3ft
Power: 35V low-voltage wiring
Communication: QS wired technology and QS wireless technology
Fabric Options: Hundreds of designer fabrics available

Configure

Select Top Treatment
Select Power Options

Product Details

Overview
Overview

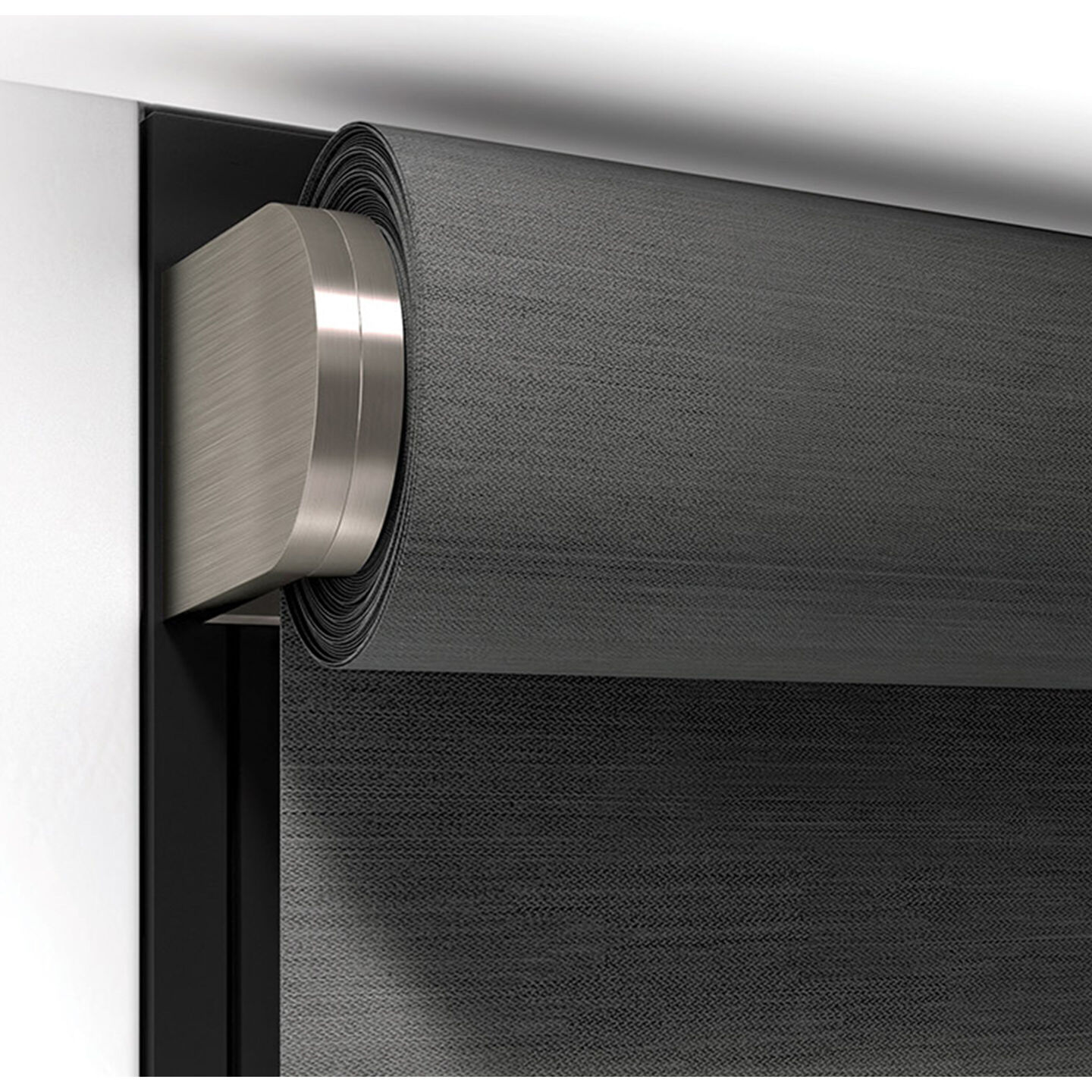

Palladiom roller shades deliver refined motorization for windows from 20 to 144 inches wide and 24 to 168 inches high, with brackets milled and hand-finished in solid aluminum and brass that transform functional hardware into architectural details. The innovative bracket design conceals all electronics behind a rotating ring, showcasing each bracket's hand-finished surface. The hand-finished Palladiom Bottom Rail is designed to nearly disappear, with a subtle curve that nests seamlessly behind the shade roll when raised. These shades operate at less than 35 dBA at 3 feet and incorporate Intelligent Hembar Alignment technology that monitors shade speed hundreds of times per second to synchronize shade positioning within 1/8 inch during motion and at all resting positions. Three bracket styles—end, center, and jamb—enable wall or ceiling mounting configurations to highlight views while occupying no more than 3.25 inches of vertical space. Backed by an 8-year limited warranty and compatible with most Lutron control systems, Palladiom shades unlock Natural Light Optimization technology when paired with HomeWorks and RadioRa 3 systems and Athena Shade Automation Software for Athena system, tracking the sun's movement throughout the day to automatically adjust shade positions and manage glare and heat gain while preserving views and daylight.

Highlights
  • Accommodates windows from 20 to 144 inches wide and 24 to 168 inches high for architectural scale, with precise sizing dependent on fabric choice and mounting requirements
  • Patented Intelligent Hembar Alignment technology monitors shade speed hundreds of times per second to maintain alignment within 1/8 inch across all shades
  • Ultra-quiet operation below 35 dBA measured 3 feet away for whisper-quiet performance
  • 35V low-voltage wiring integrates seamlessly with QS wired and QS wireless control systems
  • Compatible with HomeWorks QSX, myRoom XC, Athena, and Quantum systems for comprehensive home automation
  • Choose from hundreds of fabric options with varied colors, textures, and openness factors for complete customization
  • Seven architectural metal finishes including Pure White, Black Anodized, Clear Anodized, Satin Nickel, Brass, Satin Graphite, and Aged Bronze
Power Source

Low-voltage Class 2, 35 V power supply required (Individual plug-in power supplies, junction box power supplies, or centralized power panel options available)

Minimum Width & Maximum Width

Accommodates windows from 20 to 144 inches wide and 24 to 168 inches high for architectural scale, with precise sizing dependent on fabric choice and mounting requirements

Dimensions
Palladiom Roller Shades - 35V Wired - Dimensions
Mounting & Installation Highlights
  • The shade system must be mounted to blocking or other suitable structural material.
  • Depending on window dimensions, brackets can be mounted inside or outside the window frame.
  • Shades can be regular or reverse roll.
Specifications & Documents
General Specifications

Overall Dimensions

20"-144" wide x 24"-168" high—varies by fabric

Power Options

35V Low Voltage

Control Communication

Lutron QS Wired Lutron QS Wireless (ClearConnect Type A RF technology): 30ft wireless control range

Performance Specifications & Features

Sound Level

Operates at less than 35 dBA at 3ft

Speed

Bottom bar speed: 3.6 in/sec

Precision Control

Intelligent Hembar Alignment (IHA): Shades remain within 1⁄8 in (3 mm) alignment when in motion or stopped

Coupling

No

Natural Light Optimization

Yes, available with HomeWorks and RadioRA 3 and Athena Shade Automation Software for Athena.

Design Specifications

Fabric Options

Sheer, Translucent, Blackout

Fabric Collections

The Classico Collection, The Gallery Collection, The Atelier Collection, The Commercial Collection

Mounting Options

Wall, Ceiling, or Jamb

Hembar Options

Palladiom Bottom Bar, Designer Bottom Bar, Sealed Bottom Bar, Half-wrap Architectural Bottom Bar

Finishes

Pure White, Clear Anodized, Black Anodized, Satin Nickel, Brass, Satin Graphite, Aged Bronze

Certifications Specifications

Environmental Rating

Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.

Fabric Standards / Certification Options Available

PVC Free, Fire Rated, Anti-microbial Properties, GREENGUARD Certified, RoHS Compliant, Cradle to Cradle Certified, Lead Free

Environmental Standards / Certifications

Lutron shading solutions and controls can contribute to achieving certifications such as LEED, WELL, and BREEAM.

Regulatory Approvals

cULus listed (E135084) FCC (USA) IC (Canada) CFT (Mexico) CE Mark (European Union) FCC Certified (Hong Kong) UKCA (United Kingdom) NCC (Taiwan) TRA (United Arab Emirates)

Warranty

Eight Year Limited Warranty

General Documents

Installation & Tools

View the Spec Sheet

Find Installation Guide

Explore Residential Shades Brochure

Read the Warranty
