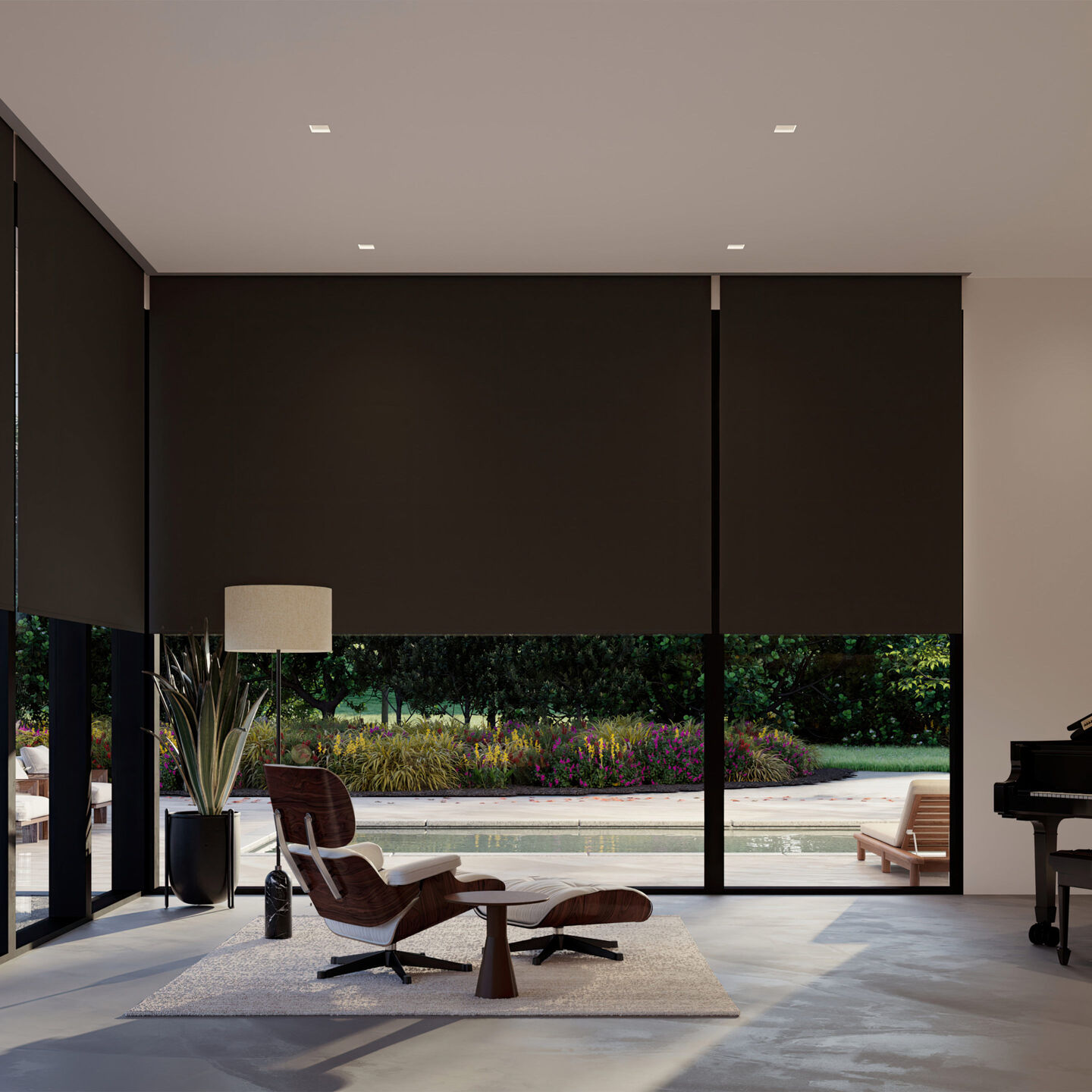

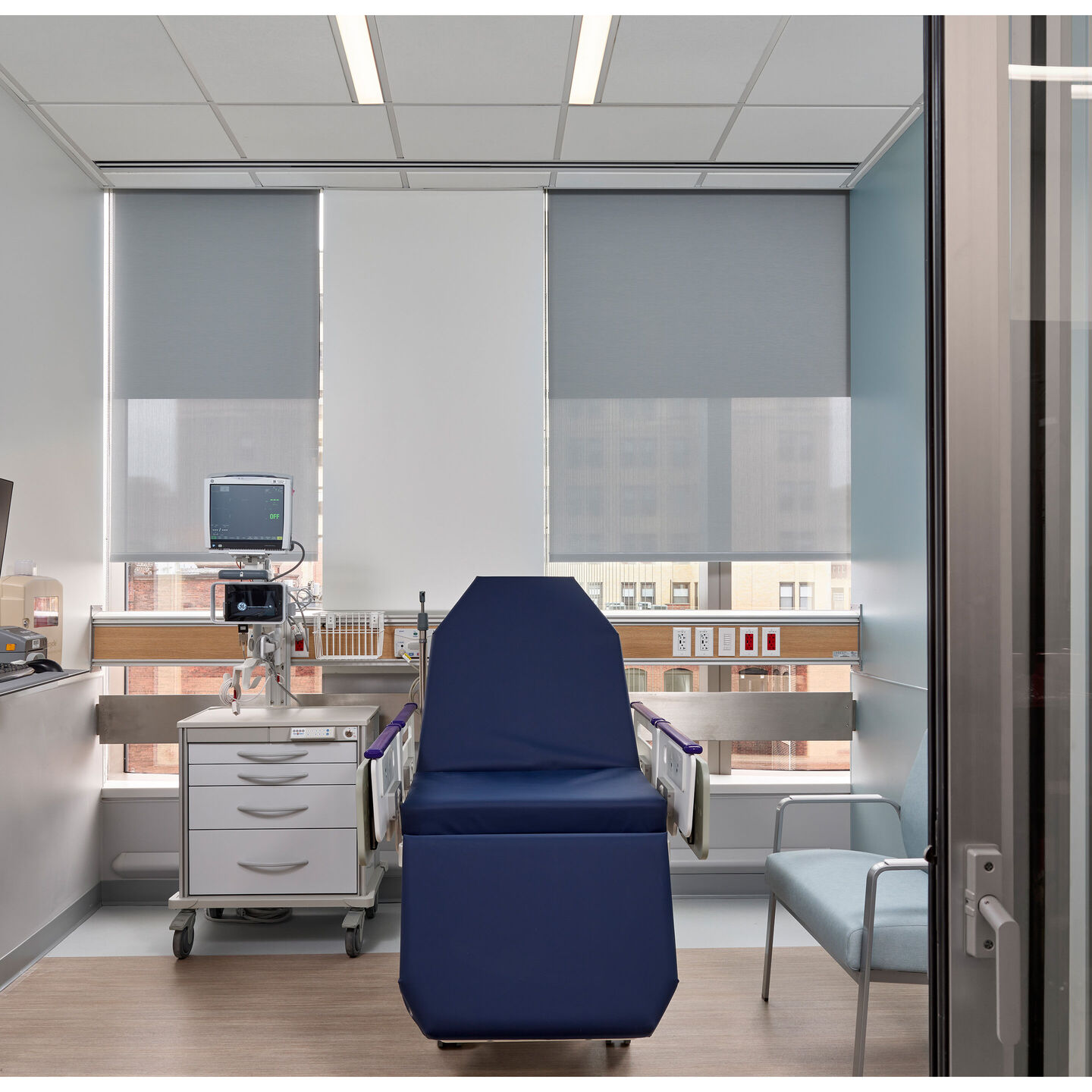

Sivoia Roller 100 Shades – Dual Pocket, 7" x 11"

Premium low-voltage window treatment for medium-to-large shades, configured with a dual 7"x11" recessed pocket.


Width (Single Panel): 24"-176"—varies by fabric and height
Intelligent Hembar Alignment: Maintains alignment within 1/8" across all shades
Sound Level: Operates at less than 38 dBA at 3ft
Power: 35V low-voltage wiring
Communication: QS wired and wireless
Fabric Options: 500+ designer fabrics available

Configure

Select Top Treatment
Select Top Treatment Size
Select Power Options
Select Drive Type

Product Details

Overview
Overview

Sivoia Roller 100 dual pocket systems provide sophisticated light management through two independent shades within a single 7"x11" architectural opening that completely conceals both roller mechanisms when raised, perfect for medium-to-large windows up to 176 inches wide with a typical maximum combined shade size of 100 square feet per motor and coupling capability for multiple dual roller shades. This dual configuration pairs sheer fabrics for daytime privacy with blackout materials for room darkening while the robust Roller 100 drives draw from over 600 material options to create custom light-filtering combinations. For configurations where wider spans could cause fabric deflection, Width Integrated Deflection Reduction (WIDR) technology uses carbon fiber tubes to prevent sagging and rippling by maintaining consistent fabric tension, with the Lutron Quoting and Ordering Tool precisely calculating when WIDR is required. Both shades operate at less than 38 dBA at 3 feet while Intelligent Hembar Alignment technology monitors shade speed hundreds of times per second to guarantee alignment within 1/8 inch, whether operating together or separately. Backed by an 8-year limited warranty and compatible with most Lutron control systems, Sivoia shades unlock Natural Light Optimization technology when paired with HomeWorks and RadioRa 3 systems and Athena Shade Automation Software for Athena system, tracking the sun's movement throughout the day to automatically adjust shade positions and manage glare and heat gain while preserving views and daylight. © Jeffrey Totaro, 2024

Highlights
  • Supports typical maximum shade size of 100 square feet per motor for windows from 24 to 176 inches wide with coupling capability for multiple dual roller shades, with precise sizing dependent on fabric and height specifications
  • Patented Intelligent Hembar Alignment technology monitors shade speed hundreds of times per second to maintain alignment within 1/8 inch across all shades
  • Quiet operation below 38 dBA measured 3 feet away for both shades simultaneously
  • 35V low-voltage wiring required for each shade individually
  • Compatible with QS wired and wireless protocols for integration with RadioRA 3, HomeWorks, myRoom XC, Quantum, and Athena systems
  • Layer sheer and blackout fabrics from 600+ options to create complete daylight control
  • The Lutron Quoting and Ordering Tool automatically specifies carbon fiber WIDR tubes when shade width and fabric combinations require deflection prevention
Power Source

Low-voltage Class 2, 35 V power supply required (Individual plug-in power supplies, junction box power supplies, or centralized power panel options available)

Minimum Width & Maximum Width

Supports typical maximum shade size of 100 square feet per motor for windows from 24 to 176 inches wide with coupling capability for multiple dual roller shades, with precise sizing dependent on fabric and height specifications

Dimensions
Sivoia Roller 100 Shades – Dual Pocket, 7" x 11" - Dimensions
Mounting & Installation Highlights
  • The shade system must be mounted to blocking or other suitable structural material.
  • Depending on window dimensions, brackets can be mounted in a pocket, inside the window frame, or outside the window frame.
  • EDU can be specified on the left or right side of the shade.
  • Shade can be regular or reverse roll.
Specifications & Documents
General Specifications

Overall Dimensions

Width (Single Panel): 24"-176"—varies by fabric and height

Power Options

35V Low Voltage

Control Communication

Lutron QS Wired
Lutron QS Wireless (ClearConnect Type A RF technology): 30ft wireless control range

Top treatment

Recessed Metal Pocket 7" w x 11" h

Performance Specifications & Features

Sound Level

Operates at less than 38 dBA at 3ft

Speed

Bottom bar speed: 3.6 in/sec

Precision Control

Intelligent Hembar Alignment (IHA): Shades remain within 1⁄8 in (3 mm) alignment when in motion or stopped

Coupling

Yes, up to 6 panels

Natural Light Optimization

Yes, available with HomeWorks and RadioRA 3 and Athena Shade Automation Software for Athena.

Design Specifications

Fabric Options

Sheer, Translucent, Blackout

Fabric Collections

The Classico Collection, The Gallery Collection, The Atelier Collection, The Commercial Collection

Mounting Options

Wall, Ceiling, or Jamb

Hembar Options

Designer Bottom Bar, Sealed Bottom Bar, Half-wrap Architectural Bottom Bar

Finishes

Pocket Metal Finishes: White, Black, Bronze, Silver, custom color

Certifications Specifications

Environmental Rating

Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.

Fabric Standards / Certification Options Available

PVC Free, Fire Rated, Anti-microbial Properties, GREENGUARD Certified, RoHS Compliant, Cradle to Cradle Certified, Lead Free

Environmental Standards / Certifications

Lutron shading solutions and controls can contribute to achieving certifications such as LEED, WELL, and BREEAM.

Regulatory Approvals

cULus listed (E135084)
FCC (USA)
IC (Canada)
CFT (Mexico)
CE Mark (European Union)
FCC Certified (Hong Kong)
UKCA (United Kingdom)
NCC (Taiwan)
TRA (United Arab Emirates)

Warranty

Eight Year Limited Warranty
