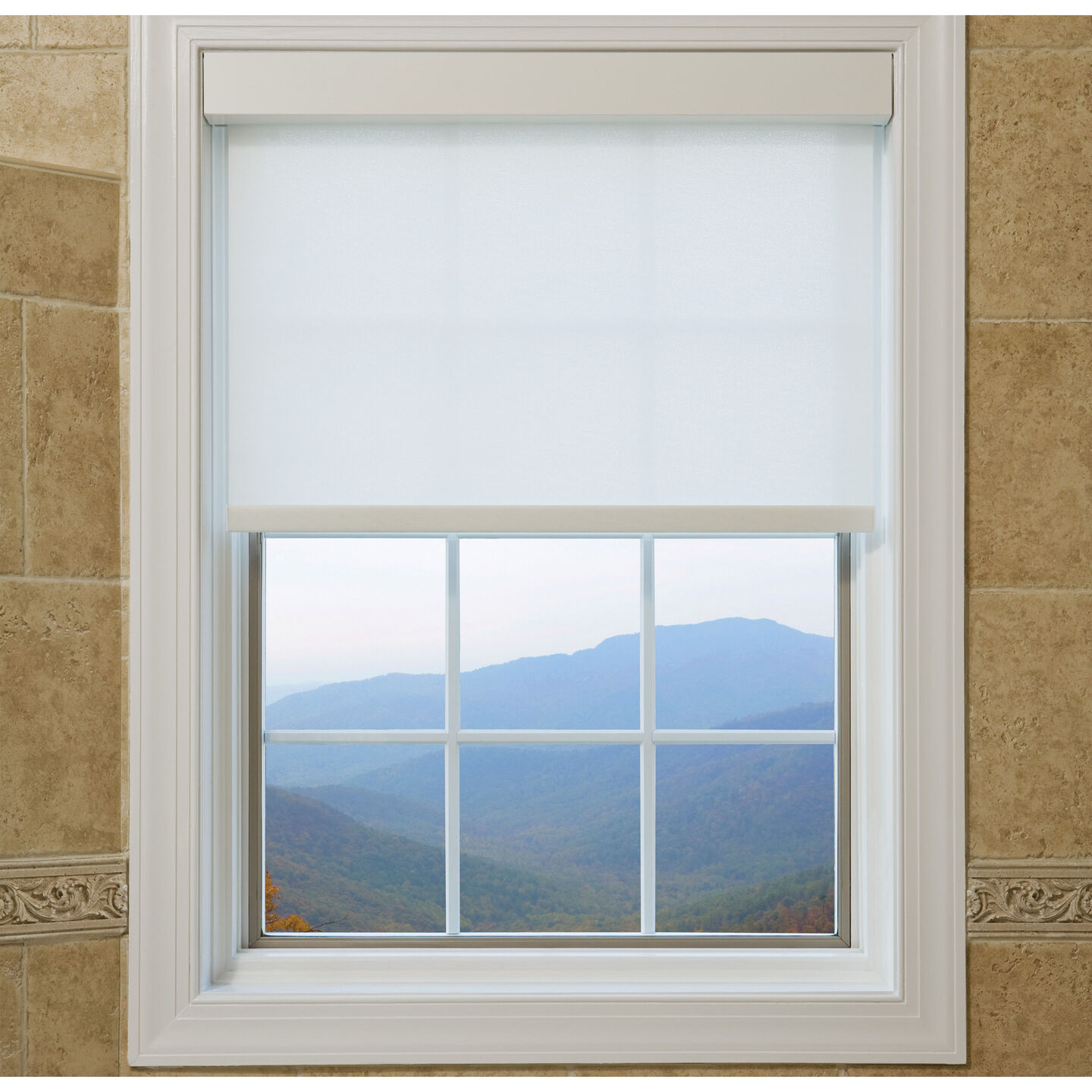

Sivoia Roller 20 Shades – Metal Fascia, 2.75"
Premium low-voltage roller shade for the most space-constrained applications, configured with a 2.75" metal fascia.
Configure
Product Details
Overview
Sivoia Roller 20 shades with 2.75-inch metal fascia deliver ultra-compact motorization for applications where installation space is particularly limited, accommodating smaller windows with a typical maximum shade size of 20 square feet where standard drives cannot fit. The fascia conceals the roller drive behind a minimal profile that maintains clean sight lines while accommodating hundreds of designer fabrics—from light-filtering sheers to complete blackout materials. Operating at less than 44 dBA at 3 feet, these shades incorporate Intelligent Hembar Alignment technology that monitors shade speed hundreds of times per second to synchronize shade positioning within 1/8 inch during motion and at all resting positions. Universal brackets enable ceiling, wall, or jamb mounting configurations to adapt to various architectural requirements. Backed by an 8-year limited warranty and compatible with most Lutron control systems, Sivoia shades unlock Natural Light Optimization technology when paired with HomeWorks and RadioRa 3 systems and Athena Shade Automation Software for Athena system, tracking the sun's movement throughout the day to automatically adjust shade positions and manage glare and heat gain while preserving views and daylight.
- Supports typical maximum shade size of 20 square feet for windows from 18.5 to 79.5 inches wide, with precise sizing dependent on fabric and height specifications
- Patented Intelligent Hembar Alignment technology monitors shade speed hundreds of times per second to maintain alignment within 1/8 inch across all shades
- Quiet operation below 44 dBA measured 3 feet away for spaces where silence matters
- 35V low-voltage wiring simplifies installation
- Compatible with QS wired and wireless protocols for integration with RadioRA 3, HomeWorks, myRoom XC, Quantum, Athena, and Caseta PRO systems or standalone operation
- Choose from 600+ designer fabrics with varied openness factors, colors, and textures to complement any interior design
Low-voltage Class 2, 35 V power supply required (Individual plug-in power supplies, junction box power supplies, or centralized power panel options available)
Supports typical maximum shade size of 20 square feet for windows from 18.5 to 79.5 inches wide, with precise sizing dependent on fabric and height specifications
- The shade system must be mounted to blocking or other suitable structural material.
- Depending on window dimensions, brackets can be mounted in a pocket, inside the window frame, or outside the window frame.
- EDU can be specified on the left or right side of the shade.
- Shade can be regular or reverse roll.
Specifications & Documents
General Specifications
Overall Dimensions
Width (Single Panel): 18.5"-79.5"—varies by fabric and height
Power Options
35V Low Voltage
Control Communication
Lutron QS Wired Lutron QS Wireless (ClearConnect Type A RF technology): 30ft wireless control range
Top treatment
Metal Fascia 2.75" w x 2.75" h
Performance Specifications & Features
Sound Level
Operates at less than 44 dBA at 3ft
Speed
Bottom bar speed: 3.6 in/sec
Precision Control
Intelligent Hembar Alignment (IHA): Shades remain within 1⁄8 in (3 mm) alignment when in motion or stopped
Coupling
No
Natural Light Optimization
Yes, available with HomeWorks and RadioRA 3 and Athena Shade Automation Software for Athena.
Design Specifications
Fabric Options
Sheer, Translucent, Blackout
Fabric Collections
The Classico Collection, The Gallery Collection, The Atelier Collection, The Commercial Collection
Mounting Options
Wall, Ceiling, or Jamb
Hembar Options
Designer Bottom Bar, Sealed Bottom Bar, Half-wrap Architectural Bottom Bar
Finishes
Fascia Metal Finishes: White, Black, Bronze, Silver, custom color
Certifications Specifications
Environmental Rating
Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.
Fabric Standards / Certification Options Available
PVC Free, Fire Rated, Anti-microbial Properties, GREENGUARD Certified, RoHS Compliant, Cradle to Cradle Certified, Lead Free
Environmental Standards / Certifications
Lutron shading solutions and controls can contribute to achieving certifications such as LEED, WELL, and BREEAM.
Regulatory Approvals
cULus listed (E135084) FCC (USA) IC (Canada) CFT (Mexico) CE Mark (European Union) FCC Certified (Hong Kong) UKCA (United Kingdom) NCC (Taiwan) TRA (United Arab Emirates)
Warranty
Eight Year Limited Warranty
