Sivoia Roller 64 Shades – Recessed Single Pocket, 4"
Premium low-voltage roller shade for medium-to-large windows, configured with a 4" recessed pocket.
Configure
Product Details
Overview
Sivoia Roller 64 shades with 4-inch recessed pocket completely disappear into ceiling architecture, concealing the roller mechanism for windows up to 12 feet wide with a typical maximum shade size of 144 square feet. The pocket configuration creates unobstructed views when raised while completely concealing a system that works with over 600 designer fabrics—from sheer to blackout materials. For configurations where wider spans could cause fabric deflection, Width Integrated Deflection Reduction (WIDR) technology uses carbon fiber tubes to prevent sagging and rippling by maintaining consistent fabric tension, with the Lutron Quoting and Ordering Tool precisely calculating when WIDR is required. Operating at an ultra-quiet 35 dBA at 3 feet, these shades incorporate Intelligent Hembar Alignment technology that monitors shade speed hundreds of times per second to synchronize shade positioning within 1/8 inch as bottom bars travel smoothly at 3.6 inches per second. Backed by an 8-year limited warranty and compatible with most Lutron control systems, Sivoia shades unlock Natural Light Optimization technology when paired with HomeWorks and RadioRa 3 systems and Athena Shade Automation Software for Athena system, tracking the sun's movement throughout the day to automatically adjust shade positions and manage glare and heat gain while preserving views and daylight. Photography: Andrea Calo
- Supports typical maximum shade size of 144 square feet for windows from 17.5 to 144 inches wide, with precise sizing dependent on fabric and height specifications
- Patented Intelligent Hembar Alignment technology monitors shade speed hundreds of times per second to maintain alignment within 1/8 inch across all shades
- Ultra-quiet operation below 35 dBA measured 3 feet away creates library-quiet environments
- 35V low-voltage wiring simplifies installation
- Compatible with QS wired and wireless protocols for integration with RadioRA 3, HomeWorks, myRoom XC, Quantum, Athena, and Caseta PRO systems or standalone operation
- Choose from 600+ fabric options with varied colors, textures, and openness factors for complete customization
- The Lutron Quoting and Ordering Tool automatically specifies carbon fiber WIDR tubes when shade width and fabric combinations require deflection prevention
Low-voltage Class 2, 35 V power supply required (Individual plug-in power supplies, junction box power supplies, or centralized power panel options available)
Supports typical maximum shade size of 64 square feet for windows from 17.5 to 144 inches wide, with precise sizing dependent on fabric and height specifications
- The shade system must be mounted to blocking or other suitable structural material.
- Depending on window dimensions, brackets can be mounted in a pocket, inside the window frame, or outside the window frame.
- EDU can be specified on the left or right side of the shade.
- Shade can be regular or reverse roll.
Specifications & Documents
General Specifications
Overall Dimensions
Width (Single Panel): 17.5"-144"—varies by fabric and height
Power Options
35V Low Voltage
Control Communication
Lutron QS Wired
Lutron QS Wireless (ClearConnect Type A RF technology): 30ft wireless control range
Top treatment
Recessed Metal Pocket 4" w x 4" h
Performance Specifications & Features
Sound Level
Operates at less than 35 dBA at 3ft
Speed
Bottom bar speed: 3.6 in/sec
Precision Control
Intelligent Hembar Alignment (IHA): Shades remain within 1⁄8 in (3 mm) alignment when in motion or stopped
Coupling
No
Natural Light Optimization
Yes, available with HomeWorks and RadioRA 3 and Athena Shade Automation Software for Athena.
Design Specifications

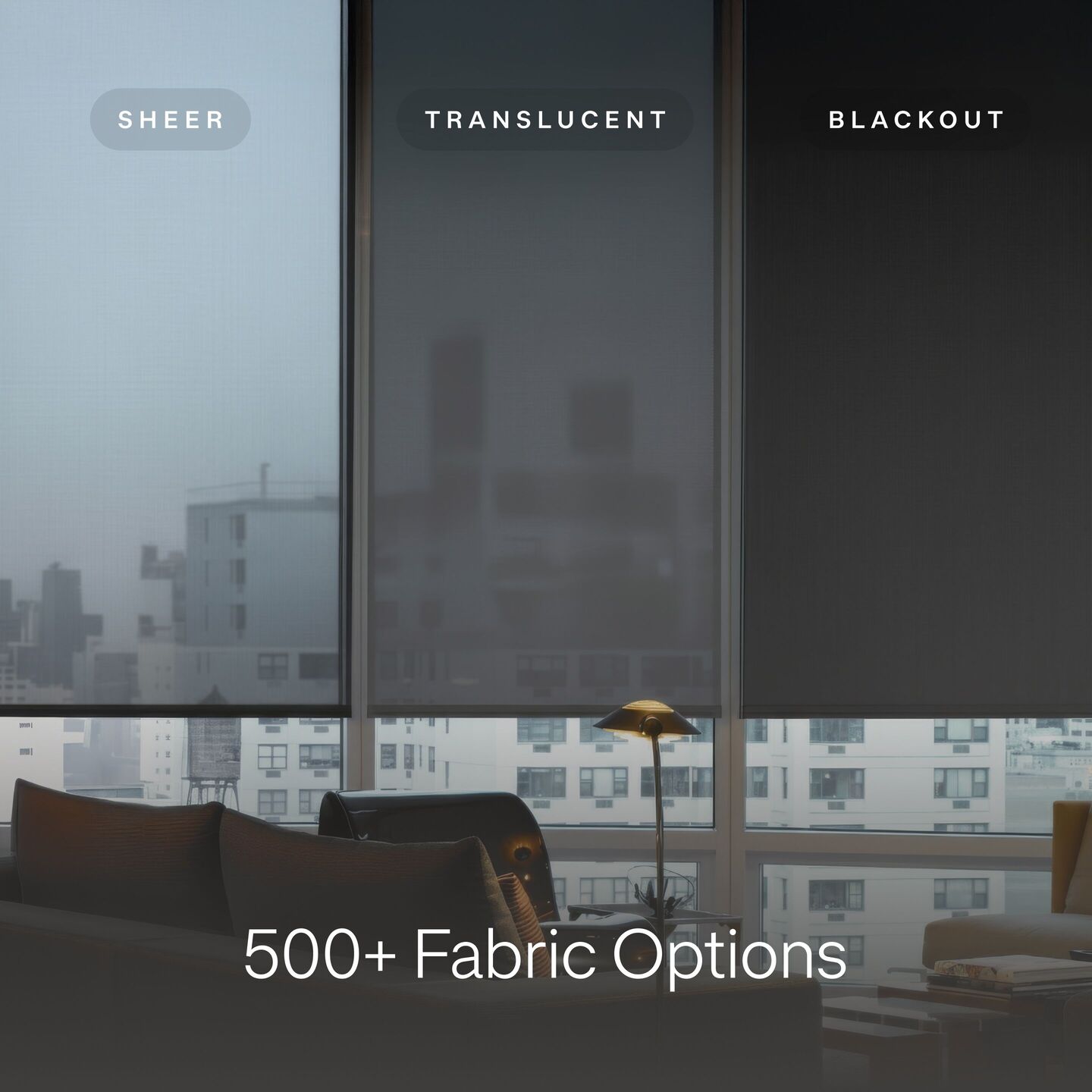

Fabric Options
Sheer, Translucent, Blackout
Fabric Collections
The Classico Collection, The Gallery Collection, The Atelier Collection, The Commercial Collection
Mounting Options
Wall, Ceiling, or Jamb
Hembar Options
Designer Bottom Bar, Sealed Bottom Bar, Half-wrap Architectural Bottom Bar
Finishes
Pocket Metal Finishes: White, Black, Bronze, Silver, custom color
Certifications Specifications
Environmental Rating
Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.
Fabric Standards / Certification Options Available
PVC Free, Fire Rated, Anti-microbial Properties, GREENGUARD Certified, RoHS Compliant, Cradle to Cradle Certified, Lead Free
Environmental Standards / Certifications
Lutron shading solutions and controls can contribute to achieving certifications such as LEED, WELL, and BREEAM.
Regulatory Approvals
cULus listed (E135084)
FCC (USA)
IC (Canada)
CFT (Mexico)
CE Mark (European Union)
FCC Certified (Hong Kong)
UKCA (United Kingdom)
NCC (Taiwan)
TRA (United Arab Emirates)
Warranty
Eight Year Limited Warranty
