Triathlon Wire-Free Honeycomb Shades – Architectural 3/4” Cell

Pro-installed battery-powered architectural honeycomb shades with 3/4" cells and light-blocking headrail design.


Width & Height Range: 21"-96" wide x 12"-104" high
Insulation: 3/4" cell design for enhanced temperature control
Sound Level: Operates at less than 44 dBA at 3ft
Power: Wire-free battery powered (D-cell or AA, 3-5 year life)
Communication: Clear Connect RF wireless technology
Fabric Options: 3/4" light-filtering single-cell and room-darkening single-cell fabrics

Configure

Select Style
Select Power Options

Product Details

Overview
Overview

Triathlon Architectural Honeycomb Shades deliver battery-powered light control for windows from 21 to 96 inches wide and 12 to 104 inches high, with a modernized headrail design featuring a light-blocking top back cover that reduces light creep at the top of the shade. The reimagined design features 3/4-inch cells for an updated look to the classic honeycomb style while maintaining insulating performance that keeps spaces warm in winter and cool in summer, with custom-painted headrail, hembar, and top back cover that coordinate with fabric selection for a polished, uniform appearance and precision-fit construction creating side light gaps as small as 1/8 inch. D-cell or AA batteries provide 3-5 years of reliable operation with industry-leading battery performance, while Tap 'n' Tilt brackets make battery installation and replacement simple, and optional cable-guided configurations prevent swaying on doors or in areas with heavy airflow. Precision motor control maintains accurate bottom rail alignment with 1/8-inch stopping accuracy throughout shade travel. Built-in Clear Connect RF technology enables wireless control via Pico remotes or integration with Caséta, Caséta PRO, RA2 Select, RadioRA 3, and HomeWorks systems, unlocking voice control and automated scheduling through compatible smart home platforms. Backed by an 8-year limited warranty, Triathlon Architectural Honeycomb Shades integrate with Caséta, Caséta PRO, RA2 Select, RadioRA 3, and HomeWorks systems for automated scheduling, remote control, and smart home convenience.

Highlights
  • Accommodates windows from 21 to 96 inches wide and 12 to 104 inches high with 3/4-inch cell construction for a modernized honeycomb aesthetic

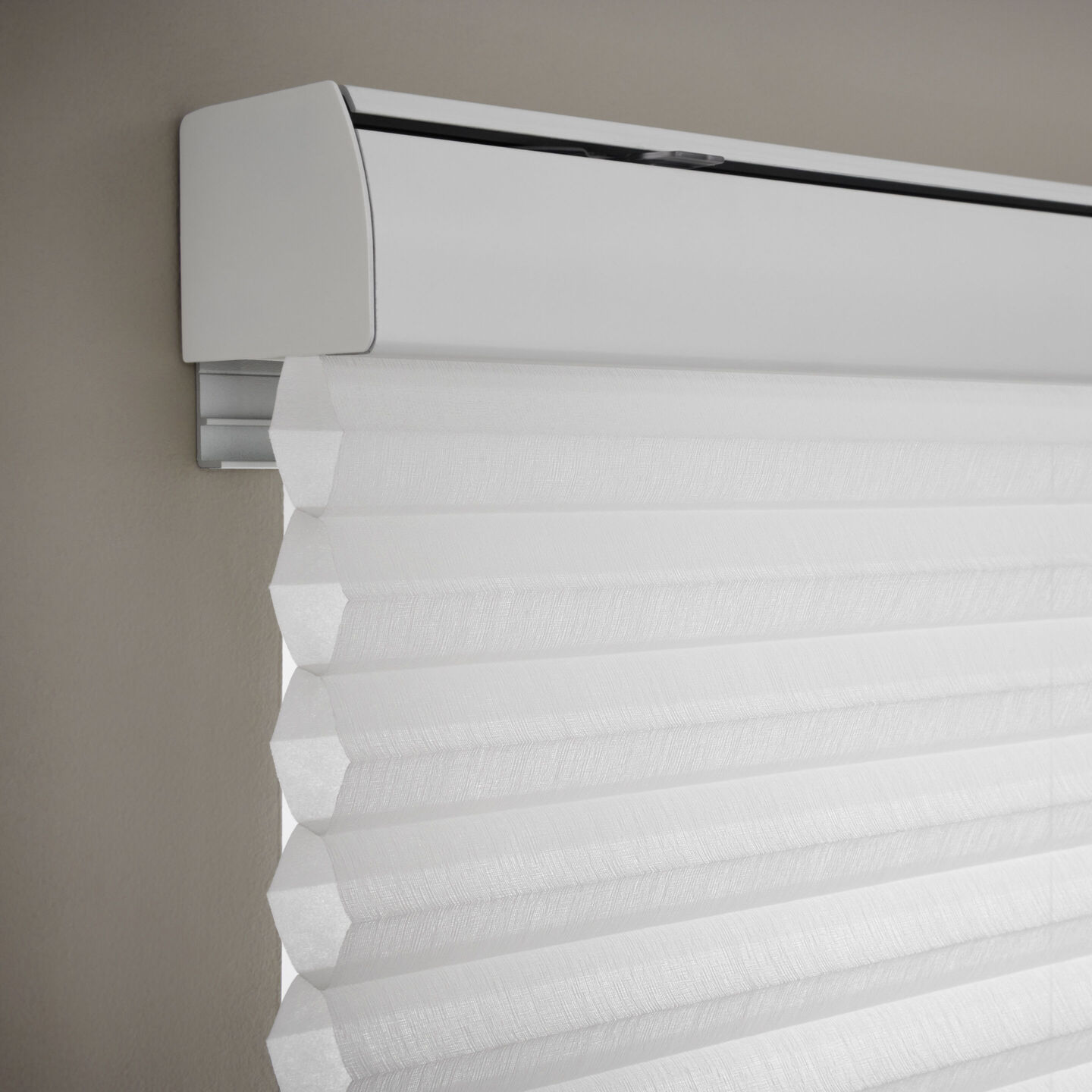

  • Modernized headrail with light-blocking top back cover reduces light creep, with precision-fit construction creating side light gaps as small as 1/8 inch
  • D-cell or AA batteries provide 3-5 years of operation with industry-leading battery performance and Tap 'n' Tilt brackets for easy installation and replacement
  • Custom-painted headrail, hembar, and top back cover coordinate with fabric selection for a polished, uniform appearance
  • Compatible with Caséta, Caséta PRO, RA2 Select, RadioRA 3, and HomeWorks systems with voice control and automated scheduling through compatible smart home platforms
  • Choose from 3/4" light-filtering single-cell and room-darkening single-cell fabrics including full-range neutrals, decorative prints, and rich textures
  • Cable-guided option available to prevent swaying on doors or in areas with heavy airflow
Power Source

1.5 V AA lithium or alkaline D-cell batteries

Minimum Width & Maximum Width

Width & Height Range: 21"-96" wide x 12"-104" high

Dimensions
Triathlon Wire-Free Honeycomb Shades – Architectural 3/4” Cell - Dimensions
Mounting & Installation Highlights
  • Depending on the window dimensions, the shade can be mounted inside the window frame or outside the window frame.
Specifications & Documents
General Specifications

Overall Dimensions

Width & Height Range: 21"-96" wide x 12"-104" high

Power Options

matching 1.5 V AA lithium or alkaline D-cell batteries

Control Communication

Built-in wireless communication using Clear Connect Type A RF technology

Top treatment

Headrail, bottom bar, and top back cover are color coordinated with fabric selection. On battery and wired-power models, the top back cover includes a gray cover plate.

Performance Specifications & Features

Precision Control

Precise drive is capable of stopping at 0.125 in (3 mm) intervals throughout the entire travel of the shade

Design Specifications

Fabric Options

Light-Filtering and Blackout

Fabric Collections

Aspen Collection, Kyoto Collection, Oslo Collection, Madrid Collection, Kyoto Blackout, Madrid Collection

Mounting Options

Depending on the window dimensions, the shade can be mounted inside the window frame or outside the window frame

Hembar Options

Architectural headrail design with light blocking top back cover

Certifications Specifications

Environmental Rating

Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.

Regulatory Approvals

CE UL FCC

Warranty

8 years with registration
