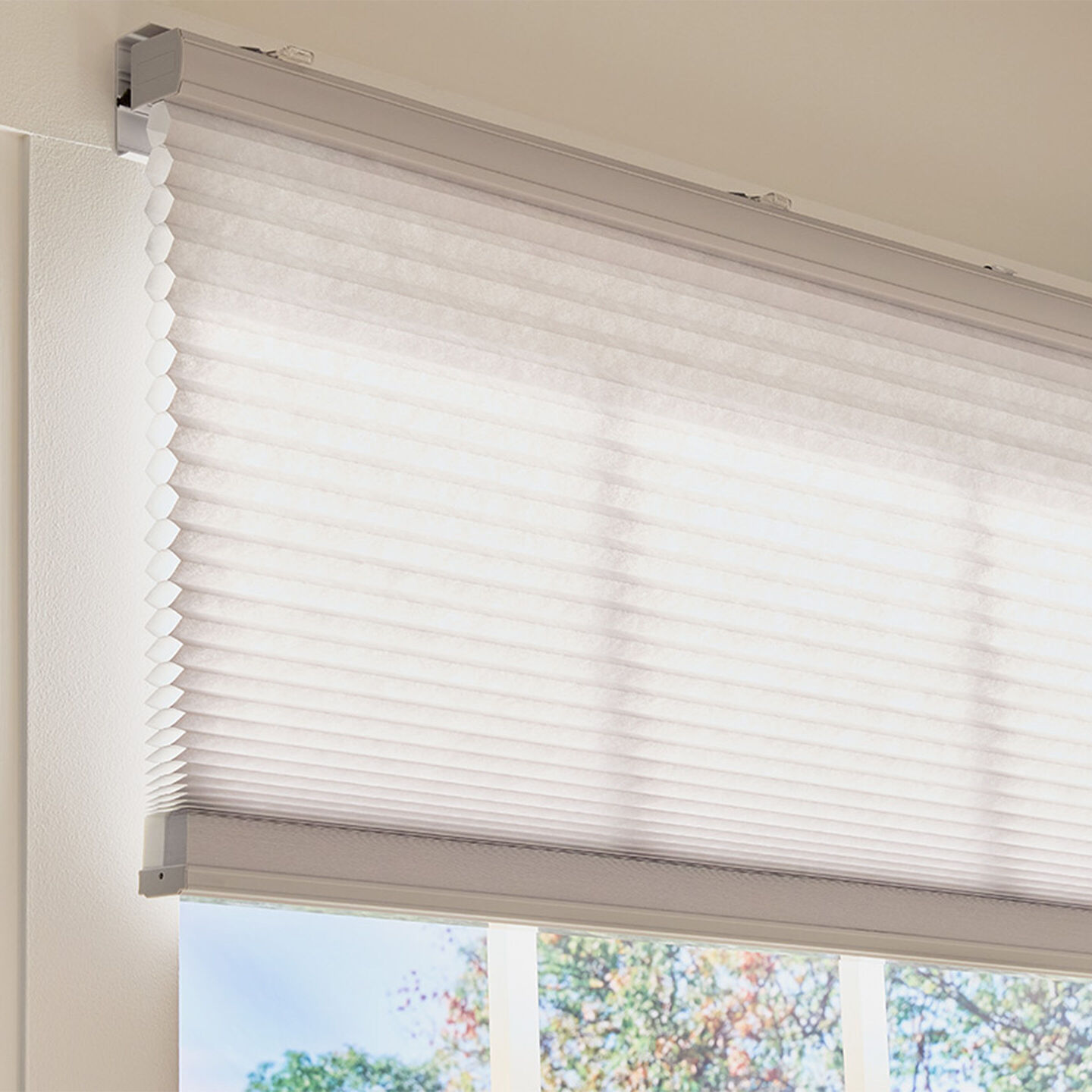

Triathlon Wire-Free Honeycomb Shades – Standard 9/16” Cell

Pro-installed battery-powered honeycomb shades with single- or double-cell insulating design for year-round comfort.


Width & Height Range: 14.5"-96" wide x 12"-96" high
Insulation: Single- and double-cell options for year-round temperature regulation
Sound Level: Operates at less than 44 dBA at 3ft
Power: Wire-free battery powered (D-cell or AA, 3-5 year life)
Communication: Clear Connect RF wireless technology
Fabric Options: Light-filtering single-cell, light-filtering double-cell, and room-darkening single-cell fabrics

Configure

Select Style
Select Power Options

Product Details

Overview
Overview

Triathlon Standard Honeycomb Shades deliver battery-powered light control for windows from 14.5 to 96 inches wide and 12 to 96 inches high, with insulating honeycomb cells that trap air to regulate temperature and reduce energy consumption year-round. Available in single-cell and double-cell configurations, these shades feature a white backing that acts as a reflector to help maintain indoor comfort while giving each room a signature interior look with a uniform white appearance from the outside. D-cell or AA batteries provide 3-5 years of reliable operation with industry-leading battery performance and innovative headrail design for simple battery access and replacement. Precision motor control maintains accurate bottom rail alignment with 1/8-inch stopping accuracy throughout shade travel, and optional cable-guided configurations prevent swaying on doors or in areas with heavy airflow. Built-in Clear Connect RF technology enables wireless control via Pico remotes or integration with Caséta, Caséta PRO, RadioRA 3, and HomeWorks systems, unlocking voice control and automated scheduling through compatible smart home platforms. Backed by an 8-year limited warranty, Triathlon Standard Honeycomb Shades integrate with Caséta, Caséta PRO, RadioRA 3, and HomeWorks systems for automated scheduling, remote control, and smart home convenience.

Highlights
  • Accommodates windows from 14.5 to 96 inches wide and 12 to 96 inches high with single-cell or double-cell insulating fabric construction
  • Insulating honeycomb cells trap air to keep spaces warm in winter and cool in summer with white reflective backing for enhanced energy savings
  • D-cell or AA batteries provide 3-5 years of operation with industry-leading battery performance and easy headrail access for replacement
  • Precision motor control maintains accurate bottom rail alignment with 1/8-inch stopping accuracy throughout shade travel
  • Compatible with Caséta, Caséta PRO, RadioRA 3, and HomeWorks systems with voice control and automated scheduling through compatible smart home platforms
  • Choose from light-filtering single-cell, light-filtering double-cell, and room-darkening single-cell fabrics for customized light control and privacy
  • Cable-guided option available to prevent swaying on doors or in areas with heavy airflow
Power Source

1.5 V AA lithium or alkaline D-cell batteries

Minimum Width & Maximum Width

Width & Height Range: 21"-96" wide x 12"-104" high

Dimensions
Triathlon Wire-Free Honeycomb Shades – Standard 9/16” Cell - Dimensions
Mounting & Installation Highlights
  • Depending on the window dimensions, the shade can be mounted inside the window frame or outside the window frame.
Specifications & Documents
General Specifications

Overall Dimensions

Width & Height Range: 21"-96" wide x 12"-104" high

Power Options

matching 1.5 V AA lithium or alkaline D-cell batteries

Control Communication

Built-in wireless communication using Clear Connect Type A RF technology

Top treatment

Headrail, bottom bar, and top back cover are color coordinated with fabric selection. On battery and wired-power models, the top back cover includes a gray cover plate.

Weight Capacity

Torque: 2.5 in-lb (0.28 N•m)

Performance Specifications & Features

Sound Level

Sound Level: Operates at less than 38 dBA at 3ft

Speed

Speed: 1.8 in/sec

Precision Control

Precise drive is capable of stopping at 0.125 in (3 mm) intervals throughout the entire travel of the shade

Design Specifications

Fabric Options

Light-Filtering and Blackout

Fabric Collections

Aspen Collection, Kyoto Collection, Oslo Collection, Madrid Collection, Kyoto Blackout, Madrid Collection

Mounting Options

Depending on the window dimensions, the shade can be mounted inside the window frame or outside the window frame

Hembar Options

Architectural headrail design with light blocking top back cover

Certifications Specifications

Environmental Rating

Temperature: 32 F to 104˚ F (0 C to 40˚ C). For indoor use only. Relative Humidity: < 90% non-condensing.

Fabric Standards / Certification Options Available

PVC Free, Fire Rated, Anti-microbial Properties, GREENGUARD Certified, RoHS Compliant, Cradle to Cradle Certified, Lead Free

Regulatory Approvals

CE UL FCC

Warranty

8 years with registration
